Overview & Design Features

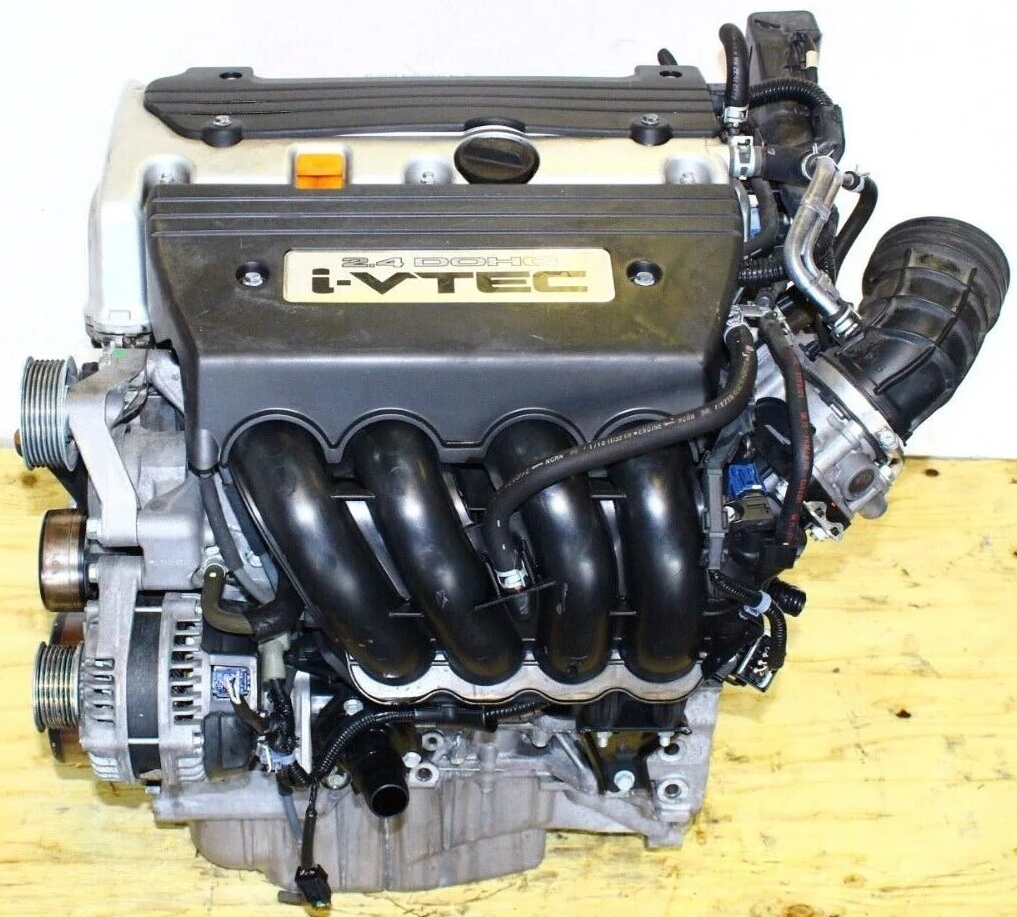

The Acura K24Z3 engine is a prominent member of Honda’s globally renowned K-series family, manufactured by the Honda Motor Company and primarily utilized in Acura models. This naturally aspirated, 2.4-liter (2354 cc) inline four-cylinder engine is celebrated for its blend of robust performance, fuel efficiency, and high reliability, establishing it as a preferred powertrain choice in its segment. Introduced as a refined iteration of the K24 lineage, the Z3 variant specifically focused on delivering a spirited driving experience while meeting stringent emissions standards for its generation.
Engineered with an all-aluminum alloy block and cylinder head, the K24Z3 benefits from a lightweight yet rigid construction. It features a dual overhead camshaft (DOHC) valvetrain with four valves per cylinder, actuated by a maintenance-free timing chain. A key technological highlight is Honda’s intelligent Variable Valve Timing and Lift Electronic Control (i-VTEC) system, which precisely manages both the timing and lift of the intake valves, alongside variable timing for the exhaust camshaft. This advanced system optimizes volumetric efficiency across the entire RPM range, contributing to a broad power band and improved fuel economy. Fuel delivery is handled by a multi-point programmed fuel injection (PGM-FI) system.
The K24Z3 engine was predominantly deployed in the second-generation Acura TSX (CU2 chassis) for the North American market, powering models from 2009 through 2014. It served as the primary engine option for the TSX, offering a compelling balance of performance and efficiency for the sport sedan. While variants of the K24 engine were used across several Honda and Acura vehicles worldwide, the K24Z3 specifically defines the powertrain specifications for these particular TSX models, differentiating it through unique tuning and component specifications optimized for the luxury sport segment.
Technical Specifications
| Displacement (cc) | 2354 |
| Max Power (hp (kW) @ RPM) | 201 hp (150 kW) @ 7000 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 233 Nm (23.8 kg*m) @ 4400 RPM |
| Fuel Type | Premium Unleaded (91+ RON recommended) |
| Fuel Consumption (l/100 km) | ~8.7 (Combined, Manual Transmission, Acura TSX) |
| Engine Type | Inline 4-cylinder, DOHC, i-VTEC |
| Compression Ratio | 11.0:1 |
| Cylinder Bore (mm) | 87 |
| Piston Stroke (mm) | 99 |
| Valvetrain | Chain-driven DOHC, 16-valve, i-VTEC |
| Valves per Cylinder | 4 |
| Additional Info | Aluminum alloy block and cylinder head, cast iron cylinder liners |
Common Problems & Reliability
The K24Z3 engine is generally regarded as highly reliable; however, specific issues can manifest, particularly in higher mileage examples. One common concern is a rattling noise during cold starts, often attributed to a worn VTC (Variable Timing Control) actuator. This issue, while not immediately detrimental, can indicate decreased oil pressure to the actuator or internal wear, and may eventually trigger a check engine light for timing-related codes. Another known characteristic, especially on engines with over 100,000 miles, is a tendency for increased oil consumption. This can be due to worn piston rings or valve stem seals, and while some consumption is normal, excessive rates require monitoring and potentially more intensive repair. Less common, but possible, is premature wear of the exhaust camshaft lobes, often linked to infrequent oil changes or the use of incorrect oil viscosity, leading to a ticking noise and potential loss of performance. With diligent maintenance, the K24Z3 engine can realistically achieve a service life exceeding 250,000 miles (400,000 km) before requiring a major overhaul.
Maintenance Tips & Service Schedule
- Engine Oil: Regular oil changes are paramount for K-series engines. Use a high-quality synthetic 5W-30 engine oil. Adhere to the vehicle’s Maintenance Minder system or change oil every 5,000 to 7,500 miles (8,000-12,000 km), especially if driving in severe conditions.
- Spark Plugs: Replace iridium-tipped spark plugs every 100,000 to 105,000 miles (160,000-169,000 km) to maintain optimal ignition performance and fuel efficiency.
- Timing Chain: The K24Z3 utilizes a timing chain designed for the life of the engine. Regular oil changes are crucial for its longevity. Inspection is typically recommended only if abnormal noises (such as rattling) are present, usually above 150,000 miles (240,000 km).
- Coolant Flush: Replace the Honda Long Life Coolant at the initial interval of 10 years or 120,000 miles (193,000 km), whichever comes first. Subsequent replacements should occur every 5 years or 60,000 miles (96,000 km).
- Valve Adjustment: Inspection of valve clearances is recommended around every 100,000 to 105,000 miles (160,000-169,000 km). Proper valve clearances ensure smooth operation, optimal performance, and prevent premature wear of valvetrain components.
Conclusion
The Acura K24Z3 engine stands as a testament to Honda’s engineering prowess, offering a compelling blend of responsive performance, respectable fuel economy, and exceptional durability. While it has a few characteristic quirks like the VTC actuator noise and potential for oil consumption at high mileage, these are generally manageable with proactive maintenance. For a used vehicle buyer, the K24Z3-powered Acura TSX represents a safe and reliable choice, provided the vehicle has a documented history of consistent maintenance. Its robust design and readily available parts contribute to a low cost of ownership and a long potential service life, making it a highly desirable engine in the pre-owned market.
