Overview & Design Features

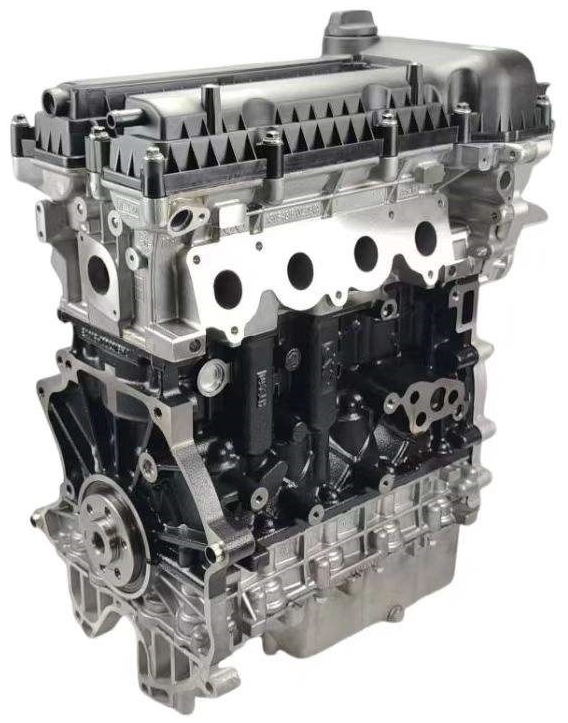

The Chery SQRE4G15C is a naturally aspirated 1.5-liter, inline four-cylinder gasoline engine, part of Chery’s widely utilized Acteco engine family. Developed by the Chinese automaker Chery Automobile Co. Ltd., this engine has served as a foundational powerplant for numerous entry-level and compact vehicles within the Chery lineup and its sub-brands. Renowned for its balance of simplicity, cost-effectiveness, and adequate performance for urban and light highway driving, the SQRE4G15C represents Chery’s commitment to producing reliable and accessible powertrain solutions for mass-market consumption.
Engineered for efficiency and durability, the SQRE4G15C features an all-aluminum alloy construction for both its cylinder block and cylinder head, contributing to a lightweight design that benefits overall vehicle dynamics and fuel economy. It incorporates a Double Overhead Camshaft (DOHC) valvetrain with 16 valves, allowing for optimized airflow into and out of the combustion chambers. A key technology implemented is Variable Valve Timing (VVT) on the intake camshaft, which dynamically adjusts valve overlap to improve torque output across the RPM range and enhance fuel efficiency. Fuel delivery is managed by a multi-point electronic fuel injection (MPI) system, ensuring precise fuel metering and atomization for consistent performance and reduced emissions.
This specific iteration of the 1.5L engine has been widely deployed across various Chery models and their derivatives. Primary vehicle applications include, but are not limited to, the Chery Arrizo 5 and Arrizo 5 Plus sedans, the Chery Tiggo 2 (also known as Tiggo 3x in some markets) compact SUV, and the Chery Cowin X3. Its production span extends across multiple years, typically from the mid-2010s onwards, serving as a standard or base engine option in these vehicles’ respective trims.
Technical Specifications
| Displacement | 1497 cc |
| Max Power | 116 hp (85 kW) @ 6150 RPM |
| Max Torque | 141 Nm (14.4 kg*m) @ 3800 RPM |
| Fuel Type | Gasoline (Unleaded, RON 92 minimum) |
| Fuel Consumption | ~6.1 – 6.5 l/100 km (Combined cycle, vehicle dependent) |
| Engine Type | Inline 4-cylinder, DOHC, Naturally Aspirated |
| Compression Ratio | 10.5:1 |
| Cylinder Bore | 77.5 mm |
| Piston Stroke | 79.5 mm |
| Valvetrain | DOHC, 16-valve, VVT (Intake) |
| Valves per Cylinder | 4 |
| Additional Info | Aluminum alloy block and cylinder head, Multi-Point Electronic Fuel Injection (MPI) |
Common Problems & Reliability
The Chery SQRE4G15C is generally regarded as a robust and straightforward engine, with common issues primarily stemming from either aging components or neglected maintenance rather than inherent design flaws. One frequently reported concern is the potential for minor oil leaks, particularly around the valve cover gasket and oil pan gasket, which can become brittle over time. These are typically inexpensive to repair if addressed promptly. Another area to monitor involves ancillary components such as oxygen sensors or crankshaft position sensors, which may occasionally fail, leading to engine performance issues or warning lights. While not universal, some owners have reported premature wear of the VVT solenoid, potentially impacting idle stability or fuel economy.
Due to its port injection design, carbon buildup on intake valves is less prevalent compared to direct injection engines, but it can still occur gradually with poor fuel quality or extended idle periods. The engine typically employs a timing chain rather than a belt, which contributes to its long-term reliability; however, inspecting the chain and tensioner for noise or excessive slack is advisable at higher mileages. With diligent maintenance, including regular fluid changes and prompt attention to minor issues, the SQRE4G15C can achieve a service life exceeding 200,000 to 250,000 kilometers before requiring a major overhaul.
Maintenance Tips & Service Schedule
- Engine Oil & Filter: Regular oil changes are paramount. It is recommended to replace engine oil and filter every 7,500 to 10,000 kilometers, or every 6 months, whichever comes first. Utilizing a high-quality synthetic or semi-synthetic engine oil with a viscosity rating of 5W-30 or 5W-40 is advised for optimal lubrication and protection across various operating temperatures.
- Spark Plugs: Spark plugs should be inspected and replaced every 30,000 to 40,000 kilometers. Timely replacement ensures efficient combustion, proper fuel economy, and smooth engine operation.
- Air Filter: The engine air filter should be inspected during every service and replaced at least every 20,000 to 30,000 kilometers, or more frequently if operating in dusty conditions, to maintain proper air intake and protect internal components.
- Fuel Filter: The fuel filter replacement interval typically ranges from 40,000 to 60,000 kilometers to prevent fuel delivery issues and injector clogging.
- Coolant: Engine coolant should be flushed and replaced every 2 to 3 years, or 40,000 to 60,000 kilometers, using an ethylene glycol-based coolant suitable for aluminum engines to maintain proper thermal management and prevent corrosion.
- Timing Chain: While designed for the life of the engine, the timing chain and its tensioner should be inspected for excessive noise or wear starting at around 100,000 kilometers and replaced only if issues are detected.
Conclusion
The Chery SQRE4G15C engine stands as a testament to Chery’s capability in producing a reliable, economical, and adequately powerful engine for its target market. Its straightforward design, coupled with proven technologies like VVT and MPI, contributes to a generally dependable ownership experience. For a used vehicle buyer, an SQRE4G15C-equipped car represents a safe choice, provided the vehicle has a documented history of consistent and proper maintenance. Its common issues are typically minor and manageable, making it an engine that, with routine care, can offer many years of trouble-free service. The SQRE4G15C is a practical and robust option for those seeking an unpretentious and cost-effective daily driver.
