Overview & Design Features

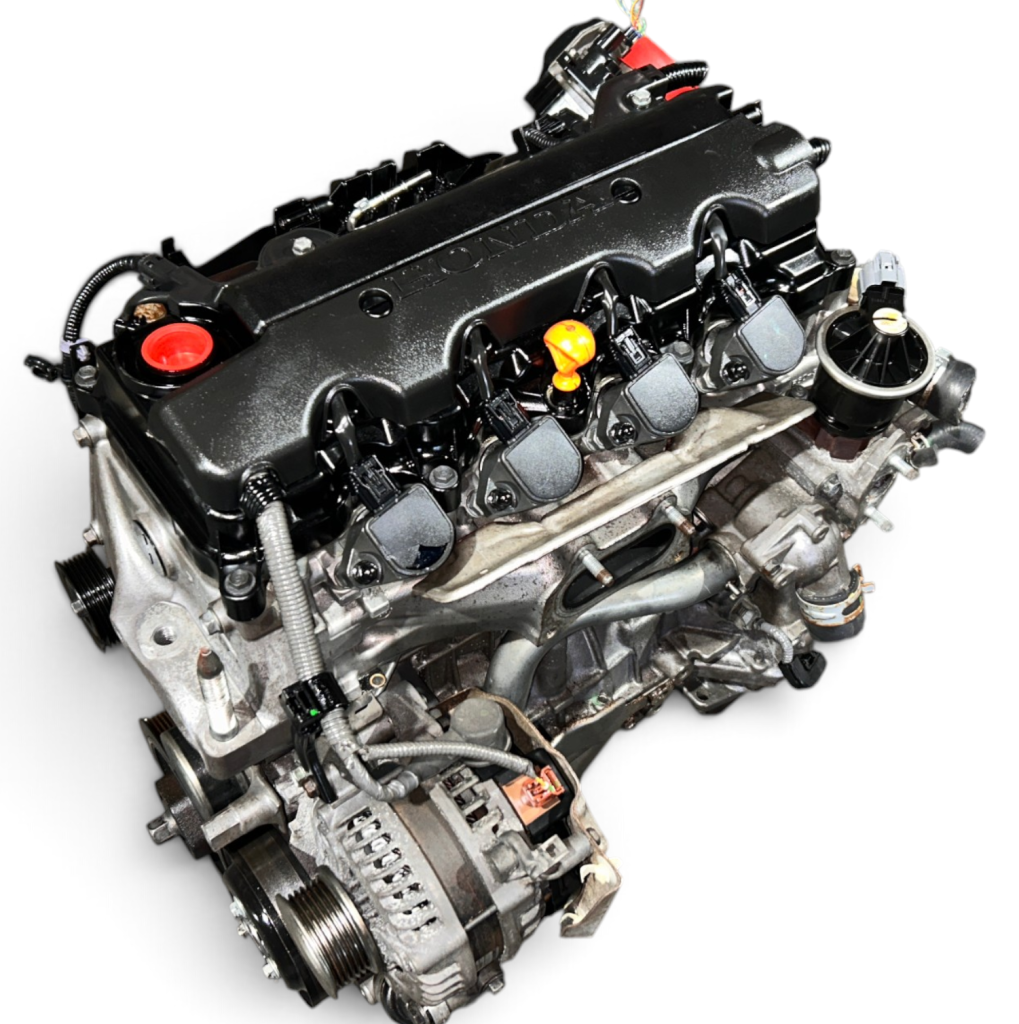

The Acura R20A is an inline four-cylinder engine produced by Honda, known for its balance of fuel efficiency, compact design, and reliable performance. With a displacement of 2.0 liters (1997 cc), this engine belongs to Honda’s “R-series,” which prioritizes low emissions and economical operation. Its historical significance lies in its role as a power unit for various compact and mid-size Acura and Honda vehicles, offering a less performance-oriented but highly practical alternative to more complex K-series engines in certain applications.
Engineered with an all-aluminum cylinder block and cylinder head, the R20A features a single overhead camshaft (SOHC) valvetrain incorporating Honda’s i-VTEC (intelligent Variable Valve Timing and Lift Electronic Control) system, specifically tuned for the intake valves to optimize fuel economy across varying RPMs. It utilizes multi-point Programmed Fuel Injection (PGM-FI), ensuring precise fuel delivery. Key design elements include an offset crankshaft to reduce frictional losses, lightweight pistons, and a drive-by-wire throttle system, all contributing to its efficiency and responsiveness.
The R20A engine was primarily deployed in the Canadian market Acura CSX from 2006 to 2011, serving as its standard powerplant. Beyond Acura, this versatile engine powered several Honda models globally, including the 8th generation Honda Civic (FD/FN chassis) in various international markets, the Honda Stream, and certain versions of the Honda CR-V and Accord.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement | 1997 cc |
| Max Power | 150 hp (110 kW) @ 6200 RPM |
| Max Torque | 190 Nm (19.4 kg*m) @ 4200 RPM |
| Fuel Type | Unleaded Gasoline (RON 91-95) |
| Fuel Consumption (l/100 km) | 7.2 (Combined, varies by vehicle and driving conditions) |
| Engine Type | Inline 4-cylinder, SOHC, i-VTEC |
| Compression Ratio | 10.5:1 |
| Cylinder Bore | 81.0 mm |
| Piston Stroke | 96.9 mm |
| Valvetrain | SOHC |
| Valves per Cylinder | 4 |
| Additional Info | Aluminum block and head, Multi-Point PGM-FI, Drive-by-Wire throttle |
Common Problems & Reliability
The Acura R20A engine is generally regarded as highly reliable. Common issues typically manifest at higher mileages and are often minor. Weak points can include accelerated wear of the original equipment engine mounts, leading to increased vibration. Minor oil leaks from the valve cover gasket or oil pan gasket are also occasionally observed on engines nearing or exceeding 150,000 kilometers. While less common, the VTEC solenoid housing can sometimes develop a minor leak or the screen can clog, impacting valve timing. Under diligent maintenance, the R20A engine exhibits a robust design, capable of exceeding 250,000 to 300,000 kilometers before requiring any major overhaul.
Maintenance Tips & Service Schedule
- Engine Oil: Regular oil changes are crucial. Use 0W-20 or 5W-30 full synthetic oil meeting API SN or SP specifications. Replace every 8,000 to 12,000 kilometers or every 6-12 months, whichever comes first.
- Spark Plugs: Iridium-tipped spark plugs should be replaced every 100,000 kilometers to maintain optimal ignition and fuel efficiency.
- Timing Chain: The R20A utilizes a maintenance-free timing chain. Inspection is recommended around 200,000 kilometers, primarily to check for any abnormal noise indicating tensioner or chain wear, though replacement is rarely needed.
- Coolant: Utilize Honda Type 2 long-life coolant. A complete system flush and refill is recommended every 200,000 kilometers or 10 years.
- Valve Clearance: While not as critical as some earlier Honda engines, an inspection of valve clearances is advisable around 100,000 kilometers, followed by adjustment if necessary.
Conclusion
The Acura R20A engine represents a highly reliable and economical choice for a used vehicle buyer. Its robust construction, proven Honda engineering, and SOHC i-VTEC system contribute to excellent long-term durability and sensible fuel consumption. With consistent adherence to the manufacturer’s recommended service intervals and proper fluid specifications, the R20A is a dependable powerplant that can provide many years of trouble-free operation, making vehicles equipped with this engine a safe and sound investment in the used car market.
