Overview & Design Features

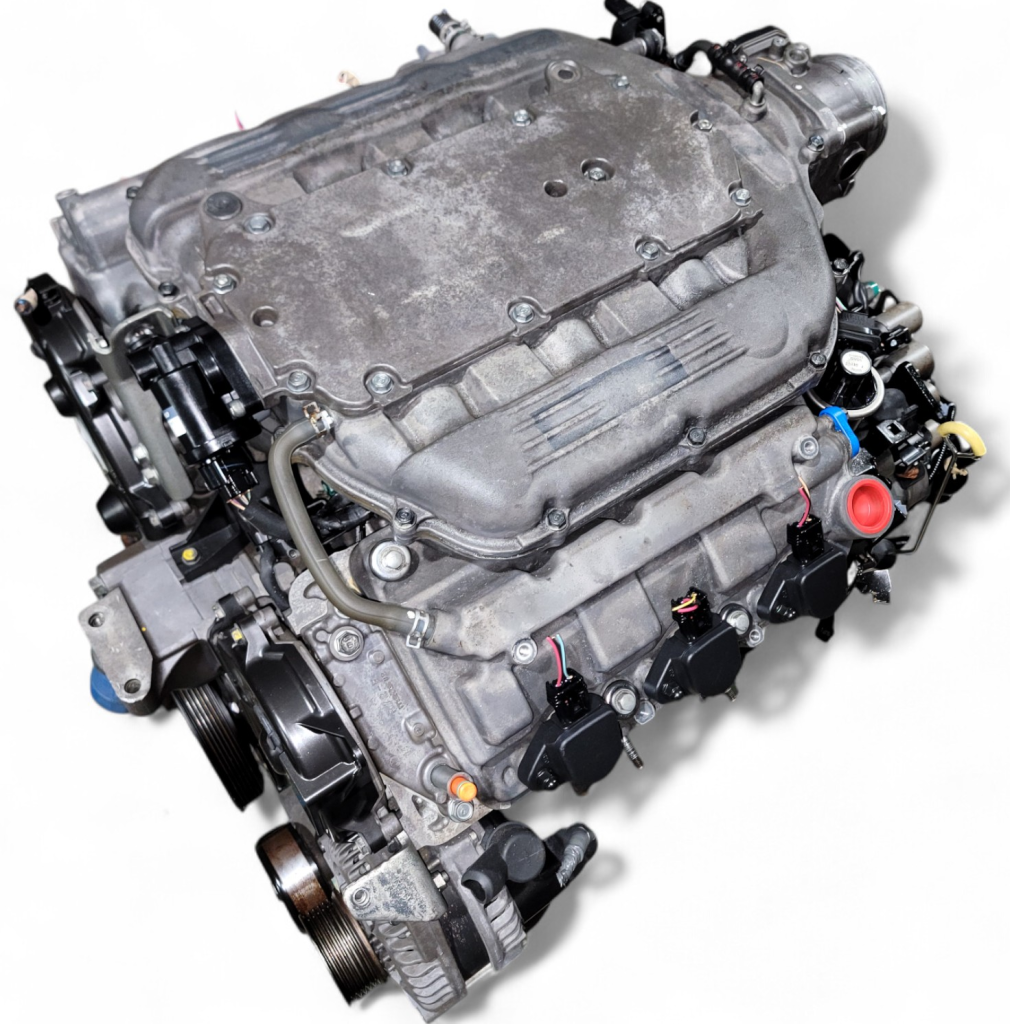

The Acura J37A4 is a 3.7-liter (3664 cc) naturally aspirated V6 engine, a significant iteration within Honda’s acclaimed J-series family. Manufactured by Acura, a luxury division of Honda, this engine debuted in the late 2000s and represented the highest displacement production variant of the J-series V6 at its introduction. It is renowned for its robust construction, smooth power delivery, and sophisticated blend of performance and daily drivability, upholding the J-series reputation for reliability and refinement.
Engineered for performance and durability, the J37A4 features an all-aluminum construction, comprising a lightweight die-cast aluminum block and aluminum cylinder heads. It employs a Single Overhead Camshaft (SOHC) design for each cylinder bank, with four valves per cylinder, totaling 24 valves. A hallmark of Honda engineering, the J37A4 incorporates the Variable Valve Timing and Lift Electronic Control (VTEC) system, specifically applied to the intake valves, to optimize power output and fuel efficiency across the RPM range. Fuel delivery is managed by a multi-point electronic fuel injection (PFI) system, complemented by a drive-by-wire throttle for precise control.
The J37A4 engine was primarily deployed in the 4th generation Acura TL SH-AWD (Super Handling All-Wheel Drive) models, produced from 2009 to 2014. It served as the top-tier powerplant for this performance-oriented sedan, emphasizing dynamic driving characteristics and advanced all-wheel-drive capability within the Acura lineup.
Technical Specifications
| Displacement (cc) | 3664 |
| Max Power (hp (kW) @ RPM) | 305 (227) @ 6300 |
| Max Torque (Nm (kg*m) @ RPM) | 370 (37.7) @ 5000 |
| Fuel Type | Premium Unleaded (91+ octane recommended) |
| Fuel Consumption (l/100 km) | ~11.8 (combined) |
| Engine Type | Naturally Aspirated V6, SOHC |
| Compression Ratio | 11.2:1 |
| Cylinder Bore (mm) | 90.0 |
| Piston Stroke (mm) | 96.0 |
| Valvetrain | SOHC, 24-valve (4 per cylinder), VTEC (intake) |
| Valves per Cylinder | 4 |
| Additional Info | Aluminum alloy block and heads, drive-by-wire, timing belt driven |
Common Problems & Reliability
The J37A4, while generally reliable, exhibits a few common characteristics and potential issues that owners should monitor. A notable concern involves increased oil consumption, particularly in earlier production years. This issue has been linked to piston ring design and can necessitate more frequent oil level checks and top-offs. Acura addressed this with a technical service bulletin (TSB) and extended warranty for some affected vehicles. Another point of attention is the timing belt service. As a belt-driven engine, regular replacement of the timing belt, water pump, and tensioner is critical at the manufacturer-specified intervals; failure to do so can result in catastrophic engine damage. Additionally, leaks from the power steering pump and occasional issues with the VTEC solenoid (leading to oil leaks or VTEC disengagement) are also reported, though less frequently. With diligent maintenance and addressing these known issues, the J37A4 engine typically demonstrates an impressive service life, often exceeding 250,000 miles (400,000 km) before requiring a major overhaul.
Maintenance Tips & Service Schedule
Proper maintenance is paramount for the longevity and performance of the J37A4 engine. Adherence to a strict service schedule is essential:
- Engine Oil: Synthetic 5W-20 or 0W-20 oil, API certified, should be changed every 5,000-7,500 miles (8,000-12,000 km) or every 6 months, whichever comes first. Regular oil level checks are advised due to potential oil consumption.
- Spark Plugs: Iridium-tipped spark plugs should be replaced every 100,000-105,000 miles (160,000-170,000 km).
- Timing Belt Service: This is a critical service, required every 105,000 miles (170,000 km) or 7 years. The service should include the replacement of the timing belt, water pump, and tensioner pulley to prevent potential failure.
- Coolant Flush: Engine coolant should be flushed and replaced every 5 years or 120,000 miles (190,000 km).
- Valve Clearance: While not typically a frequent service item, valve clearance should be inspected if excessive valvetrain noise is present, and adjusted if necessary, using screw-type adjusters.
Conclusion
The Acura J37A4 stands as a testament to Honda’s engineering prowess, offering a powerful, refined, and largely reliable V6 engine. For a used vehicle buyer, it represents a sound choice, provided there is a clear service history indicating adherence to timing belt replacement and awareness of potential oil consumption. With proper and diligent maintenance, including proactive monitoring of fluid levels and timely servicing, the J37A4 can deliver many years and miles of satisfying, robust performance.
