Overview & Design Features

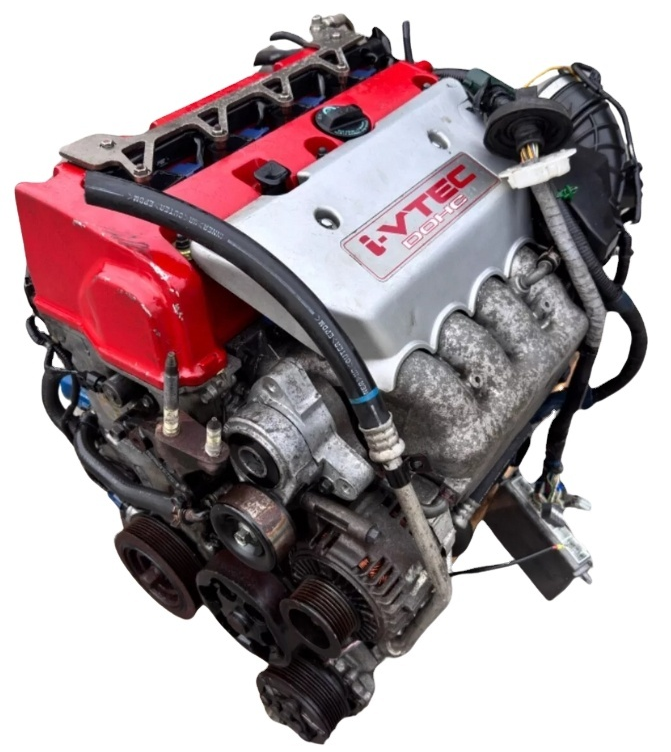

The Acura K20Z1 is a high-performance 2.0-liter (1998 cc) inline-four cylinder engine, meticulously engineered by Honda for its premium Acura division. Recognized for its exceptional power delivery, robust construction, and advanced VTEC technology, the K20Z1 represents a pinnacle of naturally aspirated four-cylinder performance during its production era. It built upon the strong foundation of the K-series engine family, specifically tailored for a more aggressive power curve and improved responsiveness.
Core engineering features of the K20Z1 include an all-aluminum cylinder block and cylinder head, contributing to its lightweight yet rigid structure. The engine utilizes Honda’s renowned i-VTEC (intelligent Variable Valve Timing and Lift Electronic Control) system, which precisely manages valve timing on both intake and exhaust camshafts, along with valve lift for the intake, to optimize power and torque across the entire RPM range. Fuel delivery is handled by Honda’s multi-point Programmed Fuel Injection (PGM-FI), ensuring efficient and precise fuel atomization. A silent-chain timing drive system provides durable and maintenance-free operation for the valvetrain.
This specific K20Z1 engine variant was primarily deployed in the North American market in the 2005-2006 Acura RSX Type-S models. It was the performance flagship engine for the RSX lineup, distinguishing the Type-S trim with its higher power output and more aggressive tuning compared to other K-series engines found in the standard RSX models or other Honda vehicles.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement | 1998 cc |
| Max Power | 210 hp (154 kW) @ 7800 RPM |
| Max Torque | 194 Nm (19.8 kg*m) @ 7000 RPM |
| Fuel Type | Premium Unleaded (91+ RON recommended) |
| Fuel Consumption (combined) | ~9.8 l/100 km |
| Engine Type | Inline 4-cylinder, DOHC i-VTEC |
| Compression Ratio | 11.0:1 |
| Cylinder Bore | 86 mm |
| Piston Stroke | 86 mm |
| Valvetrain | DOHC, Chain-driven, i-VTEC (intake valve lift, intake/exhaust cam timing) |
| Valves per Cylinder | 4 (16 valves total) |
| Additional Info | Forged crankshaft, cast aluminum pistons, oil cooler, electronic throttle control |
Common Problems & Reliability
The Acura K20Z1 is widely regarded for its exceptional reliability and robust construction, a testament to Honda’s engineering principles. However, like any performance engine, it exhibits a few specific characteristics or potential issues at higher mileages or under extreme conditions:
- Oil Consumption: At higher mileages, some K20Z1 engines may exhibit increased oil consumption. This is typically attributed to worn piston rings or valve stem seals. Regular monitoring of oil levels and timely top-offs are crucial. Addressing severe consumption usually requires rebuilding the engine bottom end or head.
- Timing Chain Tensioner Wear: While the timing chain itself is highly durable, the hydraulic timing chain tensioner can wear out over extended periods or if oil change intervals are neglected. A failing tensioner can lead to a rattling noise from the timing cover area, especially on cold starts, indicating a loss of chain tension. Prompt replacement of the tensioner prevents potential timing chain slack and catastrophic engine damage.
- VTEC Solenoid Screen Clogging: The screens within the VTEC solenoid can become clogged with oil sludge or debris if oil changes are infrequent. This can impede oil pressure to the VTEC mechanism, causing the VTEC system to not engage properly, resulting in a noticeable loss of power at higher RPMs. Regular maintenance and the use of high-quality engine oil largely mitigate this issue.
With diligent maintenance and proper care, the K20Z1 engine is known to achieve a service life exceeding 200,000 miles (320,000 km) before requiring a major overhaul.
Maintenance Tips & Service Schedule
Maintaining the K20Z1 engine correctly is crucial for preserving its performance and extending its lifespan. Adherence to a strict service schedule and the use of specified fluids are paramount:
- Engine Oil: Perform oil and filter changes every 5,000 miles (8,000 km) or every 6 months, whichever comes first. Use a high-quality synthetic 5W-30 engine oil to ensure optimal lubrication and VTEC system operation.
- Spark Plugs: Replace iridium spark plugs every 60,000 to 100,000 miles (96,000 to 160,000 km) to maintain ignition efficiency and fuel economy.
- Timing Chain: The timing chain itself is designed for the life of the engine. However, the timing chain tensioner should be inspected for noise or malfunction around 100,000 miles (160,000 km) and replaced if any rattling is detected.
- Coolant: Flush and replace engine coolant every 5 years or 60,000 miles (96,000 km) using Honda Type 2 Long-Life Coolant, or an equivalent propylene glycol-based coolant.
- Valve Lash Adjustment: Due to its mechanical valvetrain, regular valve clearance inspection and adjustment are recommended every 100,000 miles (160,000 km) to prevent premature wear and maintain engine performance.
- Air Filter: Inspect and replace the engine air filter as necessary, typically every 15,000-30,000 miles (24,000-48,000 km), depending on driving conditions.
Conclusion
The Acura K20Z1 engine stands as a highly desirable and reliable choice for enthusiasts and used vehicle buyers. Its robust construction, sophisticated i-VTEC system, and potent naturally aspirated performance contribute to an engaging driving experience. While minor issues like increased oil consumption or timing chain tensioner wear can manifest at higher mileages, these are generally manageable and do not detract from the engine’s overall reputation for longevity and durability. With a documented history of consistent maintenance and appropriate care, a K20Z1-equipped vehicle represents a sound investment for those seeking a durable, high-revving, and exciting powertrain.
