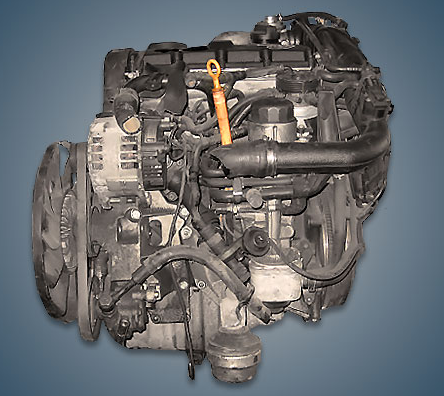

From 1998 to 2001, the company assembled the 1.9-liter 8-valve Audi AJM 1.9 TDI engine, which was fitted on well-known company models like the A4 B5, A6 C5, Golf 4, and Passat B5. Both longitudinal and transverse installations of this diesel power unit were made on vehicles.
The EA188-1.9 series also includes: AJM, ASZ, AUY, AVB, AVF, AWX, AXB, AXC, BKC, BLS, BXE.
Specifications
| Production years | 1998-2001 |
| Displacement, cc | 1896 |
| Fuel system | unit-injectors |
| Power output, hp | 115 |
| Torque output, Nm | 285 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 79.5 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 18.0 |
| Features | SOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 3.6 |
| Fuel type | diesel |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Audi A4 2000) — city — highway — combined |
6.9 4.3 5.2 |
| Engine lifespan, km | ~300 000 |
The engine was installed on:
- Audi A4 B5 (8D) in 1999 – 2001;
- Audi A6 C5 (4B) in 1998 – 2001;
- Volkswagen Bora 1 (1J) in 1998 – 2001;
- Volkswagen Golf 4 (1J) in 1999 – 2001;
- Volkswagen Passat B5 (3B) in 1999 – 2000.
Disadvantages of the Audi AJM engine
This diesel engine’s resource is dependent on the lubricant quality, and it cannot handle low-quality oil;
Hydraulic lifters and camshaft lobes deteriorate due to bad oil;
The turbine’s wedge geometry is typically the cause of the motor’s unstable operation;
Here, the unit-injectors’ single bolt fastening may come loose, causing leaks;
Additionally, the network frequently talks about tandem pump malfunctions.
