Overview & Design Features

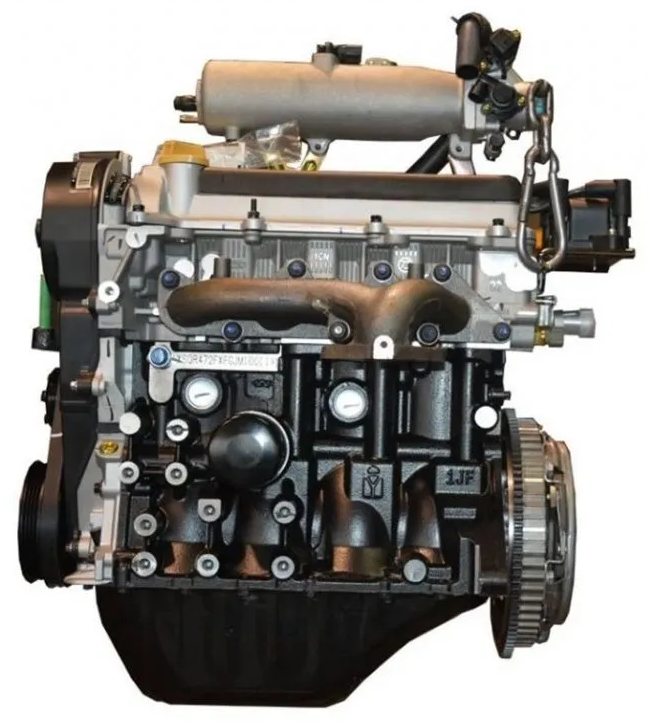

The Chery SQR472 engine is a naturally aspirated, small-displacement inline-four petrol engine developed by the Chinese automotive manufacturer Chery Automobile. Introduced in the mid-2000s, this engine was designed to power Chery’s highly popular superminis and compact city cars. With a displacement of approximately 1.1 liters, the power plant played a pivotal role in establishing the brand’s presence in international markets by offering a balance of compact packaging, mechanical simplicity, and affordable manufacturing costs.
Architecturally, the SQR472 features a robust cast-iron cylinder block for enhanced structural durability and thermal stability under prolonged urban loads. It is paired with an aluminum alloy cylinder head to reduce overall weight and improve heat dissipation. Unlike more complex modern engines, it utilizes a reliable Multi-Point Fuel Injection (MPFI) system rather than direct injection, which inherently reduces carbon buildup on the intake valves. The valvetrain consists of a Double Overhead Camshaft (DOHC) configuration operating 16 valves, optimizing gas exchange without the added complexity of variable valve timing (VVT) systems in its base iterations.
This engine was most notably deployed in the first-generation Chery QQ3 (from 2006 to 2015), the Chery A1 (also known as the Chery Kimo in export markets from 2007 to 2014), and the Riich M1 hatchback. It was typically mated to a five-speed manual transmission or an automated manual transmission (AMT), serving economy-minded drivers in urban environments across Asia, South America, and Eastern Europe.
Technical Specifications
| Displacement (cc) | 1083 cc |
| Max Power (hp (kW) @ RPM) | 68 hp (50 kW) @ 6000 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 90 Nm (9.2 kg*m) @ 3500-4000 RPM |
| Fuel Type | Petrol (92 RON or higher) |
| Fuel Consumption (l/100 km) | Approximately 6.0 l/100 km (combined cycle) |
| Engine Type | Inline-4 cylinder, 4-stroke, naturally aspirated |
| Compression Ratio | 9.5:1 |
| Cylinder Bore (mm) | 72 mm |
| Piston Stroke (mm) | 66.5 mm |
| Valvetrain | DOHC (Double Overhead Camshaft) |
| Valves per Cylinder | 4 (16 valves total) |
| Additional Info | Liquid-cooled, naturally aspirated, belt-driven valvetrain |
Common Problems & Reliability
Despite its simple architecture, the Chery SQR472 has several documented mechanical weak points that owners should monitor closely:
- Timing Belt and Tensioner Wear: This power plant utilizes an interference design. A premature failure of the timing belt or the tensioner pulley will cause the pistons to strike the valves, resulting in catastrophic internal engine damage. Regular inspections are mandatory.
- Cooling System Vulnerability: The plastic components within the cooling system, including the thermostat housing and coolant pipe connectors, are prone to becoming brittle and cracking over time. If a coolant leak occurs, the engine is highly susceptible to rapid overheating, which frequently leads to a warped cylinder head or a blown head gasket.
- Sensors and Idle Control Issues: The electronic Idle Air Control (IAC) valve and the Manifold Absolute Pressure (MAP) sensor often experience carbon contamination. This results in rough idling, engine stalling at low RPMs, and fluctuating power delivery.
Under proper maintenance and care, the realistic expected service life of the Chery SQR472 engine is approximately 180,000 to 220,000 kilometers before requiring a major mechanical overhaul.
Maintenance Tips & Service Schedule
To ensure maximum longevity and prevent premature failure of key components, a strict preventative maintenance schedule must be followed:
- Engine Oil Changes: Replace the engine oil and oil filter every 7,500 kilometers or 6 months, whichever occurs first. A high-quality semi-synthetic or full synthetic oil with a viscosity rating of 5W-30 (for moderate climates) or 5W-40 (for warmer regions) is highly recommended.
- Timing Belt Replacement: Due to the interference nature of the valvetrain, the timing belt, along with its tensioner pulley and the water pump, must be replaced strictly every 60,000 kilometers.
- Ignition System: Standard copper-core spark plugs should be inspected and replaced every 20,000 to 30,000 kilometers to maintain efficient combustion and prevent coil pack strain.
- Cooling System Service: Perform a comprehensive coolant flush and replace the thermostat every 40,000 kilometers or 2 years to prevent overheating issues and scale buildup inside the block.
Conclusion
The Chery SQR472 engine is a basic, economical, and highly repairable power plant. For a used car buyer, it represents a reasonable choice, provided that the previous owner documented a consistent maintenance history. Because of the critical risk of catastrophic timing belt failure and head gasket warping from overheating, buying a vehicle with this engine without proof of timing belt and cooling system maintenance is highly discouraged. If these areas have been well-maintained, the SQR472 remains a highly cost-effective and simple engine to run.
