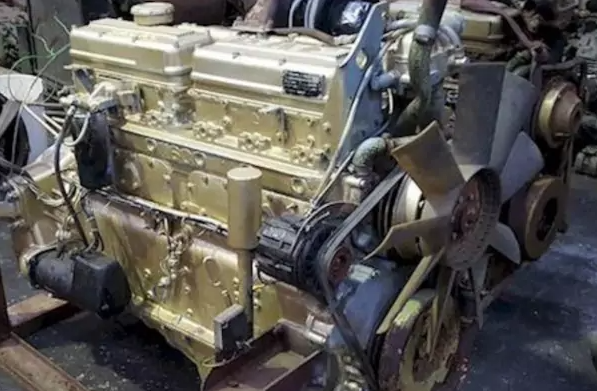

The six-cylinder, in-line, water-cooled DAF 1160 diesel engines have an 11.6-liter working area. An excellent in-line injection pump is used in the fuel system.
From 1974 until 1999, the DAF 1160 was manufactured. DAF obtained the license to use the Leyland 0.680 base engine during development. The engine size and power were increased by the manufacturer; depending on the configuration, the initial DKA 1160 models had between 165 and 230 horsepower.
A more potent DKS 1160 engine with a turbocharging system was created a few years later. The unit’s power could be increased without increasing the engine size thanks to this system. The performance with 228 horsepower (310 kW) was the most well-liked.
The manufacturing of horizontal engines for outdoor use in buses and transportation vehicles started a year later. They had 186 horsepower (252 kW) of power.
Specifications
| Manufacturer | DAF |
| Also called | DKX 1160 |
| Configuration | 4 Stroke Water Cooled Diesel Engine |
| Number of cylinders | 6 |
| Valves | 12 |
| Compression ratio | 15:1 |
| Piston stroke, mm | 146 |
| Cylinder bore, mm | 130 |
| Displacement, cc | 11600 |
| Power output, hp | 330 |
| Fuel system | inline injection pump |
| Configuration | R6 |
| Timing drive type | OHV |
| Main bearings | 7 |
| Camshaft drive | toothed gear |
These engines, which are still present in some cars today, have demonstrated their best qualities.
Popular Mods
DAF DKV1160 with a power of 212kW (280HP). Produced 5/1983 – 9/1991. For DAF F2800, F2805, F3300, F3305, F3325, F3603, F3605, F3625.
DAF DKVL1160 206kW (280HP). Produced 1/1973 – 12/1989. For DAF MB200, MB205, MB230.
DAF DKX1160 with a power of 243kW (330HP). Produced 6/1981 – 9/1991. For DAF F3300, F3305, F3325, N3300.
DAF DKX1160ATI 260 kW (354 HP). Produced 6/1985 – 9/1991. For DAF F3300, F3305, F3325, N3300.
DAF DKXE1160 with a power of 212kW (280HP). Produced 1/1984. For DAF F3305, F3325, F3603, F3605, F3625.
DAF DKXE1160ATI 206-212KW (280-288HP). Produced 6/1985 – 9/1991. For DAF F2605, F2800.
