Overview & Design Features

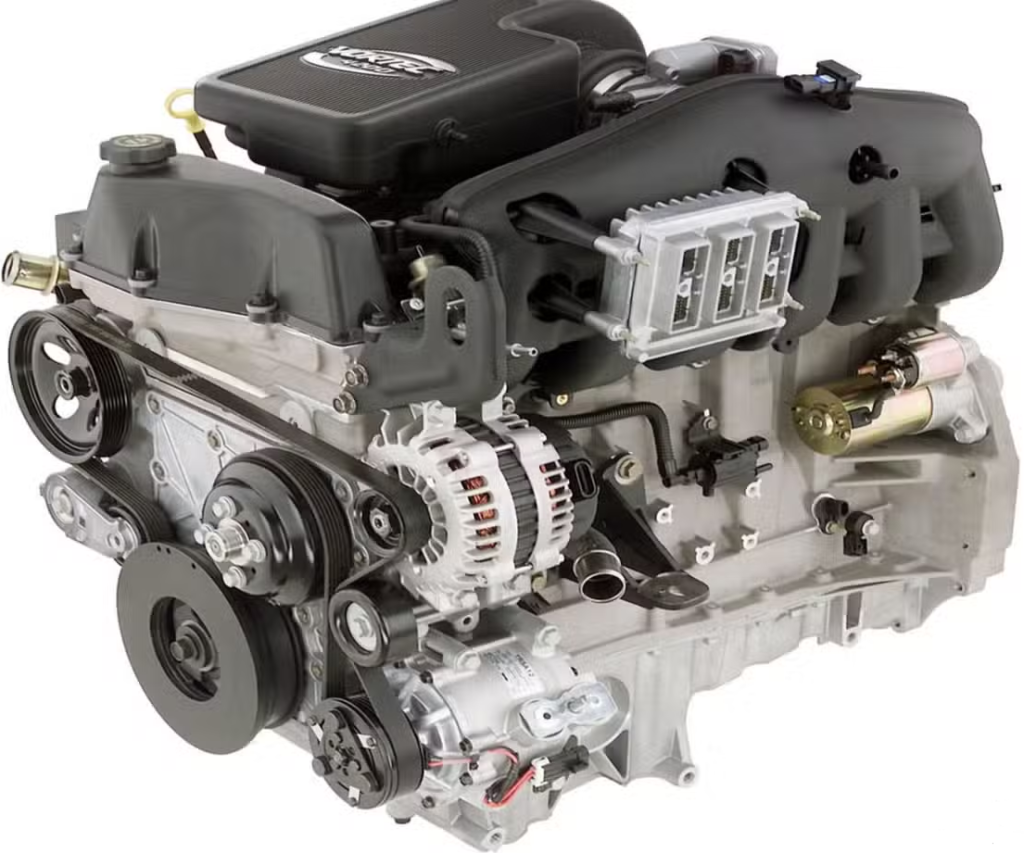

The GMC LL8, widely recognized as the Vortec 4200, represents a significant inline-six engine offering from General Motors, part of the Atlas engine family. Introduced in 2002, this engine features a 4.2-liter (4160 cc) displacement and was a flagship powertrain for GM’s mid-size SUV and truck platforms. The LL8 was designed to deliver a smooth, powerful, and fuel-efficient alternative to V8 engines in its class, combining the inherent balance of an inline-six configuration with modern engine management technologies.
Engineered for performance and durability, the LL8 features an aluminum cylinder block and a dual overhead camshaft (DOHC) aluminum cylinder head, contributing to its relatively light weight and efficient heat dissipation. Fuel delivery is managed by a Sequential Multi-Port Fuel Injection (SMPI) system, ensuring precise fuel metering. A notable technological inclusion is Variable Valve Timing (VVT) on the exhaust camshaft, optimizing exhaust gas scavenging and enhancing both low-end torque and high-end power while simultaneously improving emissions performance.
Throughout its production run from 2002 to 2009, the LL8 engine was primarily deployed across a range of General Motors’ GMT360 platform vehicles. Key models utilizing this engine include the Chevrolet TrailBlazer, GMC Envoy, Oldsmobile Bravada, Buick Rainier, Isuzu Ascender, and the Saab 9-7X. It served as the standard engine for most trims of these vehicles, distinguishing itself as a robust and capable powertrain solution.
Technical Specifications
| Displacement (cc) | 4160 |
| Max Power (hp (kW) @ RPM) | 291 (217) @ 6000 |
| Max Torque (Nm (kg*m) @ RPM) | 376 (38.3) @ 4800 |
| Fuel Type | Gasoline (87 RON) |
| Fuel Consumption (l/100 km) | ~13.1 (Combined, specific to vehicle/drive cycle) |
| Engine Type | Inline 6-cylinder, DOHC, 24-valve |
| Compression Ratio | 10.0:1 |
| Cylinder Bore (mm) | 93.0 |
| Piston Stroke (mm) | 102.0 |
| Valvetrain | Dual Overhead Camshaft (DOHC) |
| Valves per Cylinder | 4 |
| Additional Info | Aluminum Block & Head, Sequential Multi-Port Fuel Injection (SMPI), Exhaust Variable Valve Timing (VVT) |
Common Problems & Reliability
The GMC LL8 engine is generally considered a reliable powertrain, capable of delivering a long service life with proper maintenance. However, certain common issues have been identified over its operational history. One frequent concern involves the ignition coils and spark plugs. Individual coil-on-plug units can fail, leading to misfires, rough idle, and reduced engine performance. Regular replacement of spark plugs, typically every 100,000 miles, is crucial, and replacing faulty coils as they arise is a standard repair.
Another prevalent issue is the failure of the exhaust Variable Valve Timing (VVT) actuator solenoid. This component can become clogged with oil sludge or simply fail electronically, resulting in erratic idle, poor fuel economy, a check engine light, and occasionally reduced power. Symptoms often manifest around the 100,000 to 150,000-mile mark. Lastly, exhaust manifold cracks are not uncommon due to the high heat cycles the engine undergoes. These cracks typically lead to an audible exhaust leak, especially noticeable when the engine is cold, and can trigger catalyst inefficiency codes if severe enough.
Despite these known points of failure, the LL8 engine is robustly engineered. With diligent maintenance, including consistent oil changes and addressing known issues promptly, it is realistic to expect a service life exceeding 200,000 miles (approximately 320,000 km) before any major internal overhaul becomes necessary.
Maintenance Tips & Service Schedule
To ensure the longevity and optimal performance of the GMC LL8 engine, adherence to a proactive maintenance schedule is paramount. For engine oil and filter changes, it is recommended to use a high-quality synthetic blend or full synthetic 5W-30 motor oil every 5,000 to 7,500 miles (8,000 to 12,000 km), or as indicated by the vehicle’s oil life monitoring system. Consistent oil quality is crucial for VVT system health.
Spark plugs, specifically iridium-tipped types, should be replaced approximately every 100,000 miles (160,000 km). While the LL8 utilizes a timing chain system designed for the life of the engine, it is advisable to inspect for excessive noise or stretch at high mileages, particularly beyond 150,000 miles. The engine air filter requires inspection annually and replacement every 30,000 miles (48,000 km) or sooner in dusty conditions.
Coolant flushes and replacements should follow the manufacturer’s specification for DEX-COOL extended-life coolant, typically every 5 years or 100,000 miles (160,000 km). Regular inspection of drive belts and hoses, along with ensuring the PCV system is functioning correctly, will also contribute significantly to the engine’s overall health and efficiency.
Conclusion
The GMC LL8 Vortec 4200 engine stands as a testament to GM’s engineering capabilities, offering a compelling blend of power, smoothness, and efficiency in an inline-six package. Its robust construction and proven design make it a generally reliable choice for a used vehicle buyer. While prospective owners should be aware of potential issues with ignition coils, VVT solenoids, and exhaust manifolds, these are typically manageable repairs and do not detract significantly from the engine’s overall durability. With a history of consistent and proper maintenance, vehicles equipped with the LL8 engine can provide many more miles of dependable service, making it a sound investment in the used car market.
