Overview & Design Features

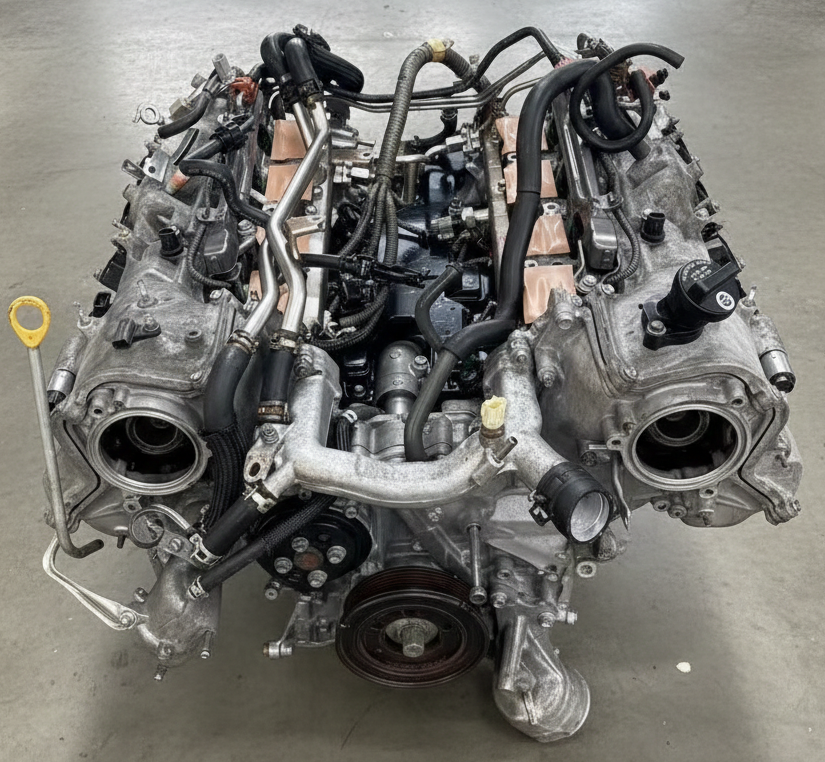

The Lexus 1UR-FSE engine is a high-performance, naturally aspirated 4.6-liter (4608 cc) 90-degree V8 gasoline engine, developed by Toyota for its premium Lexus division. Introduced in 2006, the 1UR-FSE was part of the UR engine family, succeeding the venerable UZ series. It was engineered to deliver a blend of refined power, exceptional smoothness, and robust reliability, primarily for flagship luxury sedans.
Key engineering features of the 1UR-FSE include an all-aluminum alloy cylinder block and cylinder heads, providing optimal strength-to-weight ratio and heat dissipation. It utilizes Lexus’s advanced D-4S fuel injection system, which combines both direct injection into the combustion chamber and traditional port injection. This innovative system optimizes fuel delivery across the RPM range for improved power, efficiency, and reduced emissions. Further enhancing its performance and efficiency is the Dual VVT-i (Variable Valve Timing with intelligence) system, which continuously adjusts intake and exhaust valve timing.
The 1UR-FSE engine was prominently deployed in several high-end Lexus models. Its primary applications include the Lexus LS 460 (USF40, USF41, USF45, USF46) from 2006 to 2017, and the Lexus GS 460 (URS190) produced between 2007 and 2011. It also powered the Toyota Crown Majesta (URS206) in certain markets, notably Japan, from 2009 to 2013, solidifying its role in Lexus and Toyota’s premium vehicle offerings.
Technical Specifications
| Displacement | 4608 cc |
| Max Power | 380 hp (283 kW) @ 6400 RPM (RWD variant) |
| Max Torque | 493 Nm (50.3 kg*m) @ 4100 RPM (RWD variant) |
| Fuel Type | Premium Unleaded Gasoline (91+ RON) |
| Fuel Consumption | Approx. 11.8 l/100 km (combined, varies by vehicle and conditions) |
| Engine Type | 90-degree V8, Naturally Aspirated |
| Compression Ratio | 11.8:1 |
| Cylinder Bore | 94 mm |
| Piston Stroke | 82.7 mm |
| Valvetrain | DOHC (Dual Overhead Camshaft) |
| Valves per Cylinder | 4 (32 valves total) |
| Additional Info | Dual VVT-i, D-4S Fuel Injection (Direct + Port), Aluminum Block & Heads |
Common Problems & Reliability
The Lexus 1UR-FSE engine generally boasts excellent reliability, characteristic of Toyota’s engineering philosophy. However, certain issues can emerge, particularly at higher mileages.
One notable concern for D-4S engines, though less severe than pure direct injection units, is the potential for carbon buildup on the intake valves. While port injection helps mitigate this by washing the valves, prolonged short-distance driving or infrequent oil changes can contribute to deposits, potentially affecting engine breathing and performance over time.
Another area of potential wear involves the VVT-i actuators. At higher mileages, some units may develop a rattling noise, especially during cold starts, indicating wear within the hydraulic advance mechanisms. While often not immediately critical, it can be an indicator for future replacement.
Additionally, as with many engines, the water pump is a common wear item, with leaks often appearing between 100,000 to 150,000 miles (160,000 to 240,000 km). Early detection and replacement prevent overheating. Oil leaks, typically from valve cover gaskets or front timing cover seals, may also manifest on engines exceeding 150,000 miles (240,000 km).
With diligent maintenance, the 1UR-FSE engine is capable of achieving an impressive service life, often exceeding 250,000 to 300,000 miles (400,000 to 480,000 km) before requiring any major overhaul.
Maintenance Tips & Service Schedule
Maintaining the 1UR-FSE engine according to manufacturer specifications is crucial for its longevity and optimal performance.
- Engine Oil: Synthetic engine oil, typically 0W-20 or 5W-20, should be replaced every 10,000 miles (16,000 km) or 12 months, whichever comes first. Regular oil analysis can help monitor engine health.
- Oil Filter: Replace with every oil change.
- Spark Plugs: Iridium-tipped spark plugs require replacement every 60,000-80,000 miles (96,000-128,000 km) to maintain ignition efficiency.
- Air Filter: Inspect annually and replace every 30,000 miles (48,000 km) or as conditions demand.
- Coolant: Utilize Toyota Super Long Life Coolant (SLLC). The initial coolant change is typically recommended at 100,000 miles (160,000 km) or 10 years, followed by subsequent changes every 50,000 miles (80,000 km) or 5 years.
- Fuel System Cleaning: While D-4S mitigates carbon buildup, periodic use of a quality fuel system cleaner (added to the fuel tank) can assist in maintaining injector and intake valve cleanliness. For higher mileage engines exhibiting symptoms, professional intake valve cleaning may be considered.
- Timing Chain: The 1UR-FSE utilizes a robust timing chain system designed to last the life of the engine and does not require periodic replacement.
Conclusion
The Lexus 1UR-FSE engine stands as a testament to Lexus’s commitment to luxury, performance, and durability. Its advanced D-4S fuel injection and Dual VVT-i systems provide a sophisticated driving experience with ample power and respectable efficiency for its class. For a used vehicle buyer, the 1UR-FSE is generally considered a highly reliable and safe choice, provided the vehicle has a documented history of consistent maintenance. Its robust design and engineering allow for extended service life, making it a sound investment for those seeking a premium V8 engine that prioritizes refinement and enduring quality.
