Overview & Design Features

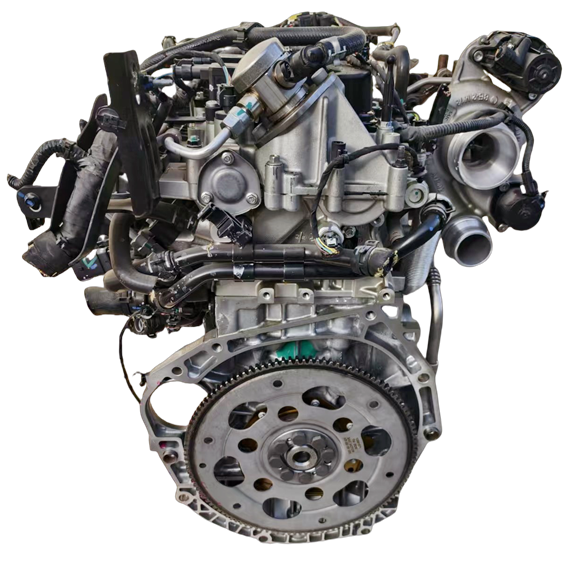

The MG 20A4E engine is a 2.0-liter turbocharged inline-four gasoline engine developed by SAIC Motor, the parent company of MG Motor. Introduced as part of SAIC’s NetBlue powertrain family, this engine represents a significant step forward in Chinese-engineered premium powerplants designed to meet international standards. It is engineered to deliver high torque at low engine speeds while maintaining competitive thermal efficiency, serving as a flagship powerplant for MG’s larger sport utility vehicles and performance-oriented crossovers.
Technically, the 20A4E features an all-aluminum alloy construction for both the cylinder block and the cylinder head, which minimizes front-axle weight and improves overall vehicle handling dynamics. It utilizes a high-pressure Gasoline Direct Injection (GDI) system to optimize fuel atomization, enhancing combustion efficiency and reducing tailpipe emissions. To achieve a broad and responsive torque curve, the engine is equipped with a twin-scroll turbocharger and a Dual Variable Valve Timing (D-VVT) system, allowing precise control over both intake and exhaust valve overlapping.
This engine has been primarily deployed in mid-sized and flagship vehicles under the SAIC umbrella. Notable applications include the MG HS, specifically the 2.0T Trophy variants produced from 2018 onwards, and the first-generation MG GS 2.0T models from 2015 to 2019. It also powers several premium vehicles from sister brands, such as the Roewe RX5 and RX8. It is typically paired with a six-speed wet dual-clutch transmission (DCT) to efficiently manage the engine’s high torque output.
Technical Specifications
| Specification Parameter | Factory Value / Description |
|---|---|
| Displacement (cc) | 1995 cc |
| Max Power (hp (kW) @ RPM) | 220 hp (162 kW) @ 5000–5300 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 350 Nm (35.7 kg*m) @ 2500–4000 RPM |
| Fuel Type | Gasoline (95 RON / Premium Unleaded) |
| Fuel Consumption (l/100 km) | 8.2 – 8.6 liters per 100 km (combined cycle) |
| Engine Type | Turbocharged Inline-4 Cylinder (SAIC NetBlue MGE) |
| Compression Ratio | 10.0:1 |
| Cylinder Bore (mm) | 88.0 mm |
| Piston Stroke (mm) | 82.0 mm |
| Valvetrain | DOHC (Double Overhead Camshaft), Chain Drive |
| Valves per Cylinder | 4 (16 valves total) |
| Additional Info | Equipped with a twin-scroll turbocharger, dual VVT, and start-stop technology. |
Common Problems & Reliability
The 20A4E has earned a reputation for solid structural integrity, though it exhibits specific vulnerabilities common to modern direct-injection turbocharged powerplants. The most prevalent issue is carbon accumulation on the intake valves. Because the direct injection system sprays fuel directly into the combustion chamber rather than over the intake valves, the cleaning effect of gasoline is lost, leading to carbon buildup that can restrict airflow, cause rough idling, and reduce engine performance over time.
Another area requiring attention is the timing chain assembly. While designed to last the lifetime of the engine, the timing chain and its hydraulic tensioner can suffer from premature wear or stretching if oil change intervals are neglected or if low-quality lubricants are used. Additionally, minor issues such as coolant leaks near the turbocharger feed lines and sensor malfunctions (specifically boost pressure sensors) have been documented. With proper maintenance, a realistic expected service life for the MG 20A4E engine is between 200,000 and 250,000 kilometers before a major mechanical overhaul becomes necessary.
Maintenance Tips & Service Schedule
To maximize the longevity and performance of this turbocharged engine, a strict maintenance regimen must be followed:
- Oil Changes: Use only high-quality fully synthetic engine oil meeting API SN/SP or ACEA C3 specifications. The recommended viscosity is 5W-30 or 0W-30. Oil and filter changes must be performed every 7,500 to 10,000 kilometers or once a year, whichever comes first.
- Spark Plugs: Replace the high-performance iridium spark plugs every 40,000 kilometers. The elevated thermal stresses of a turbocharged combustion chamber accelerate spark plug wear.
- Cooling System: Inspect the cooling system for leaks regularly and perform a complete coolant flush every 60,000 kilometers or 3 years to ensure the turbocharger cooling circuit remains unobstructed.
- Intake Valve Cleaning: To combat carbon buildup, a professional chemical intake tract cleaning or walnut-blasting service is recommended every 60,000 kilometers.
Conclusion
The MG 20A4E engine is a modern, capable, and reasonably efficient powerplant that offers competitive performance within its class. For a used vehicle buyer, this engine represents a safe choice, provided there is verifiable proof of consistent maintenance. Prospective buyers must prioritize vehicles with documented oil changes and clean diagnostic reports to ensure that common issues like carbon buildup or timing chain wear do not turn into costly repairs.
