Overview & Design Features

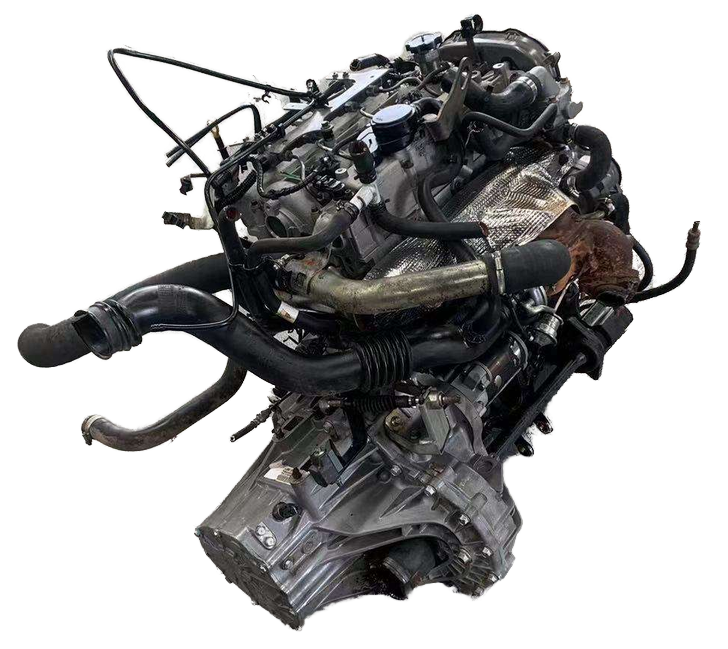

The MG SC25TA is a 2.5-liter, inline-four, turbocharged common-rail diesel engine developed under the automotive giant SAIC Motor. This engine is prominent within SAIC’s utility vehicle lineup, utilized across brands like MG and Maxus. Originating from a licensing agreement involving VM Motori technology, this power unit represents a robust blend of European engineering and modern manufacturing, designed specifically to meet the high-torque demands of pickup trucks and commercial vans.
Structurally, the SC25TA features a cast-iron cylinder block for maximum structural rigidity under high combustion pressures, paired with a lightweight aluminum alloy cylinder head to optimize heat dissipation. The valvetrain consists of a double overhead camshaft (DOHC) layout operating four valves per cylinder. Fuel delivery is managed by an advanced Bosch common-rail high-pressure direct injection system, which works in tandem with an intercooled turbocharger. This setup ensures precise fuel atomization, improved thermal efficiency, and reduced emissions in compliance with international standards.
Primarily deployed in light commercial and utility vehicles, the SC25TA engine has found its way into several key models under the SAIC umbrella. This includes the MG Extender utility pickup sold in specific ASEAN markets, along with the Maxus T60 mid-size pickup truck and the Maxus V80 commercial passenger van. Production of this engine family spans from the mid-2010s to the early 2020s, serving as a workhorse powertrain for commercial fleets and private buyers requiring dependable towing capacity.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 2499 cc |
| Max Power (hp (kW) @ RPM) | 136 hp (100 kW) @ 3800 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 330 Nm (33.6 kg*m) @ 1800–2800 RPM |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Approximately 7.5 – 8.5 l/100 km (combined cycle) |
| Engine Type | Inline-4, Turbocharged Diesel |
| Compression Ratio | 17.5:1 |
| Cylinder Bore (mm) | 92.0 mm |
| Piston Stroke (mm) | 94.0 mm |
| Valvetrain | DOHC, belt-driven |
| Valves per Cylinder | 4 |
| Additional Info | Equipped with Bosch common-rail system and variable geometry turbocharger |
Common Problems & Reliability
- Carbon Buildup: A prevalent issue with the SC25TA is the accumulation of carbon deposits within the Exhaust Gas Recirculation (EGR) valve and intake manifold. This buildup is typical of modern emission-controlled diesel engines and can lead to rough idling, loss of power, and increased exhaust smoke.
- Fuel Injector Sensitivity: The Bosch fuel injectors are highly sensitive to fuel contamination. Utilizing low-quality or water-contaminated diesel fuel can cause premature injector wear, resulting in hard starting, rough running conditions, or severe engine misfires.
- Timing Belt Failures: Unlike some modern utility engines that utilize a timing chain, the SC25TA relies on a timing belt system. If the timing belt or its associated tensioners are neglected and fail, catastrophic valve-to-piston contact will occur, resulting in severe cylinder head damage.
With diligent maintenance and the consistent use of premium fuel and lubricants, the SC25TA is capable of achieving a realistic expected service life of 250,000 to 300,000 kilometers before requiring a major mechanical overhaul.
Maintenance Tips & Service Schedule
- Engine Oil Changes: Engine oil should be replaced every 10,000 kilometers or 12 months, whichever comes first. To protect the turbocharger bearings and internal components, high-quality synthetic diesel engine oil conforming to API CJ-4 or CK-4 standards with a viscosity of 5W-40 or 10W-40 should be used.
- Fuel Filter Replacement: The fuel filter plays a vital role in protecting the high-pressure common-rail system and must be replaced every 20,000 kilometers to prevent injector damage.
- Timing Belt Service: Given that this is an interference engine design, the timing belt and tensioners must be replaced strictly every 80,000 to 100,000 kilometers.
- Cooling System Care: The cooling system should be flushed and refilled with high-grade ethylene glycol coolant every 60,000 kilometers to prevent localized cylinder head overheating, which can lead to head gasket failure.
Conclusion
In conclusion, the MG SC25TA engine represents a solid, torque-rich power unit that performs admirably under heavy loads. For a used vehicle buyer, it stands as a relatively safe and reliable choice, provided that the vehicle’s service history verifies consistent oil changes, regular fuel filter replacements, and timely timing belt servicing. Neglected units can become highly expensive to repair, but a well-maintained SC25TA offers excellent durability and commercial-grade utility.
