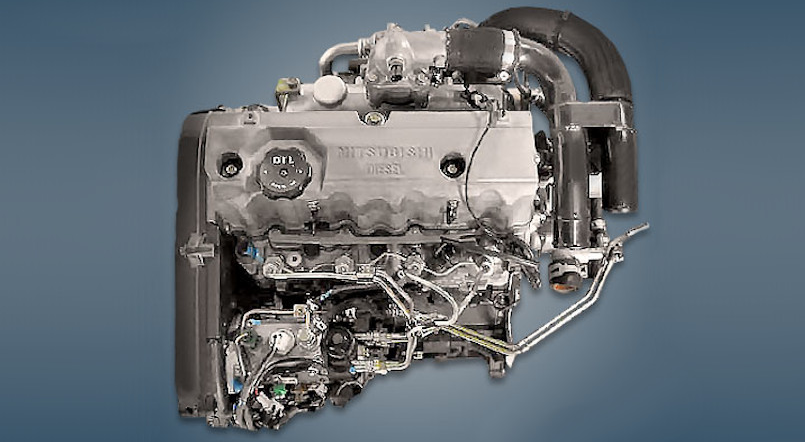

From 1991 to 2002, the company produced the 2.0-liter Mitsubishi 4D68 diesel engine, which was installed on several of the company’s well-known passenger car models, including the Lancer, Colt, and Galant. There were atmospheric and turbocharged versions of this power unit.
The 4D65 engine is another member of the 4D6 family.
The engine was mounted on:
- Mitsubishi Colt 4 (CA) in 1991 – 1995;
- Mitsubishi Colt 5 (CJ) in 1995 – 2002;
- Mitsubishi Lancer 4 in 1991 – 1995;
- Mitsubishi Lancer 5 in 1995 – 1999;
- Mitsubishi Galant 7 (E5) in 1992 – 1998;
- Mitsubishi Galant 8 (EA) in 1996 – 2000;
- Proton Wira 1 in 1995 – 2000.
Specifications
| Production years | 1991-2002 |
| Displacement, cc | 1998 |
| Fuel system | prechambers |
| Power output, hp | 68 (4D68 Non-Turbo) 90 (4D68T Turbo) |
| Torque output, Nm | 123 (4D68 Non-Turbo) 191 – 202 (4D68T Turbo) |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 82.7 |
| Piston stroke, mm | 93 |
| Compression ratio | 22.4 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no yes |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 5.1 |
| Fuel type | diesel |
| Euro standards | EURO 2 (4D68 Non-Turbo) EURO 3 (4D68T Turbo) |
| Fuel consumption, L/100 km (for Mitsubishi Galant 1998) — city — highway — combined |
9.3 5.7 7.0 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 170 |
Disadvantages of the Mitsubishi 4D68 engine
This diesel engine is well-known for having frequent oil leaks and being unreliable;
Due to its limited resources, the turbine may need to be replaced after 100,000 kilometers;
At 50,000 kilometers, the balance shaft belt frequently breaks, endangering the engine;
Additionally, the EGR valve quickly gets clogged with soot, the crankshaft pulley frequently cracks, and many owners experience cracked head blocks on high mileage.
