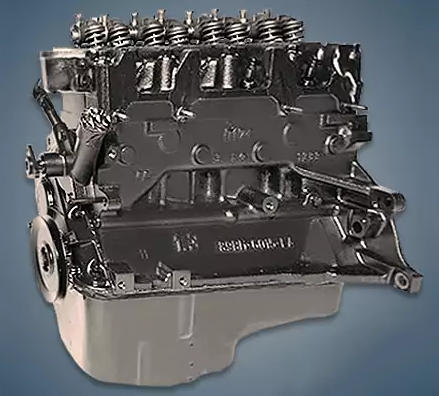

From 1969 to 1992, the company’s factories produced the 1.6-liter Mitsubishi 4G32 engine, which was fitted to its most well-known models, including the Galant, Lancer, Tredia, and Cordia. Numerous modifications were made to this unit, including a sports DOHC version.
The 4G33 and 4G37 engines are also part of the 4G3 family.
The engine was mounted on:
- Mitsubishi Galant A50, Galant A110, Galant A120, Galant A160, Galant E10, Galant E30;
- Mitsubishi Lancer A70, Lancer A140, Lancer A170, Lancer CV, Lancer CA;
- Mitsubishi Celeste;
- Mitsubishi Cordia;
- Mitsubishi Tredia;
- Mitsubishi Sapporo A120, Sapporo A160;
- Hyundai Pony;
- Hyundai Stellar.
Specifications
| Production years | 1969-1992 |
| Displacement, cc | 1597 |
| Fuel system | carburetor (4G32 carburetor) injector (4G32T Turbo) injector (4G32B ECI-multi) |
| Power output, hp | 65 – 85 (4G32 carburetor) 120 (4G32T Turbo) 80 – 90 (4G32B ECI-multi) |
| Torque output, Nm | 115 – 135 (4G32 carburetor) 172 (4G32T Turbo) 125 – 140 (4G32B ECI-multi) |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 76.9 |
| Piston stroke, mm | 86 |
| Compression ratio | 8.5 – 9.0 (4G32 carburetor) 7.6 (4G32T Turbo) 9.0 – 9.5 (4G32B ECI-multi) |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no (4G32 carburetor) yes (4G32T Turbo) no (4G32B ECI-multi) |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 3.5 |
| Fuel type | petrol |
| Euro standards | EURO 0 (4G32 carburetor) EURO 0 (4G32T Turbo) EURO 1/2 (4G32B ECI-multi) |
| Fuel consumption, L/100 km (for Mitsubishi Galant 1985) — city — highway — combined |
10.1 5.9 7.8 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 130 |
Disadvantages of the Mitsubishi 4G32 engine
The carburetor found in the majority of engine models has enough issues;
Both the timing belt and the balance shaft belt have limited resources;
Oil, which continuously pours onto the belts from gaskets and seals, makes this possible;
Here, the fuel pump in the gas tank and the power unit supports also serve a brief purpose;
The valve needs to be adjusted every 50,000 kilometers because there are no hydraulic lifters.
