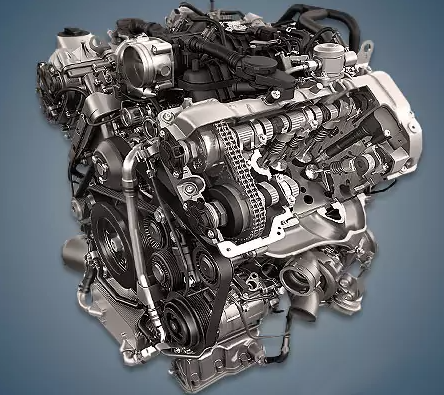

From 2014 to 2017, the company assembled the Porsche MCX.ZA, a 3.6-liter V6 gasoline engine that was only installed on a redesigned second-generation Cayenne GTS crossover. For changing the Cayenne S, a derated version of the unit with the MCU.RA index is available.
M46-line engines include MCT.MA, M46.20, MCX.ZA, and MCT.LA.
Specifications
| Production years | 2014-2017 |
| Displacement, cc | 3605 |
| Fuel system | direct injection |
| Power output, hp | 440 |
| Torque output, Nm | 600 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 96 |
| Piston stroke, mm | 83 |
| Compression ratio | 10.5 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | at intake and exhaust |
| Turbocharging | bi-turbo |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 9.0 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Porsche Cayenne GTS 2015) — city — highway — combined |
13.2 8.3 9.9 |
| Engine lifespan, km | ~200 000 |
The engine was installed on:
- Porsche Cayenne 2 (92A) in 2014 – 2017.
Disadvantages of the Porsche MCX.ZA engine
The most well-known issue with this line of engines is cylinder scuffing.
Their appearance significantly speeds up rare oil changes, overheating, and bad fuel.
The cooling system’s burst plastic tubes cause a lot of problems.
The timing chains will probably need to be replaced after 150,000 kilometers of running.
Turbines, high-pressure fuel pumps, ignition coils, and a tank pump are additional weaknesses.
