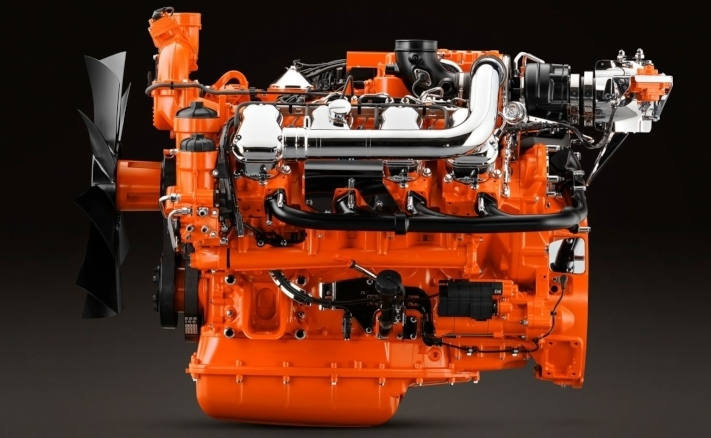

Engine Scania DC16

Production of the modern Scania DC 16 engine started in 2010. The engine satisfies the strict environmental requirements of Euro IV thanks to its Scania XPI (Common Rail) battery-type fuel injection system.

The DC16 is an air-to-air intercooler with a 4-stroke V-8 turbocharger. The engine has a remarkable 16-liter displacement.

Specifications

Manufacturer	Scania
Also called	DC 16
Cylinder block alloy	cast iron
Fuel system	direct injection
Configuration	V
Number of cylinders	8
Piston stroke, mm	154
Cylinder bore, mm	130
Compression ratio	16,7
Displacement, cc	16400
Power output, hp	550-770/1500
Torque output, Nm / rpm	3520/1300
Fuel type	diesel
Firing order	1-5-4-2-6-3-7-8
Euro standards	Euro 4
Weight, kg	1340 (dry)
Dimensions, mm — length — width — height	1516 1182 1207

Engine systems

Take DC 16 motor systems, for example.

Fuel system:

• Fuel pre-filter with moisture separator (5 micron);
• two fine fuel filters (3 micron);
• direct injection, electronically operated Scania XPI battery fuel system (Common Rail).

Engine lubrication system:

• centrifugal oil cleaner (5-7 microns),
• engine lubrication pump,
• full flow oil filter,
• and integrated oil cooler

Air and gas exhaust system:

• turbocharger with wastegate solenoid valve and intercooler;
• exhaust manifold protection;
• air cleaner with air filter clogging indicator.

Cooling system:

• water pump, thermostat,
• 965 mm push-type fan with protective grille,
• liquid cooling radiator,
• and air-to-air charge air cooler.

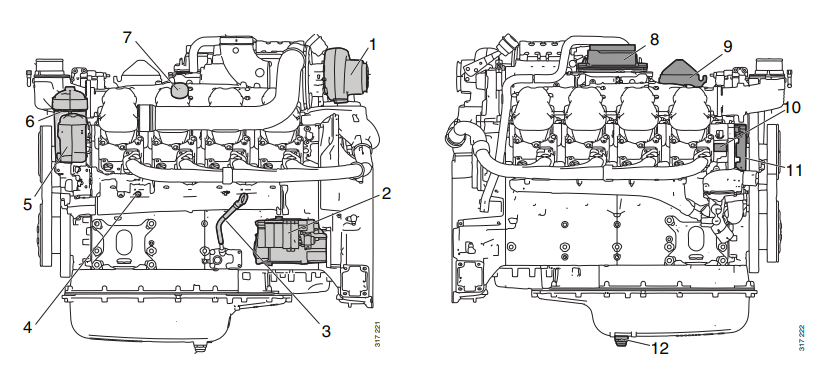

DC16 motor schematic

1. Turbocharger;
2. Starter;
3. Oil dipstick;
4. Draining coolant;
5. Fuel filter;
6. Oil filter;
7. Oil filler neck;
8. Engine control unit;
9. Centrifugal oil filter;
10. Type designation and engine serial number;
11. Coolant pump;
12. Oil plug.

Explanation of DC 16 marking

DC	Diesel engine with turbocharger and air-cooled intercooler.
16	Total working volume, dm3.
