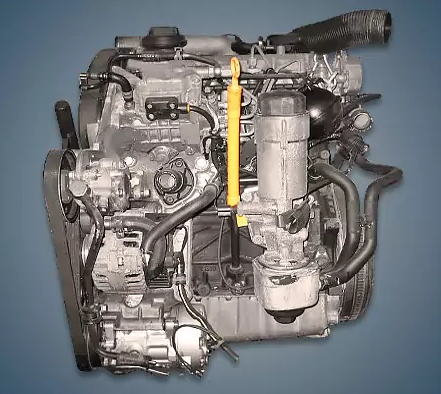

From 1997 to 2000, the company produced the 1.9-liter diesel VW AHF 1.9 TDI, which was fitted to popular German models like the Bora, Golf 4, and Audi A3 8L. A comparable ASV diesel engine with EURO 3 support replaced this engine in 2000.
1Z, AFN, AHF, AHU, ALH, AVG, AKU, and AEY are further models in the EA180 series.
Specifications
| Production years | 1997-2000 |
| Displacement, cc | 1896 |
| Fuel system | direct injection |
| Power output, hp | 110 |
| Torque output, Nm | 235 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 79.5 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 19.5 |
| Features | SOHC, intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | diesel |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Volkswagen Golf 1998) — city — highway — combined |
6.7 4.2 5.0 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 150 (with attachments) |
The engine was installed on:
- Audi A3 1 (8L) in 1997 – 2000;
- Skoda Octavia 1 (1U) in 1997 – 2000;
- Seat Leon 1 (1M) in 1999 – 2000;
- Seat Toledo 2 (1M) in 1998 – 2000;
- Volkswagen Bora 1 (1J) in 1998 – 2000;
- Volkswagen Golf 4 (1J) in 1997 – 2000.
Disadvantages of the VW AHF engine
Thrust failures are frequently caused by the turbine’s wedge geometry or the EGR valve’s damper;
Additionally, valve seats frequently burn out and compression decreases at high mileage;
This could result in a timing and overhaul due to a broken ribbed belt;
Start searching for leaks from the lower flange of the crankcase ventilation tube if your entire sump is filled with oil. A cracked cooling tee is typically the cause of this type of antifreeze leak.
