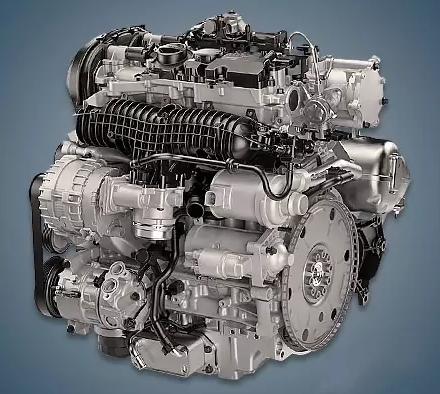

From 2014 to 2018, the Swedish company produced the 2.0-liter Volvo B4204T9 engine, which was fitted to the XC60 crossover in the T6 modification, the S60 sedan, and the V60 station wagon. The simultaneous presence of a Roots compressor and a turbine set this power unit apart.
The B3154T, B4204T23, and B4204T35 engines are also part of the Drive-E family.
The engine was mounted on:
- Volvo S60 II (134) in 2014 – 2018;
- Volvo V60 I (155) in 2014 – 2018;
- Volvo XC60 I (156) in 2014 – 2017.
Specifications
| Production years | 2014-2018 |
| Displacement, cc | 1969 |
| Fuel system | direct injection |
| Power output, hp | 306 |
| Torque output, Nm | 400 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 93.2 |
| Compression ratio | 10.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on both shafts |
| Turbocharging | turbine + compressor |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 5.9 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Volvo XC60 2016) — city — highway — combined |
10.2 7.1 8.2 |
| Engine lifespan, km | ~260 000 |
Disadvantages of the B4204T9 engine
Oil consumption is the most well-known issue with the power units in this series; additionally, the cooling system tank pipe frequently burst during the early years of production;
The fuel injectors must be flushed every 60,000 kilometers to prevent failure;
Every 120,000 kilometers, the timing belt should be replaced because when it breaks, the valves bend. Owners occasionally report leaks in seals and from under the valve cover.
