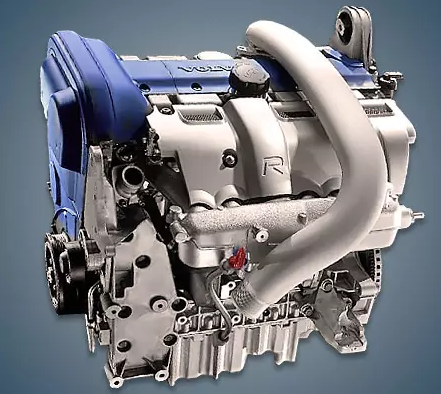

From 2003 to 2007, the Szęde plant assembled the 2.5-liter Volvo B5254T4 turbo engine, which was fitted to charged S60 and V70 models identified by the R index. Under the JZDA index, Ford Focus RS vehicles were equipped with a modified version of this type of turbo engine.
The B5252S, B5254S, B5254T, B5254T2, B5254T3, B5254T4, and B5254T6 are the five-cylinder 2.5-liter modular engine family.
The engine was mounted on:
- Volvo S60 I (384) in 2003 – 2007;
- Volvo V70 II (285) in 2003 – 2007.
Specifications
| Production years | 2003-2007 |
| Displacement, cc | 2522 |
| Fuel system | injector |
| Power output, hp | 300 |
| Torque output, Nm | 350 – 400 |
| Cylinder block | aluminum R5 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 93.2 |
| Compression ratio | 8.5 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | Dual CVVT |
| Turbocharging | KKK K24 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.5 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Volvo S60R 2005) — city — highway — combined |
14.5 8.2 10.5 |
| Engine lifespan, km | ~240 000 |
Disadvantages of the B5254T4 engine
The owners’ primary grievances are associated with phase control system malfunctions;
Due to clogged crankcase ventilation, lubricant consumption is frequently quite high;
The wear of the turbine shaft is the primary cause of the oil burner after 150,000 kilometers;
A pump, a thermostat, a gasoline pump, and its supports are among the motor’s weak points. The timing belt may not travel the required 120,000 kilometers, and when it breaks, the valves bend.
