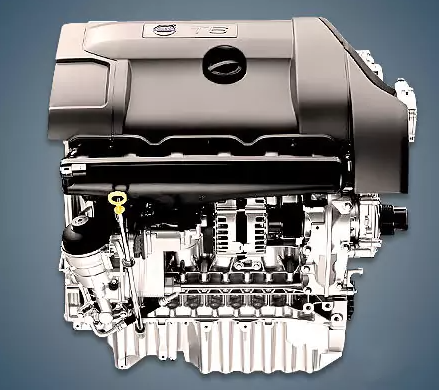

From 2007 to 2010, the 3.0-liter turbo Volvo B6304T2 or 3.0 T6 engine was assembled in Wales and fitted to charged versions of well-known models like the S80, V70, XC60, and XC70. This unit changed its index to B6304T4 and gained 20 horsepower after the 2010 update.
The engines B6304T4, B6324S, and B6324S5 are also part of the SHORT INLINE 6 family.
The engine was mounted on:
- Volvo S80 II (124) in 2007 – 2010;
- Volvo V70 III (135) in 2007 – 2010;
- Volvo XC60 I (156) in 2008 – 2010;
- Volvo XC70 III (136) in 2007 – 2010.
Specifications
| Production years | 2007-2010 |
| Displacement, cc | 2953 |
| Fuel system | injector |
| Power output, hp | 285 |
| Torque output, Nm | 400 |
| Cylinder block | aluminum R6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 93.2 |
| Compression ratio | 9.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | Dual VCT |
| Turbocharging | twin-scroll |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 7.4 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Volvo S80 T6 2009) — city — highway — combined |
16.7 8.0 11.2 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 190 |
Disadvantages of the B6304T2 engine
On the forum, owners of vehicles with such a unit most frequently talk about oil consumption;
Grease frequently seeps from beneath the vacuum pump or around the timing chain cover;
There is typically a whistle under the hood when the oil separator fails.
The generator was flooded during the initial years of engine production due to a leak in the front cooling tube;
A block of a pump and power steering that is mounted on the same shaft is another weakness in the motor.
