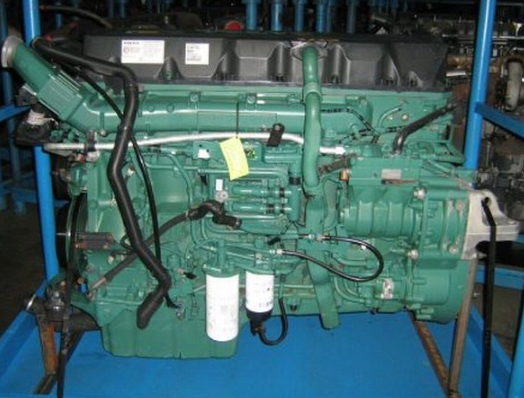

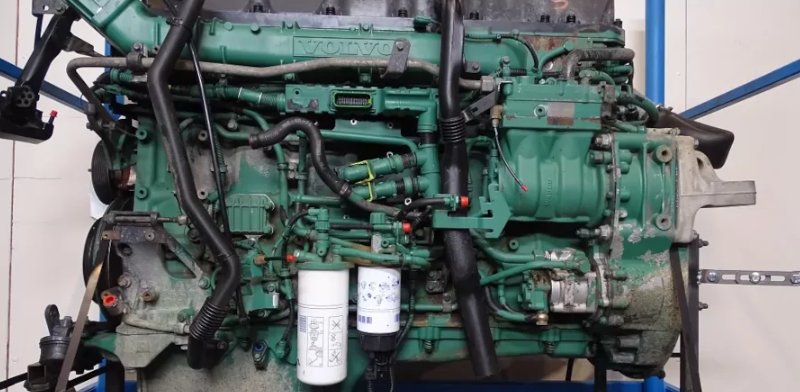

The D13A440 engine is a 12.8-liter diesel engine with six cylinders. It has 440 horsepower. Designed to transport large loads, it is also appropriate for construction projects. With an overhead camshaft, four valves per cylinder, and an accurate electronic fuel injection system, it is built on a sturdy and dependable design.
High-pressure fuel injection is provided by the engine’s unit injectors. Optimal combustion is ensured by the intake manifold and combustion chamber’s unique design. The rate of gas filling contributes to the high efficiency. This guarantees top-notch engine performance.
Specifications
| Manufacturer | Volvo |
| Factory markings | D13A440 |
| Power output | 324 kW / 440 hp at 1400-1800 rpm |
| Max torque output | 2200 Nm / 1050-1400 rpm |
| Displacement | 12800 cc |
| Number of cylinders | 6 pieces |
| Valves | 24 pieces |
| Compression ratio | 18.1 to 1 |
| Cylinder bore | 131 mm |
| Piston stroke | 158 mm |
| Main bearings | 7 pieces |
| Combustion chamber working volume | 117.86 cc |
| Power Index | 34 hp per liter (1000 cc) displacement |
The Volvo EMS engine management system, which offers completely electronic function control, is installed in the D13A440. The system offers more precise diagnostics and troubleshooting, as well as effective engine management. The dashboard’s display presents the data in an easy-to-understand way.
Selective Catalytic Reduction (SCR) technology is used to treat the exhaust gases in addition to optimizing the combustion process. This procedure results from the injection of AdBlue reagent into the exhaust gases prior to their transfer to the system’s catalytic converter. Emissions are decreased by this reagent’s reaction with nitrogen oxides. The engine is approved in compliance with the Euro 4 emission standards because of this system.
