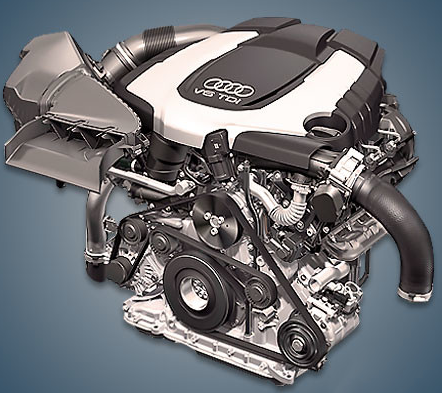

From 2010 to 2014, the German company assembled the 3.0-liter Audi CDUD 3.0 TDI engine, which was installed on several well-known company models, including the A6 C7, A7 C7, and Q5 crossover.
The EA897 series also includes: CJMA, CDUC, CDUD, CRCA, CRTC, CVMD, DCPC.
Specifications
| Production years | 2010-2014 |
| Displacement, cc | 2967 |
| Fuel system | Common Rail |
| Power output, hp | 245 |
| Torque output, Nm | 580 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91.4 |
| Compression ratio | 16.8 |
| Features | 2 x DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | HTT GT2260 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.0 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Audi A6 Quattro 2012) — city — highway — combined |
7.2 5.2 5.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 195 |
The engine was installed on:
- Audi A6 C7 (4G) in 2010 – 2014;
- Audi A7 C7 (4G) in 2010 – 2014;
- Audi Q5 1 (8R) in 2011 – 2014.
Disadvantages of the Audi CDUD engine
The unpredictability of the CR system with piezo injectors is linked to the most common engine failures;
Issues with the EGR valve and particulate filter rank second in terms of mass;
They frequently complain about oil and coolant leaks on the profile forum; for runs longer than 250,000 km, the timing chain may already stretch out and need to be replaced;
There were occasionally faulty intake manifolds on diesel engines from the early years of production.
