Overview & Design Features

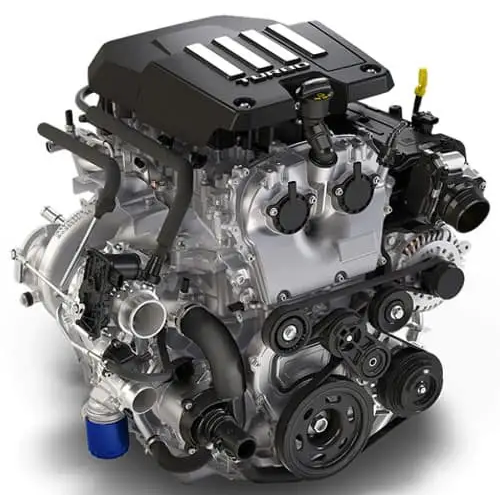

The Cadillac GM L3B is a highly sophisticated 2.7-liter (2727 cc) inline four-cylinder, turbocharged gasoline engine developed by General Motors. Representing a significant departure for Cadillac by being the brand’s first modern four-cylinder engine designed for high-performance applications, the L3B debuted initially in GM’s full-size truck lineup before being adapted and recalibrated for luxury and performance vehicles. Its introduction signaled a strategic move towards downsized, high-output powertrains, combining efficiency with robust performance capabilities.
At its core, the L3B features a lightweight, high-pressure die-cast aluminum cylinder block and a forged steel crankshaft, ensuring durability under high boost conditions. Its cylinder head is also crafted from aluminum, housing dual overhead camshafts (DOHC) with advanced variable valve timing (VVT) for both intake and exhaust valves, enabling precise control over engine breathing across the RPM range. Fuel delivery is handled by a high-pressure direct injection system, which optimizes combustion efficiency and power output. A unique triple-cam phasing system further enhances valve control, while a twin-scroll turbocharger with an active wastegate minimizes turbo lag and provides rapid torque delivery.
The GM L3B engine, in its various states of tune, has been primarily deployed across several key models. Within the Cadillac brand, it powers the Cadillac CT4-V (2020-Present) and the Cadillac CT5 (2020-Present) in specific trims. Its earlier and slightly different iterations also served as the base engine for the Chevrolet Silverado 1500 (2019-Present) and GMC Sierra 1500 (2019-Present) light-duty trucks, demonstrating its versatility and robust design across a range of vehicle platforms.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 2727 |
| Max Power (hp (kW) @ RPM) | 325 (242) @ 5500 (Cadillac CT4-V) |
| Max Torque (Nm (kg*m) @ RPM) | 515 (52.5) @ 1500-4000 (Cadillac CT4-V) |
| Fuel Type | Premium Unleaded Recommended |
| Fuel Consumption (l/100 km) | ~9.8 (Combined, Cadillac CT4-V) |
| Engine Type | Inline Four-Cylinder, DOHC, Turbocharged |
| Compression Ratio | 10.0:1 |
| Cylinder Bore (mm) | 92.25 |
| Piston Stroke (mm) | 102 |
| Valvetrain | DOHC, 4 valves per cylinder, Variable Valve Timing (VVT) |
| Valves per Cylinder | 4 |
| Additional Info | Direct Injection, Twin-Scroll Turbocharger, Active Fuel Management (in some applications), Auto Stop/Start |
Common Problems & Reliability
The L3B engine, while generally robust, exhibits a few common characteristics and potential issues inherent to its design and technology. As with most direct injection engines, carbon buildup on intake valves is a possibility over extended mileage. This phenomenon occurs because fuel is injected directly into the combustion chamber, bypassing the intake valves, thus preventing the washing action that port injection provides. Symptoms can include reduced performance, misfires, and rough idle. Regular use of top-tier gasoline and occasional intake system cleaning can mitigate this.
Given its turbocharged, high-output nature, some owners might observe elevated oil consumption. This is not necessarily a defect but often a characteristic of performance-oriented forced-induction engines, where higher operating temperatures and pressures can lead to some oil bypass. Regular oil level checks between service intervals are crucial. Furthermore, while the L3B is relatively new, modern GM engines using timing chains have occasionally faced timing chain wear issues, particularly if oil change intervals are neglected or incorrect oil specifications are used. Timely maintenance and adherence to manufacturer oil specifications are vital for chain longevity.
Under proper care and maintenance, the Cadillac GM L3B engine is engineered for a competitive service life. Owners can realistically expect a service life exceeding 200,000 kilometers (125,000 miles) before considering a major overhaul. This expectation is contingent upon strict adherence to the manufacturer’s maintenance schedule and the use of specified fluids.
Maintenance Tips & Service Schedule
Maintaining the L3B engine according to factory specifications is paramount for ensuring its longevity and optimal performance. The most critical aspect is engine oil changes. It is recommended to use Dexos-approved full synthetic engine oil, typically 5W-30 viscosity, at intervals of 12,000 km (7,500 miles) or once per year, whichever comes first. For vehicles operating under severe conditions (e.g., frequent towing, extreme temperatures, heavy stop-and-go traffic), more frequent oil changes may be advisable.
Spark plugs should be inspected and replaced approximately every 72,000 km (45,000 miles). Using the correct OEM-specified iridium spark plugs is essential for proper ignition and engine efficiency. The engine air filter requires inspection at every service and replacement as needed, typically every 24,000-48,000 km (15,000-30,000 miles), depending on driving conditions.
The cooling system should be serviced with a coolant flush and refill using Dex-Cool coolant every 240,000 km (150,000 miles) or 5 years. While the L3B utilizes a robust timing chain system designed for the life of the engine, it is advisable to have the timing chain and associated components inspected by a qualified technician during major service intervals, particularly if unusual noises or performance degradation are observed. Regular checks of all fluid levels and visual inspections for leaks are also critical proactive measures.
Conclusion
The Cadillac GM L3B engine represents a modern, high-tech approach to power delivery, offering an impressive blend of performance and efficiency for its displacement. For a used vehicle buyer, it can be considered a safe and reliable choice, provided the vehicle has a verifiable service history indicating adherence to manufacturer maintenance guidelines. Its design incorporates robust materials and advanced technologies aimed at durability. Prospective buyers should prioritize vehicles with documented oil changes and be prepared for diligent maintenance, particularly regarding oil quality and frequency, to mitigate common direct-injection and turbocharger-related considerations. With proper care, the L3B is a rewarding engine that delivers strong performance in a luxury package.
