Overview & Design Features

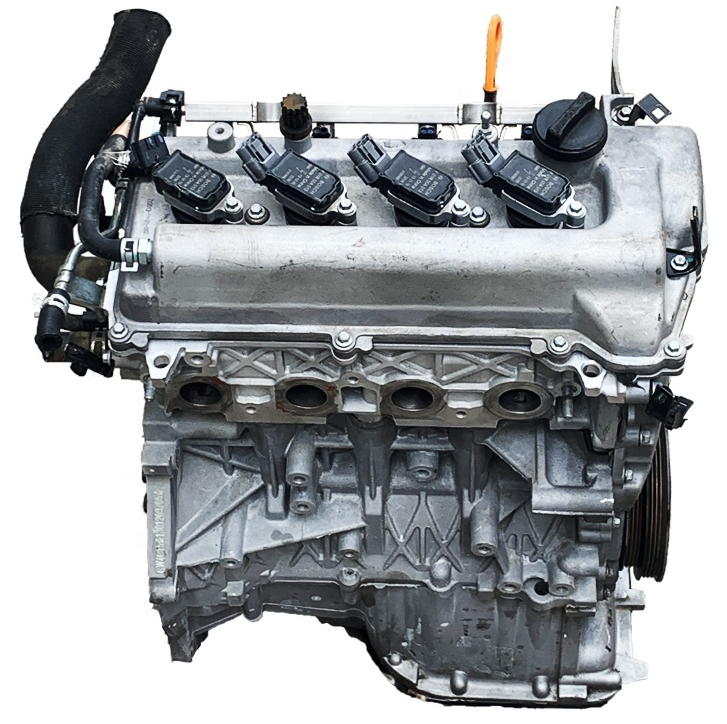

The Chery SQR475E is a compact, naturally aspirated, inline four-cylinder gasoline engine, a cornerstone of Chery Automobile’s early ventures into the small car segment. Produced by the Chinese manufacturer Chery, this engine played a significant role in providing an affordable and practical powertrain solution for its entry-level vehicles, particularly in the domestic Chinese market and select export regions. With a displacement typically around 0.8 liters, the SQR475E was engineered to prioritize fuel efficiency and low manufacturing costs, making it a suitable choice for urban commuters and first-time car buyers.
From an engineering perspective, the SQR475E features a robust cast iron cylinder block, chosen for its durability and heat dissipation properties, paired with an aluminum alloy cylinder head to reduce overall engine weight and improve thermal efficiency. Fuel delivery is handled by a multi-point electronic fuel injection (MPI) system, ensuring precise fuel metering and combustion, thereby contributing to its modest fuel consumption figures and adherence to prevailing emission standards of its time. The valvetrain typically employs a Single Overhead Camshaft (SOHC) design with four valves per cylinder (16V), optimizing airflow for improved power output and efficiency without the complexity of variable valve timing systems.
The SQR475E engine saw widespread deployment across several Chery vehicle models, primarily associated with the brand’s popular mini-car lineups. Its most notable application was in the original Chery QQ3 (also known as Chery QQ), where it served as one of the primary engine options from its introduction in the early 2000s through its subsequent model years. It was also found in variants of the Chery QQ6 (or Chery Cowin 1) and occasionally in other compact models targeting similar market segments, reinforcing its position as a workhorse engine for Chery’s budget-friendly offerings.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 796 |
| Max Power (hp (kW) @ RPM) | 52 (38) @ 6000 |
| Max Torque (Nm (kg*m) @ RPM) | 70 (7.1) @ 3500-4000 |
| Fuel Type | Unleaded Gasoline |
| Fuel Consumption (l/100 km) | ~5.5 – 6.5 (combined cycle, vehicle dependent) |
| Engine Type | Inline 4-Cylinder, Naturally Aspirated |
| Compression Ratio | 9.5:1 |
| Cylinder Bore (mm) | 75.0 |
| Piston Stroke (mm) | 84.8 |
| Valvetrain | SOHC 16-valve |
| Valves per Cylinder | 4 |
| Additional Info | Multi-Point Electronic Fuel Injection (MPI) |
Common Problems & Reliability
The Chery SQR475E engine, while generally reliable for its class, exhibits a few common weak points that owners and prospective buyers should be aware of. A frequent issue involves the head gasket, which can be prone to premature failure, particularly if the engine has experienced overheating due to neglected coolant maintenance or a faulty thermostat. Symptoms often include coolant loss, white smoke from the exhaust, or oil contamination in the coolant. Another recurring problem can be attributed to oil leaks, frequently originating from the valve cover gasket or the oil pan gasket, often due to aging seals or improper sealing during previous repairs. Furthermore, some units may exhibit increased oil consumption at higher mileages, which can be indicative of worn piston rings or valve stem seals, exacerbated by extended oil change intervals or frequent high-RPM driving. With proper and timely maintenance, the SQR475E engine typically demonstrates an expected service life of 150,000 to 200,000 kilometers before requiring major internal repairs or an overhaul.
Maintenance Tips & Service Schedule
Proactive maintenance is crucial for maximizing the longevity and reliability of the Chery SQR475E engine. Adherence to a strict service schedule can mitigate many potential issues. Engine oil and filter changes are recommended every 5,000 to 7,500 kilometers or every six months, whichever comes first, using a quality synthetic or semi-synthetic oil with a viscosity rating of 5W-30 or 5W-40, compliant with API SN or higher standards. Spark plugs should be inspected and replaced every 30,000 to 40,000 kilometers to ensure optimal combustion and fuel efficiency. The engine relies on a timing belt, which is a critical component and requires replacement every 60,000 kilometers or every four years, along with the tensioner and idler pulleys, to prevent catastrophic engine damage. Coolant flushes and replacements are advised every 40,000 kilometers or two years, using an ethylene glycol-based coolant specifically formulated for aluminum engines. Regular inspection of accessory belts, air filters, and fuel filters at prescribed intervals (typically every 20,000-30,000 kilometers) will also contribute significantly to the engine’s operational health.
Conclusion
The Chery SQR475E engine represents a fundamental and cost-effective powertrain solution designed for basic transportation needs. Its straightforward design contributes to relative simplicity in maintenance and repair, making it a practical choice for regions where access to advanced diagnostic equipment or specialized parts may be limited. For a used vehicle buyer, an SQR475E-equipped car can be a safe and reliable option, provided it has a well-documented maintenance history. Thorough pre-purchase inspection by a qualified mechanic is paramount to identify potential head gasket issues, oil leaks, or signs of excessive wear. With diligent adherence to its modest maintenance requirements, this engine is capable of delivering many years of economical service.
