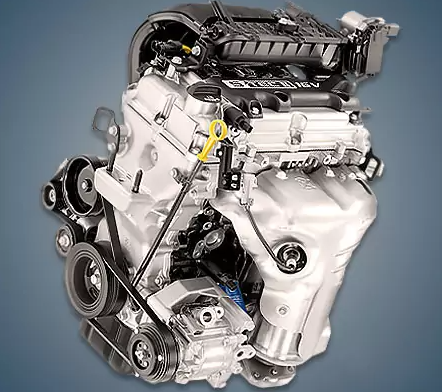

The third generation of the well-liked Spark model and the comparable Ravon R2 are equipped with the 1.25-liter Chevrolet B12D2 or LL0 engine, which has been produced at the company’s factory since 2012. The unit’s hydraulic compensators and DCVCP phase regulators set it apart from its predecessor.
The B series includes engines: B10S1, B10D1, B12S1, B12D1, B12D2, B15D2.
Specifications
| Production years | since 2012 |
| Displacement, cc | 1249 |
| Fuel system | distributed injection |
| Power output, hp | 85 |
| Torque output, Nm | 112 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 70.5 |
| Piston stroke, mm | 80 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | DCVCP |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.75 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Chevrolet Spark 2020) — city — highway — combined |
8.2 5.1 6.2 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 112 |
The engine was installed on:
- Chevrolet Spark 3 (M300) since 2012;
- Ravon R2 1 (M300) since 2016.
Disadvantages of the B12D1 engine
This power unit has no obvious flaws and is straightforward and dependable.
Only the Check Engine’s winter appearance and noises under the hood are discussed on specialized forums.
The resource of hydraulic lifters is significantly reduced by lubrication savings, sometimes up to 50,000 kilometers.
Because the valves bend when the timing chain jumps, it’s also critical to keep an eye on its condition.
The remaining issues are associated with attachment failures or overheating.
