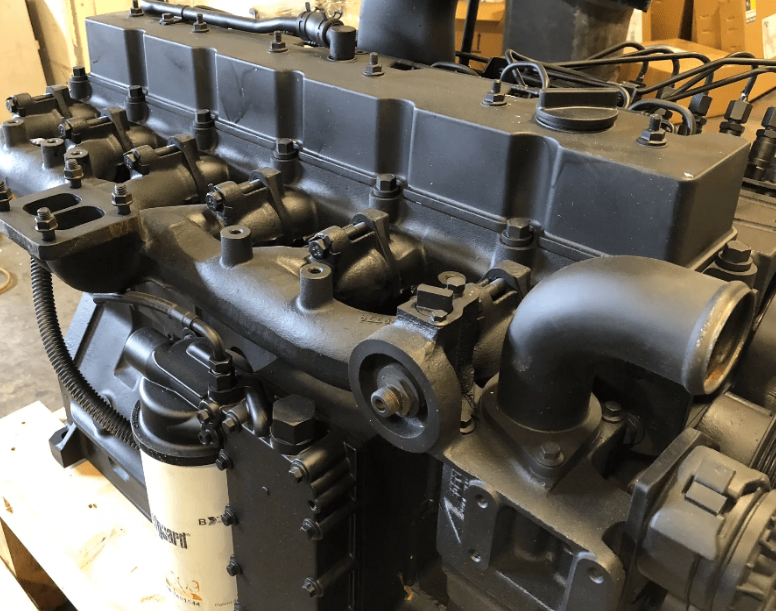

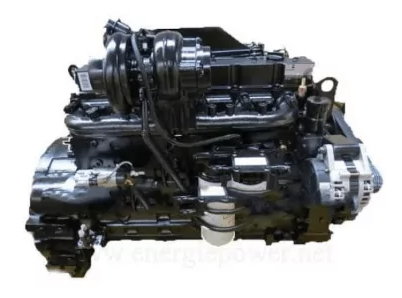

The Cummins 6CT/6CTA 8.3 is an 8.3-liter 6-cylinder in-line diesel engine intended for use in power plants and other comparable industrial machinery.
- 6CT – turbocharged;
- 6CTA – turbocharged and air-to-air intercooler;
- 6CTAA – turbocharged and air-to-air aftercooled.
Over the last 25 years, the engine has established a strong reputation in commercial maritime transportation. Perfect for fire pumps, power and hydraulic installations, standby power supplies, and marine power supplies. IMO Tier I certified; numerous features have IMO Tier II certification. The Darlington Engine Plant in Darlington, UK, is where the engines are made.
Modifications Cummins 8.3
| Configuration | Displacement, hp / rpm | Torque output, Nm / rpm/th> |
|---|---|---|
| Certification Tier I | ||
| 6CT8.3 (T) | 150 / 2200 | 660 / 1100 |
| 6CT8.3 (T) | 180 / 2000 | 780 / 1500 |
| 6CT8.3 (T) | 201 / 2500 | 778 / 1500 |
| 6CT8.3 (T) | 215 / 2500 | 827 / 1500 |
| 6CTA8.3 (TA) | 230 / 2200 | 990 / 1500 |
| 6CTA8.3 (TA) | 260 / 2200 | 1106 / 1500 |
| 6CTAA8.3 (TAA) | 280 / 2200 | 1280 / 1500 |
| 6CTAA8.3 (TAA) | 300 / 2200 | 1220 / 1500 |
| Certification Tier II | ||
| 6CTAA8.3 (TAA) | 185 / 2200 | 856 / 1500 |
| 6CTAA8.3 (TAA) | 205 / 2200 | 969 / 1500 |
| 6CTAA8.3 (TAA) | 230 / 2200 | 1090 / 1500 |
| 6CTAA8.3 (TAA) | 240 / 2200 | 1117 / 1500 |
| 6CTAA8.3 (TAA) | 250 / 2200 | 1157 / 1500 |
| 6CTAA8.3 (TAA) | 260 / 2200 | 1205 / 1500 |
Specifications
| Manufacturer | Darlington Engine Plant |
| Displacement | 8.3 liters |
| Fuel type | diesel |
| Fuel system | high pressure fuel pump |
| Configuration | inline |
| Number of cylinders | 6 |
| Cylinder bore, mm | 114 |
| Piston stroke, mm | 135 |
| Configuration | Four-stroke, turbocharged |
| Compression ratio | 16,8:1 |
| Firing order | 1-5-3-6-2-4 |
| Fuel consumption under load: 100% 75% 50% |
36,0 liters / hour 27,0 liters / hour 18,0 liters / hour |
| Weight | 684 kg (6CT) 702 kg (6CTA) |
