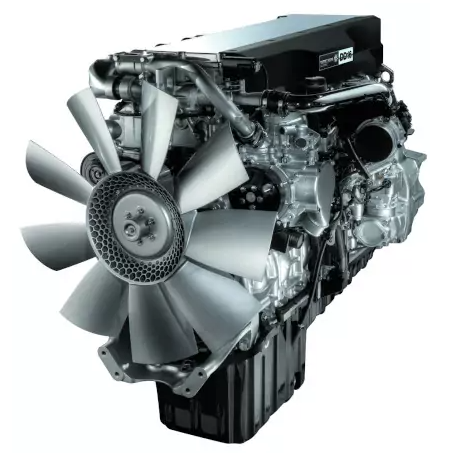

Engine DAF WS 282

The DAF WS 282 diesel engine can produce 282 kW and 384 horsepower. This V-shaped DAF engine has six 11.6-liter cylinders and twelve valves. DAF 95 FA 95.380, DAF 95 FAT 95.380, DAF 95 FT 95.380, and DAF 95 FAC 95.380 are compatible.

Engine DAF WS 282 - Engine DAF WS 282

Specifications

Engine’s type diesel
Power output, hp / kW 384 / 282 at 2000 rpm
Displacement, cc 11600
Number of cylinders 6
Valves 12
Torque output, Nm / rpm 1300
Compression ratio (compression) 14.51:1
Cylinder bore, mm 130
Piston stroke, mm 146
Crankshaft bearings 7
Configuration inline
Fuel type diesel
Fuel system inline injection pump
Turbine turbo / charge air cooler
Cylinder head OHV
Timing mechanism spur gear
Timing rocker arm
Cooling water
