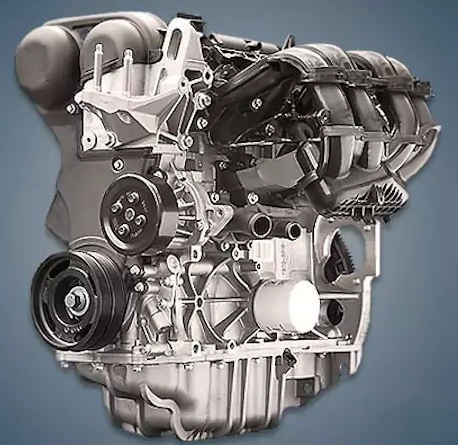

The third generation of the Focus model and the C-Max compact van were equipped with the 1.6-liter Ford IQDB or 1.6 Duratec Ti VCT 105ps engine, which was manufactured between 2010 and 2019. The firmware is the only real difference between this power unit and its 125-horsepower equivalent.
DURATEC Ti-VCT family:
1.5 L – UEJB;
1.6 L – IQDB, HXDA, PNBA, PNDA, SIDA, XTDA.
The engine was installed on:
- Ford C-Max Mk2 in 2010 – 2014;
- Ford Focus Mk3 in 2010 – 2019.
Specifications
| Production years | 2010-2019 |
| Displacement, cc | 1596 |
| Fuel system | distributed injection |
| Power output, hp | 105 |
| Torque output, Nm | 150 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 79 |
| Piston stroke, mm | 81.4 |
| Compression ratio | 11.0 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | Ti-VCT |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.05 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Ford Focus 2016) — city — highway — combined |
8.3 4.6 5.9 |
| Engine lifespan, km | ~330 000 |
| Weight, kg | 91 |
Disadvantages of the IQDB engine
Dragging catalyst crumbs into the combustion chamber is the engine’s primary issue;
The ignition system’s parts fail next because they dislike poor fuel;
They complain about leaks from the rear crankshaft oil seal or beneath the valve cover on specialized forums;
There are no hydraulic lifters here, so the valves must be adjusted every 100,000 kilometers;
This little resource also has a belt of mounted units and a gas pump.
