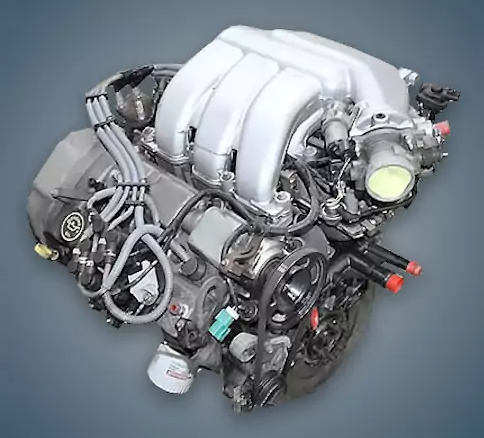

Only the most costly and potent Mondeo models – aside from the sports ST220 – were equipped with the 3.0-liter Ford REBA or 3.0 Duratec V6 SE engine, which was built in the USA between 2004 and 2007. This unit shares many structural similarities with the Jaguar AJ30 and Mazda AJ-DE engines.
The SEA, SGA, LCBD, and MEBA internal combustion engines are also part of the Duratec V6 line.
The engine was installed on:
- Ford Mondeo Mk3 in 2004 – 2007.
Specifications
| Production years | 2004-2007 |
| Displacement, cc | 2967 |
| Fuel system | distributed injection |
| Power output, hp | 204 |
| Torque output, Nm | 263 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 89 |
| Piston stroke, mm | 79.5 |
| Compression ratio | 10.0 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | two chains |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.8 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Ford Mondeo 2006) — city — highway — combined |
15.1 7.5 10.3 |
| Engine lifespan, km | ~350 000 |
Disadvantages of the REBA engine
Bad fuel is intolerable to the engine, and coils and candles break easily;
An expensive fuel pump may then malfunction as a result of a clogged filter in the tank;
Overheating and breaking through the cylinder head gasket are frequently caused by an unreliable pump;
Crankcase ventilation clogging is the most common cause of oil fogging;
Hydraulic chain tensioners and hydraulic compensators rely on lubricant quality.
