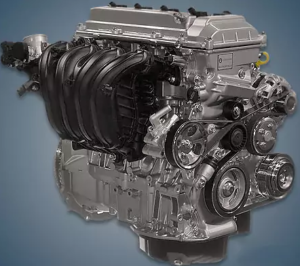

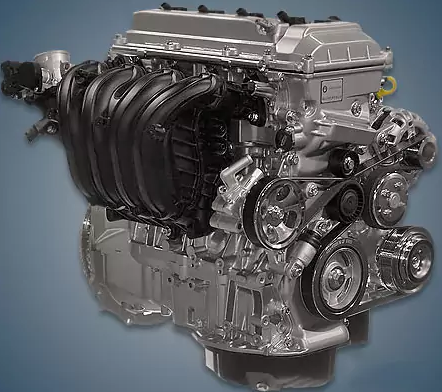

Almost all of the company’s major models, including the Atlas crossover and Emgrand X7, have the 2.4-liter Geely JLD-4G24 gasoline engine, which has been assembled at a factory in China since 2010. The well-known Japanese Toyota 2AZ-FE engine is essentially replicated in this power unit.
JLC-4G15, JLY-4G15, JLC-4G18, JLY-4G18, JLD-4G20, and JLD-4G24 are Toyota engine clones.
Specifications
| Production years | since 2010 |
| Displacement, cc | 2378 |
| Fuel system | distributed injection |
| Power output, hp | 148 – 156 |
| Torque output, Nm | 210 – 225 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 88.7 |
| Piston stroke, mm | 96.2 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | VVT at the intake |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Geely Atlas 2020) — city — highway — combined |
12.9 7.5 9.5 |
| Engine lifespan, km | ~280 000 |
| Weight, kg | 125 |
The engine was installed on:
- Geely Atlas 1 (NL-3) since 2016;
- Geely Emgrand 8 1 (EC8) in 2010 – 2015;
- Geely Emgrand GT 1 (KC-1) since 2015;
- Geely Emgrand X7 1 (NL-1) in 2011 – 2019.
Disadvantages of the Geely JLD-4G24 engine
Although this engine is reasonably dependable, the quality of its parts frequently falls short;
The unit has no significant issues and is primarily concerned with trivial matters;
Although lubrication consumption is frequently discussed in specialized forums, it is typically not very high;
Here, using poor fuel significantly shortens the catalyst’s and candles’ lifespan;
Every 100,000 kilometers, valve clearances must be changed because there are no hydraulic lifters.
