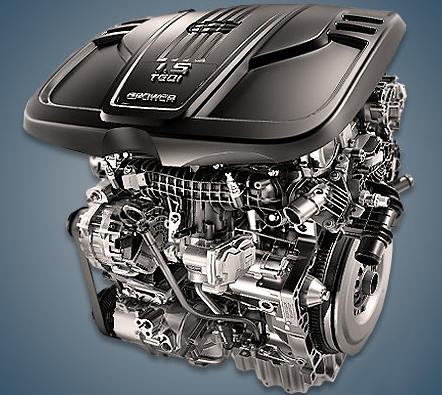

The popular Atlas and Coolray crossovers, as well as their modifications sold under the Proton brand, are equipped with the 1.5-liter, three-cylinder Geely JLH-3G15TD engine, which has been manufactured in China since 2018. This power unit is basically a replica of the Volvo XC40’s B3154T turbo engine.
JLH-3G15TD, JLH-4G20TD, JLH-4G20TDB, and JLH-4G20TDJ are members of the JLH family.
Specifications
| Production years | since 2018 |
| Displacement, cc | 1477 |
| Fuel system | direct injection |
| Power output, hp | 150 – 180 |
| Torque output, Nm | 255 – 265 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 93.2 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on both shafts |
| Turbocharging | single turbo |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 5.6 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Geely Coolray 2021) — city — highway — combined |
8.1 5.7 6.6 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Geely Atlas 1 (NL-3) since 2018;
- Geely Atlas Pro (NL-3B) since 2019;
- Geely Coolray 1 (SX11) since 2018;
- Geely Emgrand GT 2 (KC-2) since 2018;
- Proton X50 1 (SX11) since 2020;
- Proton X70 1 (NL-3) since 2018.
Disadvantages of the Geely JLH-3G15TD engine
It has carbon buildup on the intake valves, just like any other direct injection unit.
Candles that use poor fuel quickly burn out, followed by the catalyst.
When the timing belt breaks, the valves bend, so keep a close eye on its condition.
A recall regarding the replacement of the fuel tank’s ventilation pipe was conducted by another dealer.
