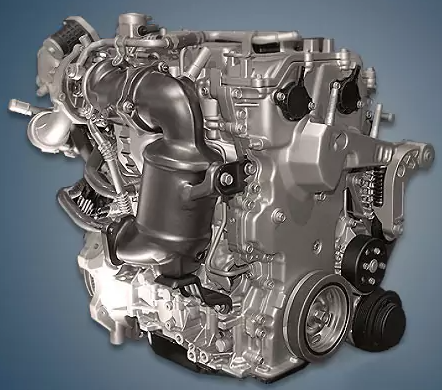

Chinese versions of popular models like the Sonata, Tucson, and Sportage are equipped with the 1.5-liter Hyundai G4FS or Smartstream G 1.5 T-GDI engine, which has been manufactured since 2019. Concern cars from several other Asian nations also have this power unit.
G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, and G4FU are members of the Gamma family.
Specifications
| Production years | since 2019 |
| Displacement, cc | 1497 |
| Fuel system | direct injection |
| Power output, hp | 170 – 200 |
| Torque output, Nm | 253 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75.6 |
| Piston stroke, mm | 83.4 |
| Compression ratio | 10.5 |
| Features | CVVD |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | Dual CVVT |
| Turbocharging | yes |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 4.8 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Hyundai Custo 2021) — city — highway — combined |
9.2 5.3 6.4 |
| Engine lifespan, km | ~220 000 |
| Weight, kg | 106 |
The engine was installed on:
- Hyundai Custo 1 (KU) since 2021;
- Hyundai Mistra 2 (DU2) since 2020;
- Hyundai Sonata 8 (DN8) since 2019;
- Hyundai Tucson 4 (NX4) since 2020;
- Kia K5 3 (DL3) since 2020;
- Kia Sportage Ace 3 (NP) since 2020.
Disadvantages of the Hyundai G4FS engine
Reviews on specialized forums are generally positive, with the exception of the Start-Stop system.
It has carbon buildup on the intake valves, just like all direct injection engines.
Additionally, the timing chain does not have a very high resource for engines in this family.
