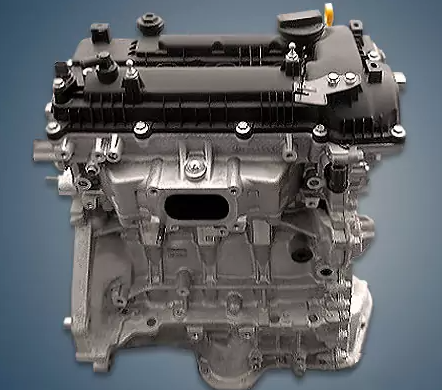

Only since 2020 has the 1.2-liter Hyundai G4LF or Smartstream G 1.2 MPI engine been manufactured. It is found in the Korean company’s i10, i20, Bayon, Kia Picanto, and Stonic models. This engine comes in two versions: distributed injection MPI and combined DPI.
G4LA, G4LF, G4LC, G4LD, G4LG, G4LH, and G4LE are members of the Kappa R4 family.
Specifications
| Production years | since 2020 |
| Displacement, cc | 1197 |
| Fuel system | MPI or DPI |
| Power output, hp | 83 – 84 |
| Torque output, Nm | 115 – 120 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 71 |
| Piston stroke, mm | 75.6 |
| Compression ratio | 11.0 |
| Features | ISG |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | Dual CVVT |
| Turbocharging | no |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 3.4 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Hyundai i10 2021) — city — highway — combined |
6.1 4.5 5.3 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 93 |
The engine was installed on:
- Hyundai i10 3 (AC3) since 2020;
- Hyundai i20 3 (BC3) since 2020;
- Hyundai Bayon 1 (BC3) since 2021;
- Kia Picanto 3 (JA) since 2020;
- Kia Rio 4 (YB) since 2020;
- Kia Sonet 1 (QY) since 2020;
- Kia Stonic 1 (YB) since 2020.
Disadvantages of the Hyundai G4LF engine
The engine is largely praised on specialized forums, with the exception of infrequent electrical issues.
Additionally, there are a few complaints regarding Start-Stop system malfunctions.
The thin timing chain is 100,000 km long and has low resources.
Keep an eye on the cooling system because the motors in this series are also prone to overheating.
