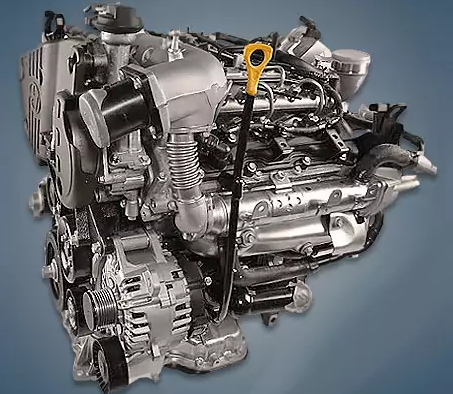

The Mohave SUV is powered by a 3.0-liter Hyundai-Kia D6EB or 3.0 CRDi diesel engine, which has been manufactured since 2011. It was also installed on the ix55 crossover for a number of years. Diesel’s new fuel system, which supports Euro 5 and Euro 6, sets it apart from its predecessors.
D6EA engines are also part of the Hyundai S family.
The engine was mounted on:
- Hyundai ix55 1 (EN) in 2011 – 2015;
- Kia Mohave 1 (HM) in 2011 – 2019; Mohave 2 (HM2) since 2019.
Specifications
| Production years | since 2011 |
| Displacement, cc | 2959 |
| Fuel system | Common Rail |
| Power output, hp | 250 – 260 |
| Torque output, Nm | 470 – 560 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 89 |
| Compression ratio | 17.3 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | BorgWarner BV50 |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 7.4 |
| Fuel type | diesel |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Kia Mohave 2015) — city — highway — combined |
12.4 7.6 9.3 |
| Engine lifespan, km | ~360 000 |
| Weight, kg | 299.5 |
Disadvantages of the Hyundai D6EB engine
Although the CR Bosch system with piezo injectors is dependable, it uses a lot of fuel;
Here, intake pollution via the EGR is frequently the cause of unstable operation;
The crankcase ventilation oil separator is linked to numerous issues with such a diesel engine;
A double-row timing chain can stretch and jump after 200,000 kilometers;
Glow plugs and their control unit are another engine weakness.
