Overview & Design Features

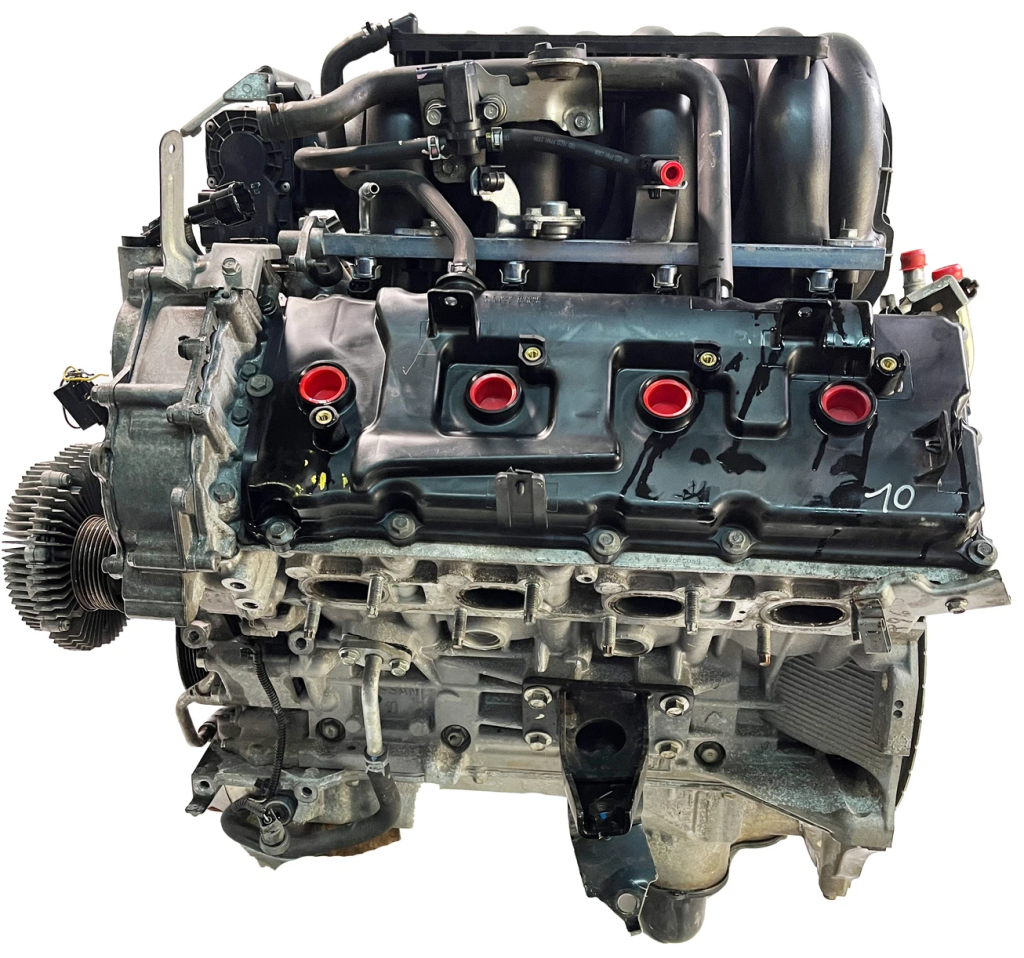

The Infiniti VK56DE is a robust 5.6-liter (5552 cc) naturally aspirated V8 engine developed by Nissan for its luxury Infiniti division, primarily utilized in full-size SUVs and pickup trucks. Introduced in 2004, this engine succeeded the smaller 4.5L VK45DE in certain applications, providing substantially increased torque and horsepower for demanding tasks such as towing and hauling. Its design emphasizes durability and power delivery, making it a cornerstone for Infiniti’s larger vehicle offerings during its production run.
Engineered for high performance and longevity, the VK56DE features a lightweight aluminum alloy block and cylinder heads, contributing to a favorable power-to-weight ratio. It employs a dual overhead camshaft (DOHC) valvetrain with four valves per cylinder, actuated by Nissan’s Continuously Variable Valve Timing Control System (CVTCS) on the intake side, which optimizes valve overlap for improved low-end torque and high-end power. Fuel delivery is managed by a sequential multi-point electronic fuel injection system. A forged steel crankshaft, connecting rods, and cast aluminum pistons ensure internal strength, while an electronically controlled variable intake manifold further enhances volumetric efficiency across the RPM range.
The VK56DE engine was prominently deployed in several key Infiniti and Nissan models. Its primary applications include the Infiniti QX56 (JA60 chassis) from 2004 to 2010, the Nissan Titan pickup truck from 2004 to 2015, and the Nissan Armada full-size SUV from 2004 to 2015. It also powered the international market Nissan Pathfinder Armada and select trims of the Nissan Frontier (Pro-4X) in specific regions, establishing its reputation as a versatile and potent powerplant for large and capable vehicles.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 5552 |
| Max Power (hp (kW) @ RPM) | 317 (236) @ 5200 |
| Max Torque (Nm (kg*m) @ RPM) | 522 (53.2) @ 3400 |
| Fuel Type | Premium Unleaded (91+ RON recommended) |
| Fuel Consumption (l/100 km) | 15.7 – 18.1 (combined, varies by vehicle) |
| Engine Type | Naturally Aspirated V8, DOHC |
| Compression Ratio | 9.8:1 |
| Cylinder Bore (mm) | 98.0 |
| Piston Stroke (mm) | 92.0 |
| Valvetrain | DOHC, 4 valves per cylinder, CVTCS (intake) |
| Valves per Cylinder | 4 |
| Additional Info | Aluminum block & heads, sequential multi-point fuel injection, forged crankshaft, electronic throttle |
Common Problems & Reliability
The Infiniti VK56DE is generally regarded as a reliable engine; however, certain known issues warrant attention, particularly as vehicles accumulate higher mileage. One of the most common concerns, especially on earlier models (pre-2010), involves the timing chain guides and tensioners. These components can degrade over time, leading to a distinct rattling noise, especially on cold starts. If neglected, severe wear can cause timing chain slack, leading to engine timing errors, reduced performance, and potentially catastrophic engine damage.
Another frequently reported problem involves exhaust manifold cracks. Due to repeated thermal cycling, the cast iron manifolds can develop cracks, resulting in an audible ticking or exhaust leak, particularly noticeable during cold engine operation. While not immediately detrimental to engine function, these leaks can affect emissions and, if severe, reduce engine efficiency. Additionally, instances of spark plug tube seals leaking oil into the spark plug wells have been observed, which can lead to misfires if oil fouls the spark plugs.
With proper and diligent maintenance, the VK56DE engine is capable of achieving a significant service life, often exceeding 200,000 miles (320,000 km) before requiring a major overhaul. Proactive addressing of known issues, such as timing chain noise, is crucial for maximizing its operational lifespan.
Maintenance Tips & Service Schedule
Maintaining the VK56DE engine according to manufacturer recommendations is critical for its longevity and performance:
- Engine Oil & Filter: Perform oil and filter changes every 5,000 to 7,500 miles (8,000-12,000 km) or every 6 months, whichever comes first. Use a high-quality full synthetic engine oil with a viscosity of 5W-30 or 0W-30, meeting API SN or SP specifications.
- Spark Plugs: Replace iridium-tipped spark plugs every 105,000 miles (168,000 km). Inspect spark plug tube seals for leaks during this service.
- Coolant Flush: The engine cooling system should be flushed and refilled with suitable Nissan/Infiniti specified long-life coolant every 60,000 miles (96,000 km) or 5 years.
- Air Filter: Inspect the engine air filter annually and replace it every 15,000-30,000 miles (24,000-48,000 km), depending on driving conditions.
- Accessory Drive Belts: Inspect serpentine belts for cracks or wear every 30,000 miles (48,000 km) and replace as necessary, typically around 60,000-90,000 miles (96,000-144,000 km).
- Timing Chain: While no specific replacement interval is mandated, the timing chain and associated components should be inspected for excessive slack or noise at higher mileages, especially if audible rattling is present.
Conclusion
The Infiniti VK56DE engine presents a generally reliable and powerful option for a used vehicle buyer seeking a full-size SUV or truck. Its robust design and strong performance characteristics are undeniable assets. However, prospective buyers should prioritize vehicles with a comprehensive service history, paying particular attention to evidence of proper oil changes and any records pertaining to timing chain guide/tensioner inspection or replacement, especially on models from its earlier production years. With attentive maintenance and a proactive approach to addressing its known wear items, the VK56DE can continue to provide dependable service for many years and miles.
