Overview & Design Features

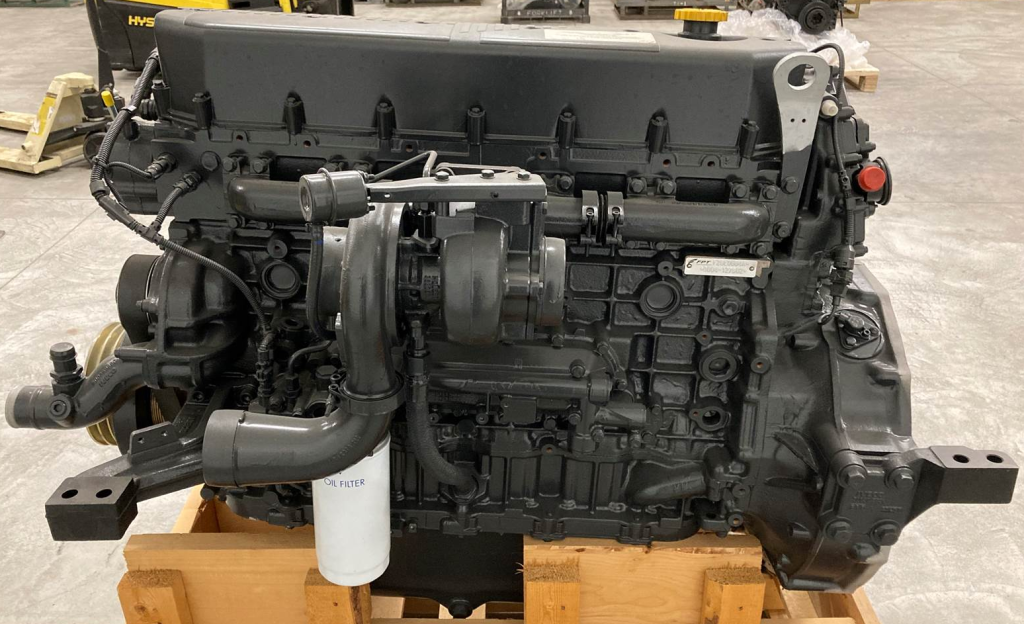

The IVECO F2BE0684A is a prominent 3.0-liter (2998 cc) inline-four cylinder turbocharged diesel engine, a distinguished member of IVECO’s F1C engine family. Renowned for its robust construction and high performance, this engine is specifically engineered for demanding light commercial vehicle applications, prioritizing durability, fuel efficiency, and substantial torque output. Its widespread deployment across various IVECO models has cemented its reputation as a workhorse in the commercial transport sector, offering a blend of power and operational reliability crucial for daily heavy-duty tasks.
At its core, the F2BE0684A features a strong cast-iron cylinder block coupled with an aluminum alloy cylinder head, optimizing both strength and weight. It employs a common rail direct injection fuel system, typically managed by Bosch or Denso, ensuring precise fuel delivery and combustion efficiency. The engine benefits from a Dual OverHead Camshaft (DOHC) valvetrain, actuating four valves per cylinder for superior breathing. A variable geometry turbocharger (VGT) enhances responsiveness across the RPM range, while a chain-driven timing system offers long-term reliability. Advanced emissions control systems, including Exhaust Gas Recirculation (EGR) and a Diesel Particulate Filter (DPF), enable compliance with stringent Euro 5 and Euro 6 standards, contributing to reduced environmental impact.
This specific iteration of the IVECO 3.0L F1C engine was primarily deployed in the IVECO Daily light commercial vehicle series. It powered various configurations of the Daily from approximately 2006 through later generations, including models designated as 35S, 50C, and 70C, spanning different gross vehicle weight ratings. Depending on the specific market and emission regulations, the F2BE0684A was available in multiple power outputs, catering to a broad spectrum of commercial needs from panel vans to chassis cabs and minibuses.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 2998 |
| Max Power (hp (kW) @ RPM) | 140-205 hp (103-150 kW) @ 3500-3800 RPM (varies by tune) |
| Max Torque (Nm (kg*m) @ RPM) | 350-470 Nm (35.7-47.9 kg*m) @ 1400-2800 RPM (varies by tune) |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to manufacturer’s technical documentation |
| Engine Type | Inline 4-cylinder, DOHC, Common Rail Direct Injection, Turbocharged Diesel |
| Compression Ratio | 17.5:1 |
| Cylinder Bore (mm) | 95.8 |
| Piston Stroke (mm) | 104 |
| Valvetrain | DOHC, Chain-driven |
| Valves per Cylinder | 4 |
| Additional Info | Variable Geometry Turbocharger (VGT), Exhaust Gas Recirculation (EGR), Diesel Particulate Filter (DPF) |
Common Problems & Reliability
- EGR System Malfunctions: Due to the nature of diesel combustion and soot accumulation, the EGR valve and cooler can become clogged or fail over time. Symptoms include reduced engine performance, increased emissions, and illuminated check engine lights. Regular inspection and cleaning or replacement are often necessary, especially for vehicles frequently operating in stop-and-go conditions.
- DPF Clogging: The Diesel Particulate Filter is susceptible to clogging if the vehicle is not driven sufficiently at highway speeds to allow for passive or active regeneration cycles. Persistent short-distance driving can lead to DPF saturation, requiring forced regeneration by a service center or, in severe cases, replacement, which can be costly.
- Injector Wear: While generally robust, high-mileage examples or those exposed to poor fuel quality may experience wear in the common rail injectors. This can manifest as rough idling, misfires, reduced fuel efficiency, and excessive smoke from the exhaust. Diagnosis typically involves specialized equipment to test injector spray patterns and flow rates.
Under proper and diligent maintenance, the IVECO F2BE0684A engine is engineered for exceptional longevity. An expected service life of 500,000 kilometers (approximately 300,000 miles) or more before requiring a major overhaul is realistic, a testament to its heavy-duty design and commercial application focus.
Maintenance Tips & Service Schedule
- Engine Oil & Filter: Utilize high-quality, low-SAPS (Sulphated Ash, Phosphorus, Sulfur) synthetic diesel engine oil, typically meeting ACEA C3 or C4 specifications, with a viscosity such as 5W-30 or 5W-40. Change intervals should adhere to manufacturer recommendations, generally every 20,000 kilometers (12,500 miles) or annually, whichever comes first. For vehicles subjected to severe duty (e.g., heavy loads, frequent towing, extreme temperatures), consider shorter intervals.
- Fuel Filter: Replace the fuel filter every 40,000 to 60,000 kilometers (25,000 to 37,000 miles) to ensure clean fuel delivery and protect the precision common rail injection system.
- Air Filter: Inspect and replace the air filter every 40,000 to 60,000 kilometers, or more frequently in dusty environments, to maintain optimal air intake and combustion efficiency.
- Coolant Flush: The engine coolant should be flushed and replaced every 3 to 5 years or 100,000 to 150,000 kilometers, using an OAT (Organic Acid Technology) coolant specified for heavy-duty diesel engines, to prevent corrosion and maintain cooling system integrity.
- Timing Chain: The timing chain is designed for the life of the engine under normal conditions. However, regular monitoring for unusual noise or excessive stretch is prudent during higher mileage services, typically starting around 250,000 kilometers (150,000 miles). Replacement is only necessary if signs of wear are detected.
- DPF Management: Ensure the vehicle is regularly driven for extended periods at highway speeds to facilitate automatic DPF regeneration. If operating predominantly in urban environments, be prepared for more frequent forced regenerations or potential DPF servicing.
Conclusion
The IVECO F2BE0684A stands as a highly commendable choice for a used vehicle, particularly within the light commercial segment, owing to its engineered robustness and proven longevity. Its design for demanding applications means it is built to endure high mileage and continuous operation. Provided a prospective buyer ensures a thorough inspection reveals no neglected maintenance issues, especially concerning the EGR and DPF systems, and that a consistent service history is verifiable, this engine represents a reliable and powerful heart for any commercial vehicle. Its reputation for durability makes it a solid investment for those seeking a dependable workhorse.
