Overview & Design Features

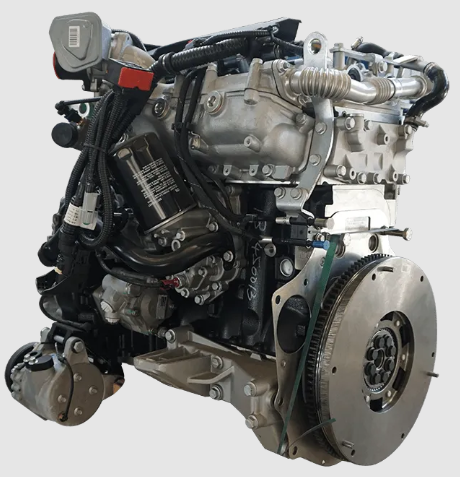

The IVECO F1CE34818 is a robust 3.0-liter (2998 cc) inline four-cylinder, 16-valve turbocharged diesel engine developed by IVECO for its light commercial vehicle range. Part of the F1C engine family, this particular variant gained prominence for its impressive blend of power, torque, and durability, especially within the demanding commercial transport sector. Engineered for sustained high-load operation and long service intervals, it represents IVECO’s commitment to efficiency and reliability in commercial applications.
At its core, the F1CE34818 features a high-strength cast iron cylinder block paired with an aluminium alloy cylinder head, ensuring structural rigidity and optimal heat dissipation. Fuel delivery is managed by a sophisticated Common Rail direct injection system, typically employing Bosch components, which allows for precise fuel atomization and combustion control across varying engine speeds and loads. A chain-driven Double Overhead Camshaft (DOHC) valvetrain actuates 16 valves (four per cylinder), optimizing airflow for enhanced performance and emissions compliance. Forced induction is provided by a variable geometry turbocharger (VGT), which significantly boosts low-end torque and overall power output while improving fuel economy and responsiveness. An intercooler is integrated into the system to cool the compressed air, further increasing combustion efficiency.
This specific iteration of the F1C engine was primarily deployed in various configurations of the IVECO Daily light commercial vehicle series. It powered numerous Daily models, including chassis cabs, vans, and crew cabs, particularly those requiring substantial towing or payload capacities. Common applications spanned from approximately 2011 onwards, covering Euro 5 and later Euro 6 emissions standards, in trims such as the Daily 35C, 50C, and 70C, where the “C” denotes its commercial-grade chassis. The F1CE34818 also found extensive use in motorhome chassis based on the Daily platform, valued for its strong performance and reliability over long distances.
Technical Specifications
| Displacement | 2998 cc |
| Max Power | 170 hp (125 kW) @ 3500 RPM (typical) |
| Max Torque | 400 Nm (40.8 kg*m) @ 1250-3000 RPM (typical) |
| Fuel Type | Diesel |
| Fuel Consumption | Refer to manufacturer’s technical documentation; highly dependent on vehicle application and load. (Typically 8.5-12.0 l/100 km combined for LCVs) |
| Engine Type | Inline 4-cylinder, DOHC, Common Rail Diesel, Turbocharged, Intercooled |
| Compression Ratio | 17.5:1 |
| Cylinder Bore | 95.8 mm |
| Piston Stroke | 104 mm |
| Valvetrain | DOHC, Chain-driven |
| Valves per Cylinder | 4 (16 valves total) |
| Additional Info | Common Rail Direct Injection, Variable Geometry Turbocharger (VGT), Exhaust Gas Recirculation (EGR), Diesel Particulate Filter (DPF) for emissions compliance. |
Common Problems & Reliability
The IVECO F1CE34818 is generally regarded as a highly durable engine designed for commercial duty, offering significant reliability when properly maintained. However, like many modern turbocharged diesel engines, certain common issues can arise, often related to emissions control systems or neglected maintenance.
- EGR Valve and DPF Blockages: The Exhaust Gas Recirculation (EGR) valve and Diesel Particulate Filter (DPF) are susceptible to carbon buildup and blockages, especially in vehicles used for frequent short journeys or extensive urban driving. This can lead to reduced performance, increased fuel consumption, and dashboard warning lights. Regular long-distance driving facilitates DPF regeneration and helps mitigate EGR issues.
- Fuel Injector Wear: While robust, the Common Rail fuel injectors can experience wear over high mileage or due to contaminated fuel. Symptoms include rough idling, misfires, excessive smoke, and starting difficulties. Regular replacement of fuel filters and using high-quality diesel fuel are crucial preventative measures.
- Turbocharger Bearing Wear: As a hard-working engine, the variable geometry turbocharger operates under high heat and rotational speeds. Insufficient oil changes or using incorrect oil viscosity can accelerate wear of the turbocharger bearings, leading to whining noises, reduced boost, and excessive oil consumption.
With diligent maintenance and appropriate operating conditions, the F1CE34818 is capable of achieving an impressive service life. It is not uncommon for well-maintained examples to exceed 400,000 to 600,000 kilometers (approximately 250,000 to 375,000 miles) before requiring a major overhaul.
Maintenance Tips & Service Schedule
Adhering to a strict maintenance schedule is paramount for the longevity and reliable operation of the IVECO F1CE34818 engine.
- Engine Oil and Filter: Perform oil changes using a high-quality, synthetic diesel engine oil conforming to manufacturer specifications (e.g., ACEA C3, E6, or E7, with viscosity such as 5W-30 or 5W-40). Intervals typically range from 20,000 to 40,000 kilometers (12,000-25,000 miles) or every 12-24 months, depending on operating conditions and the vehicle’s service plan. For heavy-duty use, shorter intervals are recommended.
- Fuel Filter: Replace the fuel filter every 30,000 to 60,000 kilometers (18,000-37,000 miles). This is critical for protecting the high-pressure Common Rail injection system from contaminants.
- Air Filter: Inspect and replace the air filter every 40,000 kilometers (25,000 miles) or annually, especially in dusty environments, to ensure optimal engine breathing and fuel efficiency.
- Coolant System: Flush and replace engine coolant every 3-5 years or as specified by the manufacturer. Use an approved long-life coolant to prevent corrosion and maintain thermal efficiency.
- Timing Chain: The F1CE34818 utilizes a robust timing chain system designed for the life of the engine. Regular scheduled replacement is not typically required. However, inspection for wear or noise is advisable around 200,000-300,000 kilometers (125,000-185,000 miles) and replacement if any issues are detected.
- EGR and DPF System: Monitor warning lights related to these systems. Ensure the vehicle is regularly driven at highway speeds to allow for passive and active DPF regeneration. Professional cleaning of the EGR valve or DPF may be necessary if blockages occur.
Conclusion
The IVECO F1CE34818 engine stands as a strong contender for those seeking a durable and powerful diesel unit within a used commercial vehicle or motorhome. Its engineering is geared towards heavy-duty operation and longevity, making it a generally reliable choice. Potential buyers should prioritize vehicles with a comprehensive service history, paying particular attention to oil change records and any maintenance related to the DPF, EGR, and fuel injection system. When properly cared for, this engine offers a robust platform, delivering impressive performance and a long operational life, thus representing a sound investment in a used vehicle.
