Overview & Design Features

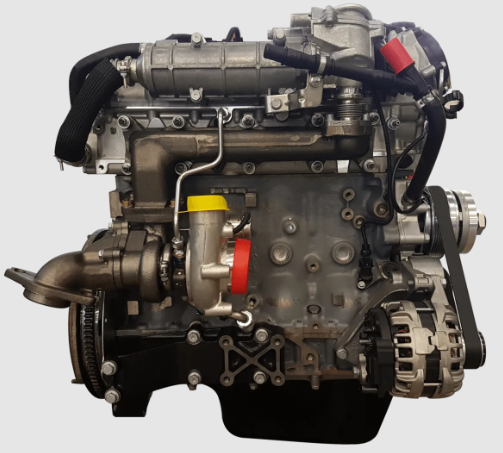

The IVECO F1CE0481F engine is a prominent 3.0-liter, inline four-cylinder, 16-valve common rail turbodiesel unit, manufactured by IVECO, a leading global producer of light, medium, and heavy commercial vehicles. This engine, part of the robust F1C family, has garnered a reputation for its exceptional durability, high torque output, and suitability for demanding commercial applications. Its design prioritizes longevity and efficiency, making it a cornerstone for many light commercial vehicles requiring substantial pulling power and consistent performance under varying load conditions.
Engineering features of the F1CE0481F include a sturdy cast iron cylinder block paired with an aluminum alloy cylinder head, optimizing both strength and heat dissipation. A double overhead camshaft (DOHC) valvetrain with four valves per cylinder ensures efficient gas flow and combustion. The engine employs a high-pressure common rail direct injection system, capable of operating at pressures up to 2000 bar, which precisely meters fuel for improved combustion efficiency and reduced emissions. Many variants are equipped with a variable geometry turbocharger (VGT), enhancing responsiveness across the entire RPM range and contributing to better fuel economy. Modern versions integrate advanced emissions control technologies, including Exhaust Gas Recirculation (EGR) and Diesel Particulate Filters (DPF), to meet stringent Euro 5 and Euro 6 standards.
The IVECO F1CE0481F engine has been extensively deployed across various generations of the IVECO Daily light commercial vehicle range, typically from the mid-2000s onwards, including specific Euro 4, Euro 5, and Euro 6 iterations. Its robustness has also seen it adopted in certain heavy-duty versions of the Fiat Ducato, particularly for demanding applications, as well as being a popular choice for motorhome chassis due to its reliability and strong low-end torque. Specific model years and trims leveraging this engine often highlight its superior performance ratings compared to smaller displacement options within these vehicle lines.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 2998 |
| Max Power (hp (kW) @ RPM) | 170 (125) @ 3500 (typical high-output variant) |
| Max Torque (Nm (kg*m) @ RPM) | 400 (40.8) @ 1250-3000 (typical high-output variant) |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Highly variable; refer to specific vehicle documentation |
| Engine Type | Inline-4, Turbocharged Diesel, Common Rail Direct Injection |
| Compression Ratio | 17.5:1 |
| Cylinder Bore (mm) | 95.8 |
| Piston Stroke (mm) | 104 |
| Valvetrain | DOHC, 16-valve, Chain-driven |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Variable Geometry Turbocharger (VGT) on most variants, EGR, DPF |
Common Problems & Reliability
The IVECO F1CE0481F is generally considered a highly reliable and durable engine, capable of enduring significant mileage. However, like all modern diesels, it has specific areas that require attention. A common issue revolves around the Exhaust Gas Recirculation (EGR) valve and Diesel Particulate Filter (DPF) system. Carbon buildup in the EGR valve can lead to reduced engine performance and efficiency, while frequent short trips can prevent the DPF from completing regeneration cycles, leading to clogging and costly replacements. Another area of concern can be the common rail fuel injectors. Over extended periods, or with inconsistent fuel quality, injectors can wear, leading to poor atomization, reduced fuel economy, misfires, or even engine damage if left unaddressed. Finally, while the turbocharger is robust, it operates under high stress and can eventually wear out at very high mileages or if oil changes are neglected, potentially leading to oil leaks or reduced boost pressure. Under proper care and maintenance, the F1CE0481F engine typically achieves an impressive service life of 300,000 to 500,000 kilometers (180,000 to 300,000 miles) before requiring a major overhaul.
Maintenance Tips & Service Schedule
Proactive and consistent maintenance is paramount for ensuring the longevity and optimal performance of the IVECO F1CE0481F. Engine oil and filter changes are critical; using a high-quality synthetic oil meeting ACEA C3 or C4 specifications, with a viscosity of 5W-30 or 5W-40, is recommended every 20,000 to 40,000 kilometers (12,500 to 25,000 miles) or every 12-24 months, depending on the manufacturer’s specific guidelines for vehicle usage and duty cycle (shorter intervals for heavy-duty applications). The fuel filter, vital for protecting the high-pressure common rail system, should be replaced every 20,000 to 40,000 kilometers. The air filter requires replacement approximately every 40,000 to 60,000 kilometers. Coolant flushes are recommended every 4-5 years or 100,000-150,000 kilometers. The timing chain, designed for the engine’s lifespan, typically requires inspection only at very high mileages (e.g., 250,000 kilometers) and replacement only if excessive wear or noise is evident. For vehicles predominantly used in urban settings, proactive DPF monitoring and occasional forced regeneration or professional cleaning of the EGR system can prevent costly issues.
Conclusion
The IVECO F1CE0481F engine stands out as a highly capable and reliable diesel powerplant, ideally suited for the rigorous demands of commercial transport and heavy-duty applications. Its robust design, combined with strong torque output and proven longevity, makes it an excellent choice for a used vehicle, provided its service history is well-documented and consistent. Potential buyers should prioritize vehicles with a clear maintenance record, particularly regarding oil changes, fuel filter replacements, and any documented DPF or EGR system servicing. With diligent adherence to the recommended maintenance schedule, this engine can deliver many years and hundreds of thousands of kilometers of dependable service, reaffirming its reputation as a workhorse in the light commercial vehicle segment.
