Overview & Design Features

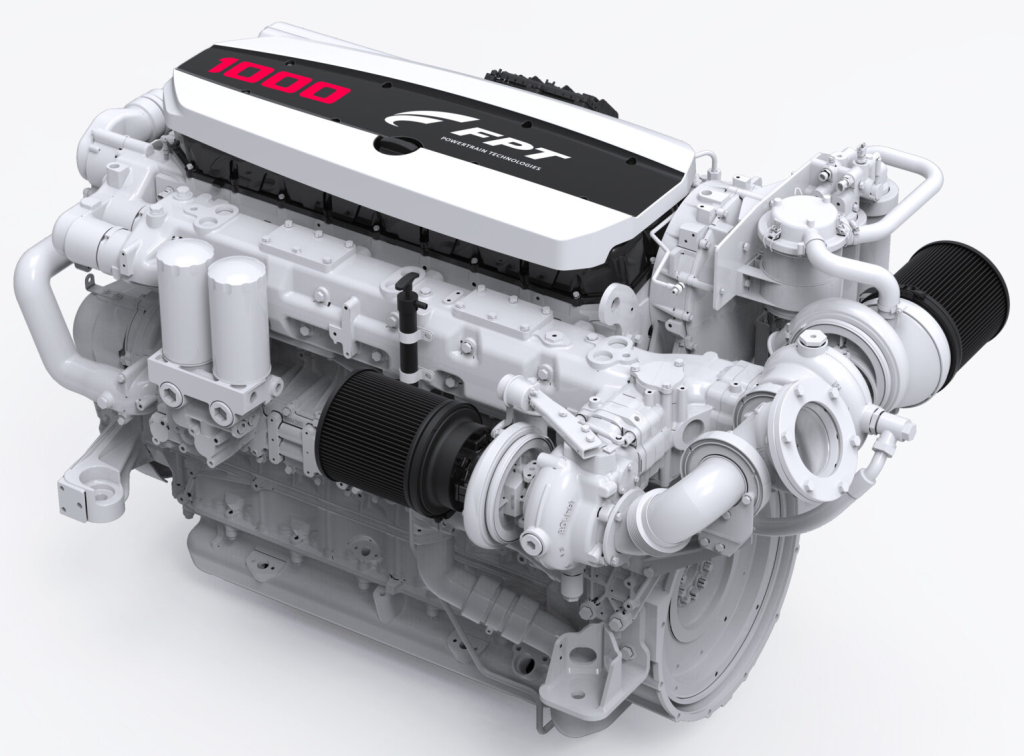

The IVECO FPT C16 Cursor 815 Diesel Marine engine is a robust and high-performance power unit designed for heavy-duty marine applications. Manufactured by FPT Industrial (Fiat Powertrain Technologies), a global leader in engines, axles, and transmissions, the C16 Cursor 815 represents the pinnacle of their Cursor series in terms of displacement and output for marine use. With a displacement of 16 liters and an inline-six cylinder configuration, this engine is engineered for continuous operation, reliability, and fuel efficiency in demanding marine environments, from commercial vessels to large luxury yachts and workboats.
This engine incorporates advanced engineering features to ensure its exceptional performance and longevity. The cylinder block and head are constructed from robust cast iron, providing superior structural rigidity and excellent heat dissipation crucial for sustained high-load marine operation. Fuel delivery is managed by a state-of-the-art Common Rail Direct Injection (CRDI) system, which precisely controls fuel atomization and timing for optimal combustion, lower emissions, and improved fuel economy. Air intake is enhanced by a sophisticated turbocharging system, often employing a wastegated or variable geometry turbocharger for efficient power delivery across a wide RPM range, complemented by an intercooler to maximize air density. The valvetrain typically features an overhead camshaft (OHC) design with four valves per cylinder, optimizing volumetric efficiency.
The IVECO FPT C16 Cursor 815 Diesel Marine engine is primarily deployed in a wide array of marine vessels requiring substantial and reliable power. Its applications include propulsion in large fishing vessels, patrol boats, commercial passenger ferries, powerful workboats, and as auxiliary power units or main propulsion in high-end leisure yachts. Production of various C16 Cursor configurations, including the 815 variant, has spanned several years, establishing its presence across a diverse global marine fleet.
Technical Specifications
| Displacement (cc) | 15926 cc (15.9 L) |
| Max Power (hp (kW) @ RPM) | 815 hp (600 kW) @ 2300 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 2950 Nm (300 kg*m) @ 1500 RPM |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Typical for heavy-duty marine diesel engines; consult FPT documentation for specific load profiles (often expressed in g/kWh or l/hr). |
| Engine Type | Inline 6-cylinder, Turbocharged, Intercooled, Common Rail Direct Injection Diesel |
| Compression Ratio | 16.5:1 |
| Cylinder Bore (mm) | 141 mm |
| Piston Stroke (mm) | 170 mm |
| Valvetrain | Overhead Camshaft (OHC) |
| Valves per Cylinder | 4 |
| Additional Info | Electronic Engine Management, Robust Cast Iron Construction, IMO MARPOL Tier II/III Compliant (with SCR), DNV-GL Certified |
Common Problems & Reliability
- Fuel System Contamination and Injector Issues: While the Common Rail system is efficient, its precision makes it susceptible to poor fuel quality, water ingress, or particulate contamination, which can lead to clogged injectors, high-pressure pump wear, and reduced performance. Regular monitoring and filtration are critical.
- Turbocharger Wear: Over extensive operational hours, especially under continuous high loads, turbocharger bearings and seals can experience wear. Symptoms include excessive smoke, reduced boost pressure, and increased oil consumption. Timely inspection and proper cool-down procedures are essential.
- Cooling System Degradation: Marine environments expose cooling systems to salt water and aggressive conditions. Heat exchanger corrosion, raw water pump impeller wear, and blockages in cooling passages can lead to overheating if not meticulously maintained and regularly inspected.
The IVECO FPT C16 Cursor 815 Diesel Marine engine is renowned for its exceptional durability and longevity. With diligent adherence to manufacturer-recommended maintenance schedules, proper operating conditions, and the use of quality fuels and lubricants, this engine can realistically achieve 20,000 to 30,000 operational hours or more before requiring a major overhaul.
Maintenance Tips & Service Schedule
- Engine Oil & Filter Changes: Replace engine oil and oil filters every 250-500 operating hours or annually, whichever comes first. Use high-quality synthetic or semi-synthetic diesel engine oil conforming to API CI-4 or CJ-4 specifications, typically a 15W-40 viscosity, suitable for heavy-duty marine applications.
- Fuel Filter Replacement: Given the criticality of the common rail system, replace primary and secondary fuel filters every 250 hours. Regularly drain water separators to prevent fuel contamination.
- Cooling System Maintenance: Inspect raw water impeller annually and replace every 2 years or 1000 hours. Flush the raw water cooling system and inspect heat exchangers for corrosion or blockages every 500-1000 hours. Ensure the freshwater coolant is changed every 2-3 years, using an extended-life marine-grade coolant with corrosion inhibitors.
- Air Filter Inspection: Check and clean the engine air filter element every 250 hours, replacing it as necessary based on operational environment and visual inspection, typically every 500-1000 hours.
- Valve Lash Adjustment: Refer to the manufacturer’s specific guidelines, but valve lash inspection and adjustment may be required every 1000-2000 hours to maintain optimal engine breathing and performance.
- Belt & Hose Inspection: Annually inspect all drive belts for tension and wear, and all coolant and fuel hoses for cracks, leaks, or hardening. Replace as needed.
Conclusion
The IVECO FPT C16 Cursor 815 Diesel Marine engine stands as a testament to robust engineering and dependable performance in the demanding marine sector. Its high displacement, advanced Common Rail Direct Injection system, and heavy-duty construction contribute to its reputation for efficiency, power delivery, and remarkable longevity. For a used vessel buyer, this engine represents a highly reliable and safe choice, provided there is a verifiable history of diligent maintenance and adherence to service schedules. Its proven track record in various commercial and leisure marine applications underscores its capability to deliver consistent, powerful, and enduring service with proper care.
