Overview & Design Features

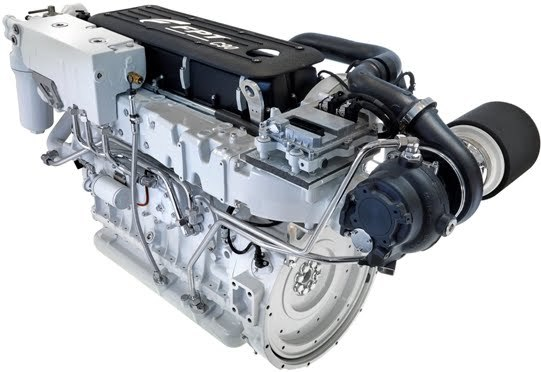

The IVECO FPT Cursor C90 380 Diesel Marine engine represents a robust and technologically advanced power plant within FPT Industrial’s acclaimed Cursor series. FPT Industrial, a brand of CNH Industrial dedicated to industrial powertrain design and manufacturing, developed this engine primarily for demanding marine applications. Featuring an inline six-cylinder configuration and an 8.7-liter displacement, the C90 380 hp variant is engineered for reliability, fuel efficiency, and compliance with stringent marine emissions standards.
At its core, the C90 engine features a sturdy cast iron cylinder block ensuring structural rigidity and durability under continuous high-load operation. The cylinder head is also typically cast iron, designed to withstand the thermal stresses inherent in diesel combustion. Fuel delivery is managed by a latest-generation Common Rail Direct Injection (CRDI) system, which precisely controls fuel atomization and timing for optimal combustion efficiency and reduced emissions. This engine utilizes a single overhead camshaft (SOHC) valvetrain with four valves per cylinder, a proven design balancing performance with long-term reliability and straightforward maintenance.
The FPT Cursor C90 380 Diesel Marine engine has found widespread deployment across various marine sectors. It is commonly specified for leisure yachts and sport fishing vessels requiring dependable power for cruising and demanding maneuvers. Furthermore, its robust design and operational efficiency make it suitable for commercial applications such as fishing boats, passenger ferries, and patrol vessels, where uptime and low running costs are paramount. Specific boat models fitted with this engine often include those from builders specializing in medium-to-large recreational and light-commercial craft.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 8700 |
| Max Power (hp (kW) @ RPM) | 380 (279) @ 2000 |
| Max Torque (Nm (kg*m) @ RPM) | 1200 (122.3) @ 1200 |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to manufacturer’s technical documentation |
| Engine Type | Inline 6-cylinder, Turbocharged, Aftercooled |
| Compression Ratio | 17:1 |
| Cylinder Bore (mm) | 117 |
| Piston Stroke (mm) | 135 |
| Valvetrain | SOHC |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, SOLAS (Safety of Life at Sea) compliant variants available. |
Common Problems & Reliability
The FPT Cursor C90 380 Diesel Marine engine is generally regarded for its high reliability and robust construction, typical of heavy-duty industrial designs. However, specific areas warrant attention over its operational life. The sophisticated Common Rail fuel system, while efficient, can be susceptible to issues stemming from poor fuel quality, leading to premature wear of injectors or the high-pressure fuel pump. Regular inspection and replacement of fuel filters are critical to mitigate these risks.
Turbocharger longevity can also be influenced by operating conditions and maintenance practices. Excessive exhaust gas temperatures or insufficient lubrication can shorten its lifespan. Furthermore, the marine environment poses unique challenges; components such as heat exchangers and cooling systems are vulnerable to corrosion and blockages from marine growth or sediment, potentially leading to overheating if not regularly inspected and cleaned. With diligent maintenance and proper operation, the C90 engine can achieve a service life exceeding 8,000 to 15,000 operational hours before requiring a major overhaul, depending on the load profile and environmental factors.
Maintenance Tips & Service Schedule
Maintaining the IVECO FPT Cursor C90 380 Diesel Marine engine according to manufacturer guidelines is paramount for extending its service life and ensuring optimal performance. Engine oil and oil filter changes are recommended every 200-300 operating hours or annually, whichever comes first. High-quality marine-grade diesel engine oil, typically an API CI-4 or CJ-4 rated 15W-40 viscosity, should be used.
Fuel filters (both primary and secondary) must be inspected and replaced regularly, often every 100-200 hours, especially if fuel quality is variable. Air filter inspection and replacement are typically performed annually or every 500 hours. The cooling system requires periodic attention, including checking coolant levels, inspecting hoses, and flushing the system with marine-grade extended-life coolant every 2-3 years or 1000 hours. Sacrificial anodes within the cooling system and heat exchanger must be checked and replaced as needed. Inspection of the drive belt for tension and wear should be part of every pre-operation check, with replacement every 500-1000 hours or as wear dictates. The stern gland (if applicable) and exhaust system should also be checked for leaks and integrity during routine servicing.
Conclusion
The IVECO FPT Cursor C90 380 Diesel Marine engine is a highly capable and generally reliable power plant for a range of marine vessels. Its robust construction, modern Common Rail injection system, and proven inline-six configuration contribute to strong performance and fuel efficiency. For a used vessel buyer, this engine can be a very safe and reliable choice, provided a comprehensive service history is available and it has been diligently maintained. Thorough pre-purchase inspection by a qualified marine mechanic is always recommended to assess the condition of the fuel system, turbocharger, and cooling components, ensuring a sound investment in a durable marine engine.
