Overview & Design Features

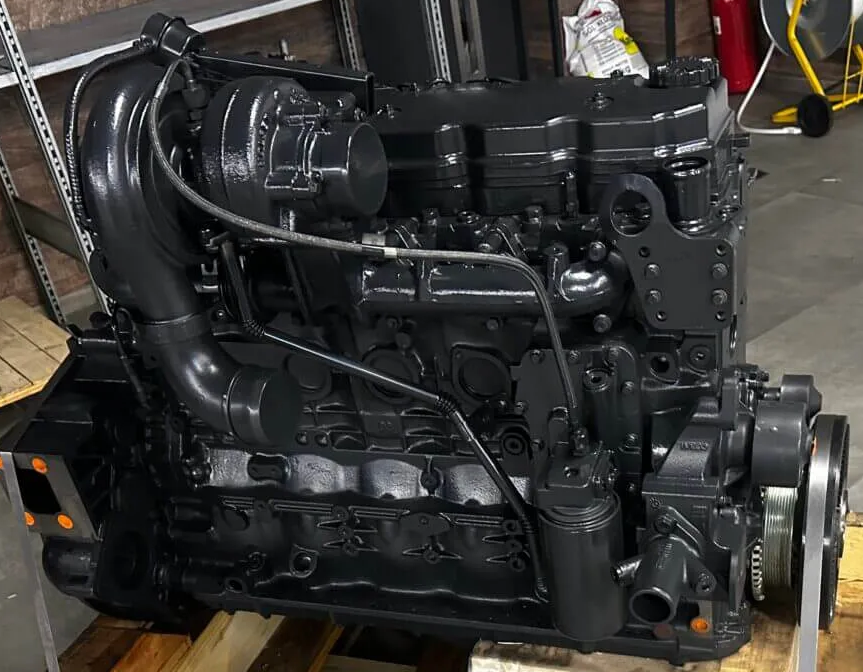

The IVECO F4HFA615A is a robust, high-performance diesel engine developed by IVECO (Industrial Vehicles Corporation) and part of the esteemed FPT (Fiat Powertrain Technologies) Cursor 9 family. Known for its strong industrial heritage, this engine variant typically features a substantial 8.7-liter (8700 cc) displacement, configured as an inline six-cylinder powerplant. It represents a cornerstone of IVECO’s commitment to durability, efficiency, and sustained power output in demanding commercial and industrial applications, embodying decades of engineering excellence aimed at heavy-duty performance.
Engineered for relentless operation, the F4HFA615A utilizes a sturdy cast-iron cylinder block and a high-strength cast-iron cylinder head, designed to withstand intense thermal and mechanical stresses. It employs an advanced Common Rail Direct Injection (CRDI) fuel system, precisely managed by an Electronic Control Unit (ECU) to optimize combustion efficiency, fuel economy, and emissions control. The valvetrain typically features a Single Overhead Camshaft (SOHC) design with four valves per cylinder, contributing to efficient gas flow and improved engine breathing. Forced induction is provided by a wastegate-controlled turbocharger, often complemented by an intercooler, ensuring optimal air density for enhanced power and torque delivery across the operational range.
The IVECO F4HFA615A engine has been extensively deployed across a range of heavy-duty commercial vehicles and specialized industrial machinery. Primary applications include various iterations of the IVECO Stralis and IVECO Trakker heavy trucks, serving in regional, long-haul, and off-road capacities from approximately 2013 onwards, depending on market and emission standards (Euro VI variants). It is also found in specific trims of the IVECO Eurocargo, particularly those requiring higher power outputs, and in certain agricultural and construction equipment from sister brands under CNH Industrial (e.g., New Holland, Case CE) where its robust nature and torque characteristics are highly beneficial.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 8700 cc (8.7 L) |
| Max Power (hp (kW) @ RPM) | 310-400 hp (228-294 kW) @ 1650-2200 RPM (variant dependent) |
| Max Torque (Nm (kg*m) @ RPM) | 1300-1700 Nm (132.6-173.3 kg*m) @ 1200-1600 RPM (variant dependent) |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to manufacturer’s technical documentation (highly dependent on application and load) |
| Engine Type | Inline 6-Cylinder, Turbocharged, Intercooled Diesel |
| Compression Ratio | Refer to manufacturer’s technical documentation (typically around 16.5:1 to 17.5:1 for heavy-duty diesel) |
| Cylinder Bore (mm) | 117 mm |
| Piston Stroke (mm) | 135 mm |
| Valvetrain | SOHC (Single Overhead Camshaft) |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Wastegate Turbocharger, EGR, SCR (for Euro V/VI) |
Common Problems & Reliability
The IVECO F4HFA615A, like many heavy-duty diesel engines, is generally regarded for its durability. However, specific areas warrant attention. One common concern can be the SCR (Selective Catalytic Reduction) system and DPF (Diesel Particulate Filter) components, particularly in vehicles operating in stop-and-go conditions or with extended idling. Malfunctions in these systems, often due to sensor failures or contamination from poor quality DEF (Diesel Exhaust Fluid), can lead to reduced engine power (limp mode) and costly repairs.
Another area of potential concern involves the Common Rail high-pressure fuel system components. Injectors, the high-pressure pump, and fuel rail pressure sensors can exhibit wear or failure over extended mileage, often exacerbated by inconsistent fuel quality or inadequate fuel filter maintenance. Symptoms include rough idling, misfires, reduced power, or increased fuel consumption. Lastly, turbocharger wear, while less common than fuel system issues, can occur, especially in engines subjected to harsh operating conditions or improper cool-down procedures after heavy loads. This typically manifests as excessive smoke, loss of boost pressure, or unusual noises.
Under proper maintenance and typical heavy-duty usage, the IVECO F4HFA615A engine can realistically achieve a service life of 800,000 to 1,200,000 kilometers (approximately 500,000 to 750,000 miles) before requiring a major overhaul, such as piston rings, bearings, or cylinder liner replacements.
Maintenance Tips & Service Schedule
Effective maintenance is paramount for maximizing the lifespan and reliability of the IVECO F4HFA615A engine. Adherence to manufacturer-specified intervals and using high-quality fluids and parts are critical.
- Engine Oil & Filter Change: Perform every 40,000 to 60,000 kilometers (25,000 to 37,000 miles) or annually, whichever comes first. For severe duty cycles, intervals may be shorter. Use a high-grade synthetic or semi-synthetic diesel engine oil that meets ACEA E6 or E9 specifications, with a viscosity such as 10W-40 or 5W-30, depending on ambient temperatures and manufacturer recommendations.
- Fuel Filters: Replace primary and secondary fuel filters every 60,000 to 80,000 kilometers (37,000 to 50,000 miles) or as specified by the manufacturer, critically important for protecting the common rail system.
- Air Filter: Inspect regularly and replace every 80,000 to 120,000 kilometers (50,000 to 75,000 miles), or more frequently in dusty environments, to ensure optimal airflow and prevent premature engine wear.
- Coolant Flush: Drain and refill the cooling system every 2 to 4 years or 200,000 to 300,000 kilometers (125,000 to 186,000 miles), using an OAT (Organic Acid Technology) extended-life coolant specifically designed for heavy-duty diesel engines.
- Valvetrain Adjustment: Periodic valve lash inspection and adjustment, typically every 200,000 to 300,000 kilometers (125,000 to 186,000 miles), is essential to maintain optimal engine performance and efficiency.
- DEF System Maintenance: Ensure only high-quality, certified DEF fluid is used. Regularly check for crystallization around the DEF tank and injector, and address any SCR fault codes promptly.
Conclusion
The IVECO F4HFA615A engine stands as a testament to robust heavy-duty diesel engineering, offering substantial power and torque for demanding applications. Its strong build and design for commercial use suggest inherent reliability. For a used vehicle buyer, this engine can be a very safe and reliable choice, provided there is a verifiable history of consistent and proper maintenance. Potential buyers should prioritize a pre-purchase inspection that thoroughly examines the condition of the fuel system, turbocharger, and particularly the exhaust aftertreatment systems (DPF/SCR), as these represent the most common and potentially costly service items. With diligent upkeep, the F4HFA615A is well-capable of delivering many more kilometers of dependable service.
