Overview & Design Features

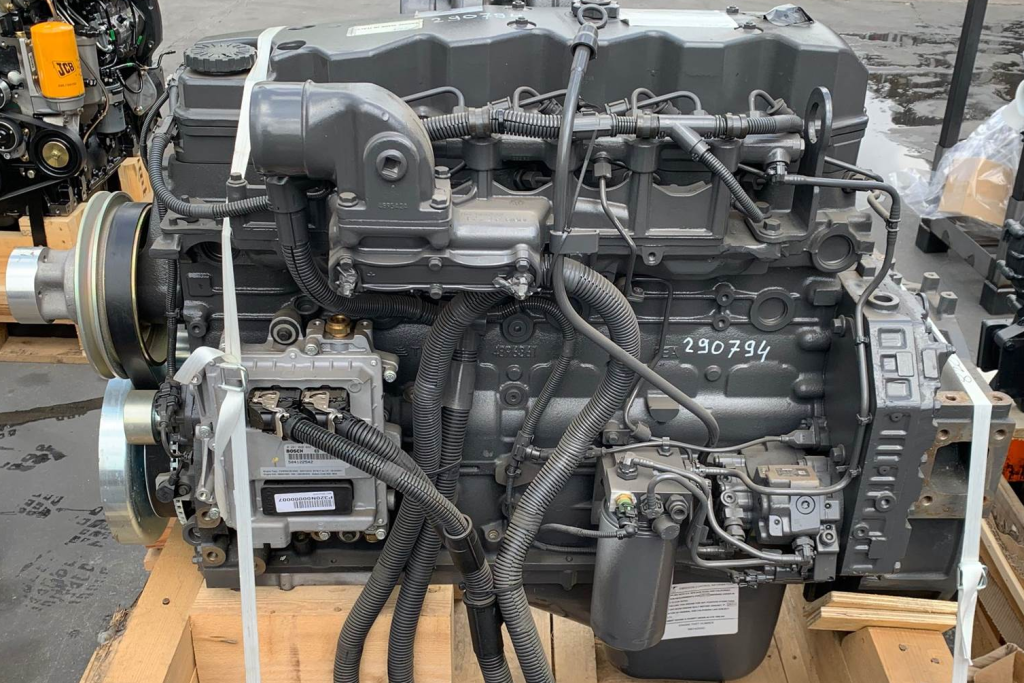

The IVECO F4HFE613S engine represents a robust and powerful diesel powerplant developed by the Italian multinational manufacturer IVECO, a key player in the commercial vehicle and industrial engine sectors. As part of IVECO’s acclaimed Cursor engine family, specifically a variant within the Cursor 9 series, this engine is characterized by its inline six-cylinder configuration and a displacement typically around 8.7 liters (8700 cubic centimeters). It is engineered for heavy-duty applications, prioritizing durability, fuel efficiency, and high torque output, making it a cornerstone for a range of commercial and industrial machinery.
Engineered for sustained performance, the F4HFE613S features a high-strength cast iron cylinder block and cylinder head, designed to withstand the immense pressures and temperatures inherent in modern diesel combustion. Fuel delivery is managed by a sophisticated common rail direct injection system, providing precise fuel atomization and combustion control for optimal power and reduced emissions. Air management is handled by a variable geometry turbocharger (VGT) paired with an intercooler, ensuring efficient air intake across varying engine speeds. The valvetrain typically incorporates an overhead camshaft design with four valves per cylinder, optimizing gas flow for improved volumetric efficiency.
This specific engine variant has been widely deployed across IVECO’s commercial vehicle lineup. Primary applications include various models of the IVECO Stralis heavy-duty truck, where it provided motive power for long-haul transport and demanding vocational tasks. It was also found in specific configurations of the IVECO Trakker, designed for off-road and construction applications, and certain IVECO Bus chassis, demonstrating its versatility and reliability in diverse operational environments. Production years for its widespread deployment primarily spanned the Euro V and early Euro VI emissions eras, reflecting its compliance with contemporary environmental standards.
Technical Specifications
| Displacement (cc) | 8700 cc |
| Max Power (hp (kW) @ RPM) | 360-400 hp (265-294 kW) @ 1900-2200 RPM (varies by calibration) |
| Max Torque (Nm (kg*m) @ RPM) | 1500-1700 Nm (153-173 kg*m) @ 1000-1500 RPM (varies by calibration) |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to manufacturer’s technical documentation (highly dependent on application and load) |
| Engine Type | Inline 6-Cylinder, Turbocharged, Intercooled Diesel |
| Compression Ratio | ~17.5:1 |
| Cylinder Bore (mm) | 117 mm |
| Piston Stroke (mm) | 135 mm |
| Valvetrain | SOHC (Single Overhead Camshaft) |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Variable Geometry Turbocharger (VGT), SCR (Selective Catalytic Reduction) and DPF (Diesel Particulate Filter) for emissions control. |
Common Problems & Reliability
The IVECO F4HFE613S, like many modern heavy-duty diesel engines, exhibits strong reliability when properly maintained. However, certain components are known areas of potential concern over extensive mileage. Firstly, issues related to the emissions control systems, specifically the Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR) system, can arise. Clogging of the DPF due to prolonged low-load operation or failure of the AdBlue (DEF) injection system can trigger limp-mode and costly repairs. Secondly, injector wear or failure can occur at high mileage, leading to rough running, reduced fuel economy, and potentially damage to other engine components if left unaddressed. Regular fuel filter replacement and use of quality fuel are crucial deterrents. Lastly, the EGR (Exhaust Gas Recirculation) valve and cooler can suffer from carbon buildup, leading to reduced engine performance and efficiency. Cleaning or replacement may be necessary.
Under a regime of diligent maintenance, using specified fluids and adhering to service intervals, the IVECO F4HFE613S engine is designed for an impressive operational lifespan. A realistic expected service life before requiring a major overhaul, such as piston rings, bearings, or cylinder liner replacement, typically ranges between 1,000,000 to 1,200,000 kilometers (approximately 620,000 to 750,000 miles) in commercial applications. Major component replacements like turbos or injectors may occur within this window, but the core engine block and rotating assembly are built for endurance.
Maintenance Tips & Service Schedule
Optimal performance and longevity of the IVECO F4HFE613S engine are contingent upon strict adherence to a manufacturer-recommended maintenance schedule and the use of appropriate parts and fluids. Key maintenance rules include:
- Engine Oil & Filter Change: Essential to use high-quality synthetic diesel engine oil meeting ACEA E6/E7 or API CK-4 specifications, with viscosity typically 5W-30 or 10W-40, depending on climate and manufacturer recommendations. Service intervals are typically every 40,000 to 60,000 kilometers (25,000 to 37,000 miles) or annually, whichever comes first. Harsh operating conditions may necessitate more frequent changes.
- Fuel Filter Replacement: Critical for protecting the common rail injection system. Replacement is typically recommended every 40,000 to 60,000 kilometers (25,000 to 37,000 miles), alongside the oil change. Always use genuine or OEM-equivalent filters.
- Air Filter Replacement: A clean air filter is vital for engine breathing and fuel efficiency. Inspection should occur at every service, with replacement every 60,000 to 80,000 kilometers (37,000 to 50,000 miles) or more frequently in dusty environments.
- Coolant Flush & Replacement: The cooling system should be flushed and refilled with an appropriate long-life OAT (Organic Acid Technology) coolant every 200,000 to 250,000 kilometers (125,000 to 155,000 miles) or every 3-5 years.
- Valve Adjustment: Periodic valve lash inspection and adjustment may be required, typically every 200,000 to 250,000 kilometers (125,000 to 155,000 miles) to ensure optimal engine breathing and prevent premature wear.
- DPF Regeneration & Cleaning: Monitor DPF pressure differential and ensure active and passive regeneration cycles occur. Professional cleaning or replacement may be necessary around 400,000 to 600,000 kilometers (250,000 to 370,000 miles) depending on usage patterns.
Conclusion
The IVECO F4HFE613S engine stands as a testament to IVECO’s engineering prowess in the heavy-duty diesel segment. Its robust design, powerful output, and advanced fuel injection and emissions technologies make it a highly capable and efficient powerplant for commercial applications. For a used vehicle buyer, an engine with a well-documented service history, indicating regular and professional maintenance, represents a safe and reliable choice. While potential issues with emissions systems, injectors, and EGR are common across modern diesels, these are generally manageable with proactive maintenance and do not detract from the engine’s fundamental durability. A vehicle equipped with a properly maintained F4HFE613S engine offers excellent long-term operational potential, delivering a strong balance of performance, economy, and expected service life.
