Overview & Design Features

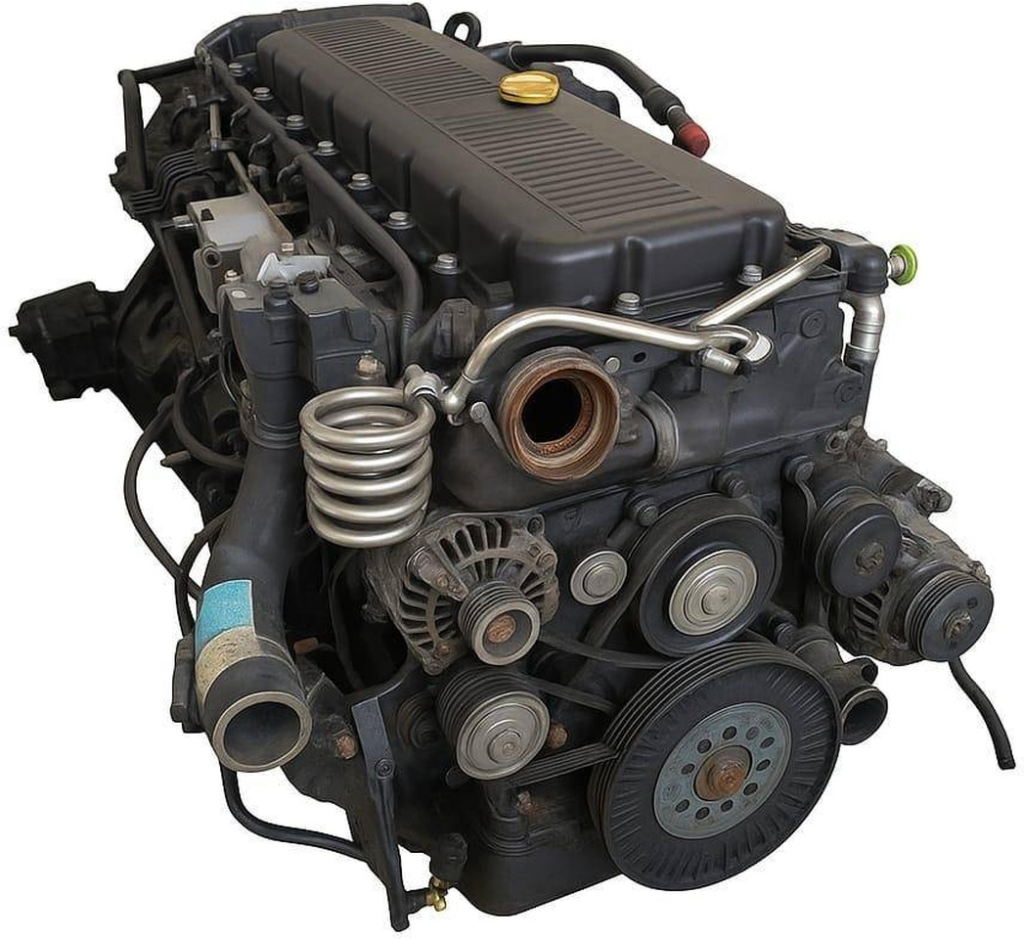

The IVECO F3HFE611 engine is a prominent member of IVECO’s Cursor 9 series, renowned for its robust performance and efficiency in commercial vehicle applications. Manufactured by IVECO, a global leader in commercial vehicles, this inline six-cylinder diesel engine features a displacement of 8.7 liters (8700 cc). It represents a critical powerplant in medium to heavy-duty trucks, buses, and specialized industrial equipment, contributing significantly to the operational capabilities of various transport and logistics sectors since its introduction as a Euro VI compliant unit.
Engineered for endurance and demanding workloads, the F3HFE611 utilizes a high-strength cast iron cylinder block paired with an aluminum alloy cylinder head to optimize weight and thermal management. Fuel delivery is managed by a sophisticated Common Rail direct injection system, allowing for precise fuel atomization and combustion control, enhancing both power output and fuel economy. This engine integrates a variable geometry turbocharger (VGT) to ensure optimal boost pressure across the entire RPM range, alongside an advanced exhaust gas recirculation (EGR) system, selective catalytic reduction (SCR) with AdBlue, and a diesel particulate filter (DPF) to meet stringent Euro VI emissions standards.
The IVECO F3HFE611 engine has been widely deployed across a range of IVECO vehicles. Its primary applications include various configurations of the IVECO Eurocargo (medium-duty trucks) and specific versions of the IVECO Stralis (heavy-duty long-haul trucks). Furthermore, this engine is a common choice for public transport vehicles such as the IVECO Urbanway and IVECO Crossway buses, offering reliable power for passenger transport services. It is also found in certain industrial and off-road machinery under the CNH Industrial umbrella, demonstrating its versatility and widespread adoption in commercial and industrial sectors.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 8700 |
| Max Power (hp (kW) @ RPM) | 360 (265) @ 2200 |
| Max Torque (Nm (kg*m) @ RPM) | 1500 (153) @ 1200-1600 |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Varies significantly by load and application |
| Engine Type | Inline 6-cylinder, Turbocharged Diesel |
| Compression Ratio | 17.0:1 |
| Cylinder Bore (mm) | 117 |
| Piston Stroke (mm) | 135 |
| Valvetrain | SOHC, Hydraulic Lash Adjusters |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Variable Geometry Turbocharger (VGT), EGR, SCR with AdBlue, DPF (Euro VI Compliant) |
Common Problems & Reliability
The IVECO F3HFE611 engine, while generally robust, exhibits certain typical vulnerabilities associated with modern heavy-duty diesels. A primary area of concern can be the exhaust gas recirculation (EGR) system, including the cooler and valve, which are susceptible to soot buildup and clogging, potentially leading to reduced engine efficiency, increased emissions, and fault codes. Failures in the EGR system often necessitate costly cleaning or replacement.
Another common issue involves the diesel particulate filter (DPF). In applications with frequent short trips or insufficient regeneration cycles, the DPF can become prematurely clogged, leading to restricted exhaust flow and engine derating. This requires forced regeneration or, in severe cases, DPF cleaning or replacement. Furthermore, components of the Common Rail fuel injection system, such as injectors or the high-pressure fuel pump, can experience wear over high mileage, affecting fuel atomization and overall engine performance. Given proper maintenance and adherence to service schedules, the IVECO F3HFE611 engine can reliably achieve service lives exceeding 1,000,000 kilometers before requiring a major overhaul.
Maintenance Tips & Service Schedule
Optimal performance and longevity of the IVECO F3HFE611 engine are dependent on strict adherence to a comprehensive maintenance schedule. Key maintenance actions include:
- Engine Oil and Filter Changes: Utilize high-quality, heavy-duty diesel engine oil conforming to API CK-4 or CJ-4 specifications, with viscosity typically in the range of 10W-40 or 5W-30 (depending on climate and duty cycle). Intervals typically range from 60,000 to 100,000 kilometers or annually, whichever comes first, though severe duty cycles may necessitate shorter intervals.
- Fuel Filter Replacement: Replace fuel filters, including both primary and secondary filters, at regular intervals, typically every 40,000 to 60,000 kilometers, to protect the sensitive Common Rail injection system from contaminants.
- Air Filter Replacement: Inspect and replace the engine air filter as per manufacturer specifications, generally every 60,000 to 80,000 kilometers, or more frequently in dusty environments.
- Coolant System Service: Perform coolant flushes and refills using heavy-duty, long-life coolants (OAT or HOAT specifications) every 250,000 kilometers or every 4 years to prevent corrosion and maintain optimal engine operating temperatures.
- AdBlue/DEF System: Regularly monitor and replenish the AdBlue/Diesel Exhaust Fluid (DEF) tank to ensure continuous SCR system operation and Euro VI compliance.
- Valve Lash Adjustment: While the F3HFE611 typically employs hydraulic lash adjusters that do not require periodic manual adjustment, it is prudent to consult the service manual for specific inspection recommendations.
- Turbocharger Inspection: Periodically inspect the variable geometry turbocharger for excessive shaft play or unusual noises, indicating potential wear.
Conclusion
The IVECO F3HFE611 engine stands as a testament to robust engineering, delivering reliable power and efficiency for demanding commercial applications. Its inline six-cylinder configuration, coupled with advanced fuel injection and emissions control technologies, makes it a capable workhorse. For a used vehicle buyer, this engine represents a safe and reliable choice, provided a comprehensive service history is available, demonstrating adherence to manufacturer-recommended maintenance schedules. Consistent oil and filter changes, coupled with attention to the EGR and DPF systems, are paramount for maximizing its extensive service life and ensuring long-term operational costs remain manageable. With proper care, the F3HFE611 offers enduring performance in heavy-duty environments.
