Overview & Design Features

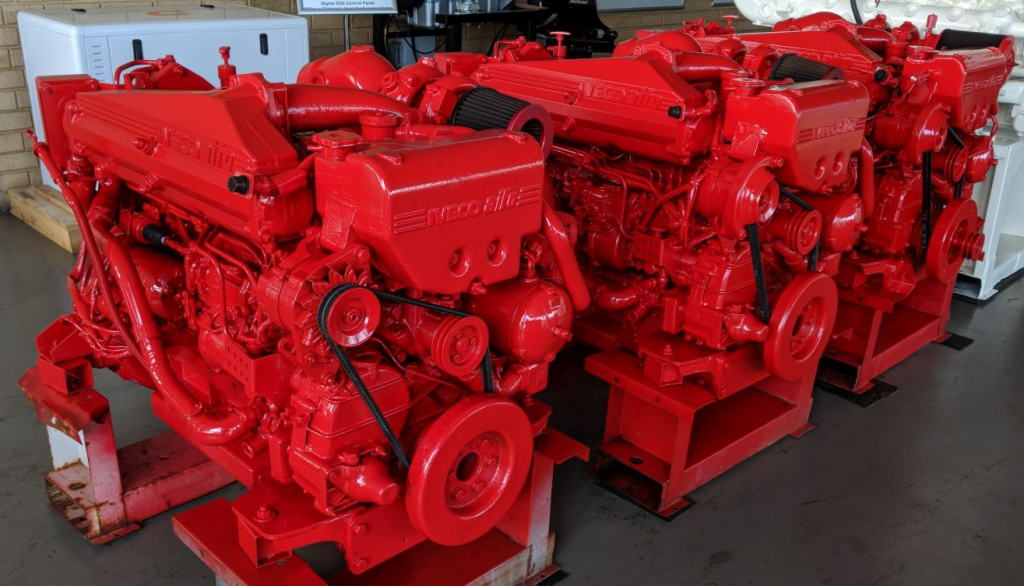

The IVECO FPT 8061 SRM 30.10 Marine is a robust and widely utilized diesel engine, forming part of IVECO FPT’s esteemed 8000 series, specifically engineered for demanding marine applications. Manufactured by IVECO, a global leader in commercial vehicles and industrial engines, this power unit is renowned for its reliability, durability, and consistent power delivery in harsh saltwater environments. With a displacement of 5.861 liters, this inline six-cylinder engine has been a staple in various marine vessels, upholding a reputation for operational longevity and efficiency within its class. Its design emphasizes straightforward maintenance and dependable performance, contributing significantly to its historical presence in the workboat and pleasure craft sectors.
At its core, the 8061 SRM 30.10 features a heavy-duty cast-iron cylinder block and cylinder head, designed to withstand the high pressures and temperatures inherent in diesel combustion. Fuel delivery is managed via a mechanical direct injection system, ensuring precise fuel metering and robust performance, characteristic of engines from its production era. The valvetrain typically employs an Overhead Valve (OHV) pushrod design, known for its simplicity and reliability, contributing to the engine’s long service life. Induction is boosted by a turbocharger, often coupled with an intercooler or aftercooler, to maximize air density for improved combustion efficiency and power output across the operational RPM range, which is critical for marine propulsion.
The IVECO FPT 8061 SRM 30.10 Marine engine has been widely deployed in a diverse array of marine applications. It commonly powered various types of workboats, including fishing trawlers, patrol boats, pilot vessels, and utility crafts, where its steadfast performance was essential. Furthermore, it found extensive use in displacement and semi-displacement hull pleasure craft, such as medium-sized yachts and cabin cruisers, providing reliable propulsion for recreational boating. Specific production years for this exact iteration spanned from the late 1980s through the early 2000s, with various revisions and power ratings falling under the broader 8061 SRM family before the introduction of more advanced electronic common rail systems.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 5861 |
| Max Power (hp (kW) @ RPM) | 300 hp (220 kW) @ 2800 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 980 Nm (99.9 kg*m) @ 1600 RPM |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to manufacturer’s technical documentation (typically stated in l/hr for marine applications) |
| Engine Type | Inline 6-Cylinder, Turbocharged, Aftercooled, Direct Injection Diesel |
| Compression Ratio | 16.5:1 |
| Cylinder Bore (mm) | 104 |
| Piston Stroke (mm) | 115 |
| Valvetrain | OHV (Overhead Valve) |
| Valves per Cylinder | 2 |
| Additional Info | Mechanical Injection Pump, Freshwater Cooled, Seawater Heat Exchanger |
Common Problems & Reliability
- Cooling System Corrosion: Given its marine application, the cooling system is susceptible to corrosion, particularly in the raw water circuit and the heat exchanger. Neglecting anode replacement or proper flushing procedures can lead to blockages and component failure, resulting in overheating. Regular inspection and replacement of sacrificial anodes, along with diligent flushing with freshwater after saltwater use, are critical to mitigate this issue.
- Fuel System Wear: As an older mechanical direct injection diesel, the fuel injectors and injection pump can experience wear over extended operational hours. This can manifest as reduced power, increased fuel consumption, rough running, or excessive smoke. Quality fuel filtration and timely replacement of fuel filters are paramount in extending the life of these components. Rebuilding or replacing the injection pump and injectors becomes necessary after significant operational hours.
- Turbocharger Degradation: The turbocharger, while robust, is subject to high temperatures and corrosive marine air. Bearing wear, corrosion of the turbine housing, or impeller damage can occur, leading to reduced boost pressure, power loss, and whistling noises. Regular inspection of the compressor wheel for damage and ensuring proper oil supply to the turbocharger are key preventative measures.
Under diligent maintenance and appropriate operating conditions, the IVECO FPT 8061 SRM 30.10 Marine engine is capable of delivering an excellent service life. It is realistically expected to operate for 8,000 to 12,000 hours before requiring a major overhaul, such as piston/liner replacement or crankshaft bearing service. Some well-maintained examples in lighter-duty applications have been known to exceed 15,000 hours.
Maintenance Tips & Service Schedule
Maintaining the IVECO FPT 8061 SRM 30.10 Marine requires adherence to a strict schedule to ensure its longevity and reliability.
- Engine Oil and Filter: Replace engine oil and filter every 200-250 operating hours or annually, whichever comes first. Use high-quality API CI-4 or CJ-4 rated diesel engine oil, typically in a 15W-40 viscosity, suitable for marine diesel engines.
- Fuel Filters: Replace primary (water separator) and secondary fuel filters every 200-250 operating hours or annually. Inspect and drain the water separator bowl frequently, especially after refueling.
- Air Filter: Inspect the air filter element every 250 hours and replace as necessary, or at least annually. Operating in dusty or humid environments may necessitate more frequent replacement.
- Cooling System:
- Inspect and replace sacrificial anodes in the heat exchanger and block every 100-150 operating hours or every six months.
- Flush the raw water cooling system with freshwater after each use in saltwater.
- Change engine coolant (antifreeze/coolant mixture) every 2-3 years or 1000 hours, ensuring it meets manufacturer specifications for corrosion protection.
- Inspect raw water impeller every 250 hours or annually and replace if signs of wear or cracking are present. Carry a spare.
- Valve Lash Adjustment: Inspect and adjust valve clearances every 1000 operating hours to maintain optimal engine performance and prevent premature wear.
- Belts and Hoses: Inspect all drive belts (alternator, freshwater pump) and coolant/fuel hoses every 250 hours or annually. Replace any showing signs of cracking, fraying, or excessive wear.
- Turbocharger: Inspect for excessive shaft play and ensure no oil leaks or obstructions in the intake/exhaust paths every 500 hours.
- Injection System: While not a routine replacement, fuel injectors should be tested and serviced by a specialist every 2000-3000 operating hours if performance degradation is observed.
Conclusion
The IVECO FPT 8061 SRM 30.10 Marine engine stands as a testament to robust engineering from an era known for mechanical reliability. For a used vessel buyer, this engine generally represents a safe and dependable choice, provided its maintenance history is clear and adherence to service schedules has been consistent. Its mechanical nature makes it relatively straightforward for experienced marine technicians to diagnose and repair, without requiring complex electronic tools. While its fuel efficiency may not match modern common rail diesels, its impressive durability, ample torque, and proven track record make it a highly desirable power plant for those prioritizing long-term service and reliability in marine environments. A thorough pre-purchase inspection by a qualified marine surveyor is always recommended to assess the engine’s current condition and expected remaining service life.
