Overview & Design Features

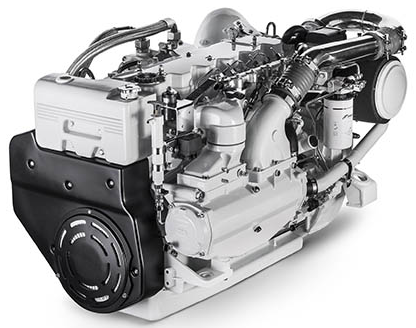

The IVECO FPT NEF N67 150 Diesel Marine engine represents a robust and efficient power unit engineered by FPT Industrial (Fiat Powertrain Technologies), a brand under the IVECO Group renowned for its powertrain solutions across diverse applications. This particular variant, the N67 150, is a 6.7-liter, inline six-cylinder turbodiesel engine specifically designed and optimized for marine environments. It belongs to the NEF (New Engine Family) series, which has established a strong reputation for reliability, performance, and durability in both land-based and marine industrial sectors since its inception. Its historical significance lies in offering a compact yet powerful solution for a wide range of marine vessels, from pleasure craft to workboats, demonstrating FPT’s commitment to specialized, high-performance diesel propulsion.
Engineered for sustained operation and efficiency, the N67 150 features a sturdy cast iron cylinder block and cylinder head, ensuring structural rigidity and thermal stability essential for marine applications. Fuel delivery is managed by a sophisticated Common Rail direct injection system, which precisely controls fuel atomization and injection timing, contributing to optimal combustion, reduced emissions, and impressive fuel efficiency. The valvetrain typically incorporates a single overhead camshaft (SOHC) design with four valves per cylinder, facilitating efficient gas exchange and enhancing volumetric efficiency across the engine’s operational range. This design philosophy emphasizes longevity and consistent performance, critical attributes for maritime propulsion systems.
While primarily a marine propulsion unit, the underlying NEF N67 engine architecture sees extensive use in various heavy-duty applications. The FPT NEF N67 150 Diesel Marine engine is officially deployed in numerous types of marine vessels, including recreational motor yachts, displacement hull fishing boats, small commercial workboats, and as auxiliary power units on larger ships. Production years and specific vessel models vary widely depending on the boat builder integrating the engine, but the core 150 hp marine variant has been a consistent offering within FPT Industrial’s marine portfolio for a significant period, underscoring its proven design and widespread adoption.
Technical Specifications
| Displacement (cc) | 6728 |
|---|---|
| Max Power (hp (kW) @ RPM) | 150 (110) @ 2300 |
| Max Torque (Nm (kg*m) @ RPM) | 620 (63.2) @ 1500 |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to manufacturer’s technical documentation (variable by marine load profile) |
| Engine Type | Inline 6-cylinder, Turbodiesel |
| Compression Ratio | 17.5:1 |
| Cylinder Bore (mm) | 104 |
| Piston Stroke (mm) | 132 |
| Valvetrain | SOHC |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Water-cooled (Heat Exchanger) |
Common Problems & Reliability
The FPT NEF N67 150 Diesel Marine engine is generally regarded for its robust construction and reliability. However, like any complex machinery operating in demanding conditions, certain issues can arise. One common area for attention involves the fuel injection system components, particularly injectors and the high-pressure fuel pump. Diesel fuel quality and proper filtration are paramount; contaminated or poor-quality fuel can lead to premature wear or clogging of injectors, resulting in rough running, reduced power, and increased fuel consumption. Another common concern is associated with the marine cooling system. Seawater pumps (raw water pumps) and heat exchangers are susceptible to wear, corrosion, and fouling from marine growth or debris. Impeller degradation in the raw water pump can lead to overheating, while blockages in the heat exchanger reduce cooling efficiency. Regular inspection and cleaning of these components are crucial. Finally, turbocharger health requires monitoring. While generally reliable, persistent high-load operation without proper cool-down can eventually stress bearings and seals, leading to reduced boost pressure and potential oil leaks. The realistic expected service life for a properly maintained FPT NEF N67 150 Diesel Marine engine, before requiring a major overhaul, typically ranges from 10,000 to 15,000 hours of operation, equivalent to many years of typical marine use.
Maintenance Tips & Service Schedule
Proactive maintenance is key to maximizing the lifespan and performance of the IVECO FPT NEF N67 150 Diesel Marine engine. Engine oil and filter changes are critical, recommended every 250 operating hours or annually, whichever comes first. High-quality marine-grade engine oil with viscosity typically specified as 15W-40 meeting API CI-4/CJ-4 standards should be used. Fuel filters (primary and secondary) must be changed every 250-500 hours or annually, emphasizing the importance of clean fuel. The raw water pump impeller should be inspected annually and replaced every 2-3 years, or more frequently if signs of wear are observed. The engine coolant (freshwater side) requires checking and topping up regularly, with a complete flush and replacement typically recommended every 1000 hours or every 3-5 years, using an extended-life diesel engine coolant. Air filters should be inspected regularly and replaced as needed, generally every 500 hours. The heat exchanger should be inspected for blockages and cleaned periodically, typically every 1000-2000 hours, especially if operating in silty or biologically active waters. All belts (alternator, seawater pump) must be checked for tension and wear at every service interval and replaced if cracks or fraying are evident. Regular inspection of exhaust system components, hose clamps, and electrical connections is also highly advised.
Conclusion
The IVECO FPT NEF N67 150 Diesel Marine engine stands as a highly capable and generally reliable power plant for marine applications. Its robust construction, common rail technology, and proven design make it a sound choice for various vessels. For a potential buyer considering a used vessel equipped with this engine, it represents a generally safe and dependable option, provided a comprehensive service history is available and the engine passes a thorough pre-purchase inspection by a qualified marine mechanic. Adherence to a strict maintenance schedule, particularly regarding fuel quality, cooling system integrity, and regular fluid changes, is paramount to ensuring its long-term reliability and performance. When properly cared for, the N67 150 is capable of providing many thousands of hours of trouble-free operation.
