Overview & Design Features

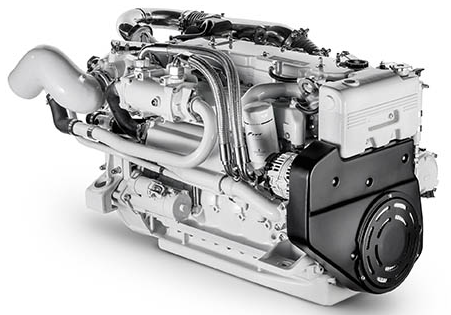

The IVECO FPT NEF N67 220 Diesel Marine engine represents a robust and highly efficient power plant, designed and manufactured by IVECO’s powertrain division, FPT Industrial (Fiat Powertrain Technologies). With a displacement of 6.7 liters and an inline six-cylinder configuration, this turbodiesel engine is a testament to FPT’s long-standing heritage in developing reliable and powerful engines for commercial and industrial applications. Specifically engineered for marine environments, the N67 220 is renowned for its compact design, excellent power-to-weight ratio, and fuel efficiency, making it a popular choice for both propulsion and auxiliary power in a wide range of vessels. Its historical significance lies in its direct lineage from successful truck and industrial engines, adapted and optimized for the unique demands of marine operations.
At its core, the NEF N67 220 features a heavy-duty cast-iron cylinder block and cylinder head, ensuring durability and structural rigidity crucial for sustained high-load operations. Fuel delivery is managed by a sophisticated Common Rail Direct Injection (CRDI) system, which precisely controls fuel atomization and injection timing for optimal combustion, reduced emissions, and improved fuel economy. Air intake is boosted by a high-efficiency turbocharger, often coupled with an intercooler, maximizing volumetric efficiency and power output. The valvetrain typically employs a Single Overhead Camshaft (SOHC) configuration with four valves per cylinder, facilitating excellent gas exchange and engine breathing across the RPM range. These engineering choices collectively contribute to the engine’s characteristic torque delivery and operational smoothness.
This specific iteration of the N67 engine, the 220 Diesel Marine, is primarily deployed in various marine applications. Its versatility allows it to power recreational vessels such as motor yachts and cruisers, as well as light-duty commercial boats including fishing trawlers, patrol boats, and workboats. It is often found as a primary propulsion unit or as part of a twin-engine setup. The engine’s production is ongoing, with continuous updates to meet evolving emissions standards and performance demands, solidifying its position as a contemporary and relevant marine power solution.
Technical Specifications
| Displacement | 6728 cc (6.7 L) |
| Max Power | 220 hp (162 kW) @ 2800 RPM |
| Max Torque | 670 Nm (68.3 kg*m) @ 1600 RPM |
| Fuel Type | Diesel |
| Fuel Consumption | Refer to manufacturer’s technical documentation |
| Engine Type | Inline 6-cylinder, 4-stroke, water-cooled, turbocharged intercooled diesel |
| Compression Ratio | 16.5:1 |
| Cylinder Bore | 104 mm |
| Piston Stroke | 132 mm |
| Valvetrain | SOHC |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Wastegate Turbocharger, Heat Exchanger Cooling System, IMO MARPOL Tier II Emissions Compliant, Dry Weight approx. 620 kg |
Common Problems & Reliability
The IVECO FPT NEF N67 220 Diesel Marine engine is generally regarded for its robustness; however, like all complex machinery, specific areas warrant attention. One common point of concern for modern common rail diesel engines is the fuel injection system. Contaminated fuel, often from older tanks or improper refueling, can lead to premature wear or blockage of injectors and the high-pressure pump. Regular inspection of fuel filters and ensuring fuel quality are critical preventative measures.
Another area requiring vigilance is the turbocharger. While durable, issues can arise from inadequate lubrication, often caused by extended oil change intervals or using incorrect oil viscosity. Overheating due to insufficient cooling after sustained high-load operation can also stress turbocharger components. Furthermore, the marine environment introduces unique challenges to the cooling system. Wear of the raw water pump impeller and potential corrosion or blockage within the heat exchanger are typical high-hour failures if preventative maintenance is neglected. Proper raw water system maintenance, including anode replacement, is essential.
Under proper operating conditions and with diligent maintenance, the NEF N67 series engines are capable of providing exceptional longevity. A realistically expected service life before requiring a major overhaul, such as piston or bearing replacement, often exceeds 10,000 to 15,000 operating hours. Some well-maintained units in lighter duty cycles have even surpassed these figures, attesting to the fundamental design’s durability.
Maintenance Tips & Service Schedule
Maintaining the IVECO FPT NEF N67 220 Diesel Marine engine strictly according to manufacturer guidelines is paramount for maximizing its lifespan and ensuring reliable operation. Crucial maintenance rules stem from the engine’s fundamental requirements and the demanding marine environment.
- Oil and Filter Changes: Engine oil and oil filter replacement is recommended every 200-250 operating hours or annually, whichever occurs first. Use a high-quality diesel engine oil meeting API CI-4/CJ-4 or ACEA E7/E9 specifications, typically a 15W-40 viscosity, suitable for modern common rail engines.
- Fuel System Maintenance: Fuel filters (primary and secondary) should be replaced every 200-250 operating hours or annually. Regular draining of water separators is also critical to prevent water ingress into the fuel system. Maintaining strict fuel quality and cleanliness standards cannot be overstated.
- Cooling System: The raw water pump impeller should be inspected regularly and replaced annually or every 200-300 hours. Zinc anodes in the heat exchanger and elsewhere in the raw water system must be checked and replaced annually to prevent galvanic corrosion. Coolant in the closed-loop system should be checked for level and condition, with a full flush and replacement recommended every 2-3 years using a marine-grade extended-life coolant.
- Air Filter: Inspect the air filter every 250 hours and replace as necessary, or annually. A clean air supply is vital for engine performance and efficiency.
- Valve Clearance: Valve lash adjustment checks are typically recommended every 1000 operating hours to ensure optimal engine breathing and efficiency.
- General Inspection: A thorough visual inspection of hoses, belts, wiring, and fluid levels should be performed before each extended operation and regularly during periods of heavy use.
Conclusion
The IVECO FPT NEF N67 220 Diesel Marine engine stands as a highly capable and generally reliable choice for both recreational and light-commercial marine applications. Its robust design, advanced common rail fuel injection, and proven heritage contribute to strong performance, fuel efficiency, and a respectable service life. For a used vessel buyer, an engine with this pedigree offers significant peace of mind, provided a comprehensive maintenance history is available. Due diligence in pre-purchase inspections should focus on evidence of consistent fluid changes, cooling system integrity, and fuel system cleanliness. With proper care and adherence to a disciplined service schedule, the N67 220 Diesel Marine engine represents a sound investment, delivering durable and efficient power for many years on the water.
