Overview & Design Features

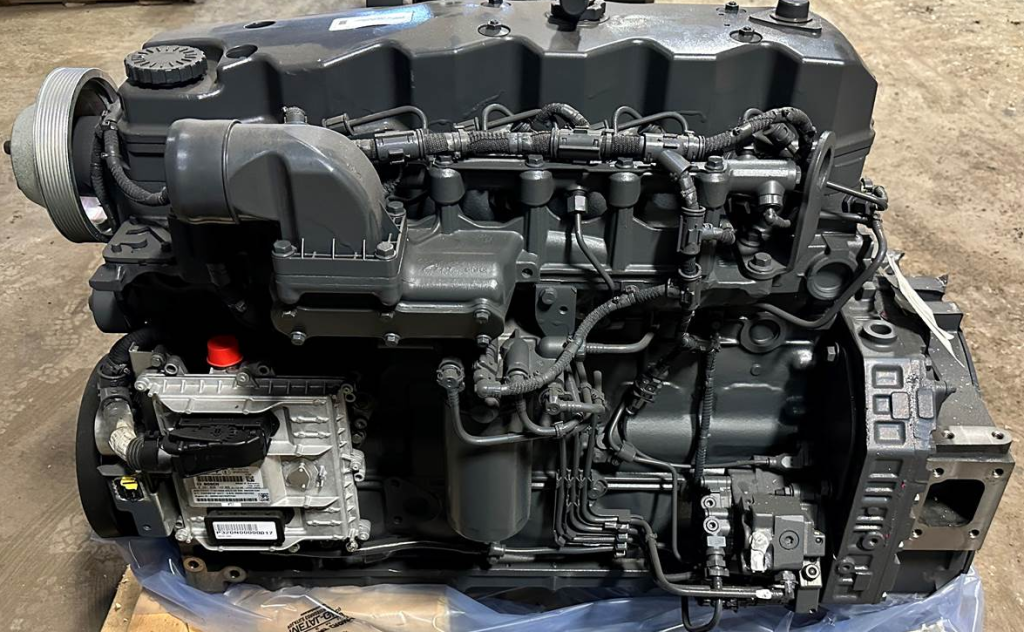

The IVECO F4HFA613N engine is a robust, high-performance diesel powerplant developed by FPT Industrial, the global powertrain brand of CNH Industrial, of which IVECO is a part. This engine belongs to the acclaimed NEF (New Engine Family) series, known for its compact design, efficiency, and reliability across a wide range of commercial and industrial applications. With a displacement of 6.7 liters, the F4HFA613N is configured as an inline six-cylinder unit, a layout traditionally favored in heavy-duty applications for its inherent balance and smooth power delivery. Its historical significance lies in powering a generation of IVECO’s medium-duty vehicles and numerous off-road and industrial machinery, establishing a reputation for durability in demanding operational environments.
Core engineering features of the F4HFA613N include a cast-iron cylinder block and cylinder head, providing exceptional structural rigidity and thermal stability essential for prolonged high-load operation. Fuel delivery is managed by a sophisticated Common Rail Direct Injection (CRDI) system, which precisely controls fuel atomization and injection timing across all engine speeds and loads, optimizing combustion efficiency and reducing emissions. Forced induction is achieved through a variable geometry turbocharger (VGT), enhancing throttle response and maximizing torque output across a broad RPM range. The valvetrain typically employs a single overhead camshaft (SOHC) design with four valves per cylinder, a configuration that promotes efficient gas flow for improved power and fuel economy.
The F4HFA613N engine has been primarily deployed in various IVECO commercial vehicles, particularly within the Eurocargo medium-duty truck series, appearing in different power ratings and emission standards (e.g., Euro V, Euro VI) depending on the production year and market. Beyond IVECO trucks, this engine variant also found applications in other CNH Industrial products, including agricultural machinery from Case IH and New Holland, construction equipment from Case and New Holland Construction, and various bus chassis, marine propulsion units, and stationary power generation sets, typically spanning production years from the mid-2000s onwards.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 6700 |
| Max Power (hp (kW) @ RPM) | 280 (206) @ 2500 |
| Max Torque (Nm (kg*m) @ RPM) | 1000 (102) @ 1250-1950 |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Refer to vehicle-specific application and load conditions |
| Engine Type | Inline 6-cylinder, turbocharged and intercooled |
| Compression Ratio | 17.5:1 |
| Cylinder Bore (mm) | 104 |
| Piston Stroke (mm) | 132 |
| Valvetrain | SOHC, gear-driven |
| Valves per Cylinder | 4 |
| Additional Info | Common Rail Direct Injection, Variable Geometry Turbocharger (VGT), EGR, DPF/SCR (emission-dependent) |
Common Problems & Reliability
While the F4HFA613N is generally considered a highly reliable industrial engine, certain common issues can arise, particularly at high mileage or due to deferred maintenance. One frequent concern involves the exhaust gas recirculation (EGR) system and the diesel particulate filter (DPF). These components, critical for meeting modern emission standards, can experience clogging or malfunction due to extended low-load operation or poor fuel quality, leading to reduced engine performance, increased fuel consumption, and costly repairs. Symptoms often include illuminated warning lights and fault codes related to emissions.
Another area requiring attention is the fuel injection system. The high-pressure common rail components, including injectors and the high-pressure pump, can be susceptible to wear or contamination, especially if fuel filters are not changed regularly or if low-quality fuel is used. Injector issues typically manifest as rough idling, misfires, or reduced power. Finally, the variable geometry turbocharger (VGT) actuator can sometimes fail or stick, impeding the turbocharger’s ability to adjust boost, resulting in noticeable power loss or ‘limp mode’ operation. Regular servicing and genuine parts mitigate these risks.
Under proper care, diligent maintenance, and normal operating conditions, the IVECO F4HFA613N engine has a realistic expected service life exceeding 500,000 kilometers (approximately 300,000 miles) before requiring a major overhaul. Many units in well-maintained fleets have surpassed 750,000 to 1,000,000 kilometers.
Maintenance Tips & Service Schedule
Maintaining the IVECO F4HFA613N engine correctly is paramount for maximizing its longevity and operational efficiency. Adherence to manufacturer-specified service intervals and procedures is critical. The following guidelines are based on typical heavy-duty diesel engine requirements:
- Engine Oil & Filter Change: Recommended every 40,000 to 60,000 kilometers (or annually, whichever comes first) using a high-quality fully synthetic 10W-40 or 5W-30 engine oil meeting ACEA E6/E9 or API CK-4 specifications, depending on the specific engine variant and emissions system.
- Fuel Filter Replacement: Essential to prevent contamination of the common rail system. The primary fuel filter should be replaced every 40,000 kilometers, with a secondary filter (if present) replaced concurrently.
- Air Filter Inspection/Replacement: Inspect during every service interval, replace every 80,000 to 100,000 kilometers, or more frequently if operating in dusty environments.
- Coolant Flush & Replacement: The cooling system should be flushed and refilled with an extended-life coolant (OAT or HOAT type) every 250,000 to 300,000 kilometers, or every 3-5 years. Ensure the coolant meets IVECO’s material compatibility standards.
- Valve Lash Adjustment: Periodically check and adjust valve lash, typically every 200,000 to 250,000 kilometers, to maintain optimal engine breathing and prevent excessive valvetrain wear.
- Timing Gear Inspection: Since this engine features a gear-driven valvetrain, regular inspection of the timing gears for wear or backlash is recommended during major service intervals, usually coinciding with valve adjustments.
- EGR/DPF System Check: Regular diagnostic checks of the emission control system are advised to monitor DPF regeneration cycles and EGR valve operation, preventing premature failures.
Conclusion
The IVECO F4HFA613N engine stands as a testament to FPT Industrial’s expertise in designing robust and efficient diesel powertrains. Its inline-six configuration, common rail injection, and variable geometry turbocharging ensure strong performance and relative fuel efficiency for its class. For a used vehicle buyer, this engine generally represents a safe and reliable choice, provided the vehicle has a documented history of consistent and proper maintenance. The key to its long-term reliability lies in adhering to rigorous service schedules, especially concerning fuel quality, filtration, and monitoring of emission control systems. Neglect in these areas can lead to significant repair costs. With diligent care, the F4HFA613N is capable of delivering many hundreds of thousands of kilometers of dependable service.
