Overview & Design Features

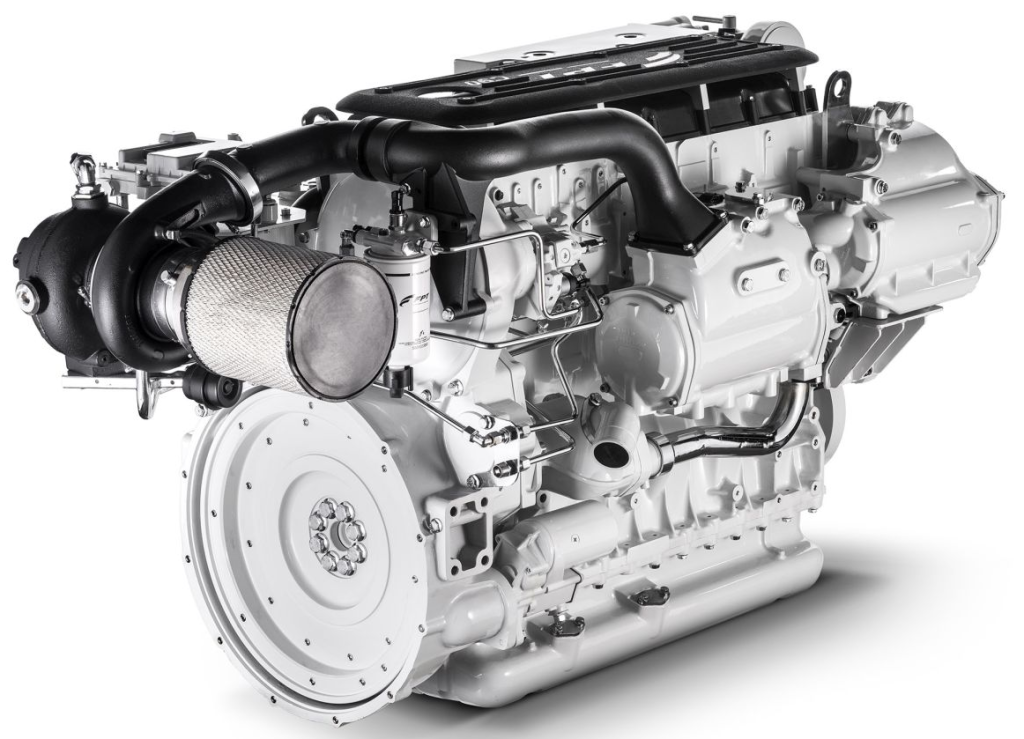

The IVECO FPT Cursor C90 620 Diesel Marine engine represents a pinnacle of modern marine diesel propulsion technology, manufactured by FPT Industrial, a global leader in powertrain solutions and part of the IVECO Group. This robust inline six-cylinder engine boasts an 8.7-liter displacement, meticulously engineered for demanding marine applications. As a cornerstone of FPT’s Cursor series, known for its heavy-duty reliability and performance across various sectors, the C90 620 is specifically tailored to deliver high power output in a compact and durable package suitable for both pleasure and light commercial vessels. Its design emphasizes longevity, fuel efficiency, and compliance with stringent marine emissions regulations, reflecting decades of FPT’s expertise in industrial and marine engine development.
Core engineering features of the C90 620 include a cast iron cylinder block and cylinder head, providing exceptional structural rigidity and heat dissipation crucial for sustained high-load operation in marine environments. Fuel delivery is managed by a sophisticated electronic Common Rail injection system, precisely controlling fuel atomization and timing to optimize combustion efficiency, reduce emissions, and enhance throttle response. This direct injection technology is complemented by a single overhead camshaft (SOHC) valvetrain, actuating four valves per cylinder, which ensures excellent volumetric efficiency. Forced induction is achieved via a wastegate turbocharger, paired with an intercooler, maximizing air density for increased power while maintaining thermal stability. These features combine to offer a broad torque curve, ensuring smooth acceleration and consistent power across the operational RPM range.
The IVECO FPT Cursor C90 620 Diesel Marine engine is widely deployed in a diverse range of marine craft. It serves as a primary propulsion unit for medium-to-large planing and semi-displacement yachts, offering strong performance for cruising and demanding maneuvers. Additionally, its reliability and efficiency make it a favored choice for light commercial applications, including fishing boats, patrol vessels, and passenger ferries, where operational uptime and fuel economy are paramount. Specific vessel models vary by builder, but the C90 620 is generally found in craft requiring power output in the 500-700 horsepower range, spanning production years from its introduction as a high-performance variant within the Cursor 9 line.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 8700 (8.7 L) |
| Max Power (hp (kW) @ RPM) | 620 (456) @ 2500 |
| Max Torque (Nm (kg*m) @ RPM) | 2060 (210) @ 1700 |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Not applicable for marine engines; refer to specific vessel performance data |
| Engine Type | Inline 6-cylinder, Turbocharged, Intercooled, Direct Injection Diesel |
| Compression Ratio | 16.5:1 |
| Cylinder Bore (mm) | 117 |
| Piston Stroke (mm) | 135 |
| Valvetrain | SOHC |
| Valves per Cylinder | 4 |
| Additional Info | Electronic Common Rail, Wastegate Turbocharger, Heat Exchanger Cooling System |
Common Problems & Reliability
The FPT Cursor C90 620 Diesel Marine engine is engineered for high reliability, but like all complex machinery, it has potential weak points under specific conditions or extended service. One common concern for high-performance marine diesels is the fuel system; contaminated or poor-quality fuel can lead to premature wear of the high-pressure fuel pump and clogging of the sophisticated Common Rail injectors. This can manifest as reduced power, rough running, or increased fuel consumption. Another area requiring vigilant attention is the turbocharger, which operates under extreme heat and rotational speeds. Inadequate cooling system maintenance or abrupt engine shutdowns after high-load operation can accelerate turbo bearing wear or lead to coking, eventually resulting in turbocharger failure.
Given the marine environment, the cooling system components, particularly the heat exchanger and raw water pump, are susceptible to corrosion and wear from saltwater ingress or cavitation. Impeller degradation and blockages within the heat exchanger can lead to overheating, which is detrimental to engine longevity. Electrical and sensor failures, though less common, can also occur due to the corrosive and humid marine atmosphere. With proper preventative maintenance and adherence to manufacturer service schedules, the FPT Cursor C90 620 is designed to achieve a realistic service life of 8,000 to 12,000 hours before requiring a major overhaul. Instances of engines exceeding 15,000 hours are not uncommon when diligently maintained.
Maintenance Tips & Service Schedule
Maintaining the IVECO FPT Cursor C90 620 Diesel Marine engine correctly is paramount to achieving its maximum service life and ensuring reliable operation. Engine oil and filter changes are critical; these should be performed every 250-500 operating hours or annually, whichever comes first, using a high-quality marine-grade diesel engine oil with an API classification of CI-4 or CJ-4, typically a SAE 15W-40 viscosity. Fuel filters (primary and secondary) and water separators must be inspected and drained regularly, with replacements recommended every 250-500 hours to prevent fuel system contamination.
The raw water pump impeller should be inspected annually or every 200 hours and replaced if any signs of wear or cracking are present. The engine’s cooling system requires attention; the freshwater coolant mixture, typically a 50/50 blend of marine-specific antifreeze/coolant and distilled water, should be checked annually, and a full flush and refill is generally recommended every 2 to 3 years. Zinc anode replacements (if applicable to the specific installation) should occur annually to protect against galvanic corrosion. Air filters require inspection every 250 hours and replacement as needed, while drive belts should be checked for tension and wear at similar intervals. The valvetrain on this SOHC design typically utilizes hydraulic lash adjusters, minimizing the need for frequent valve clearance checks, but regular inspection of the exhaust manifold and turbocharger for leaks or corrosion is advisable.
Conclusion
The IVECO FPT Cursor C90 620 Diesel Marine engine stands out as a highly capable and reliable power unit for a range of marine applications. Its robust design, advanced Common Rail fuel system, and high-quality construction underpin its reputation for durability and efficiency. For a used vessel buyer, this engine represents a generally safe and dependable choice, provided there is a comprehensive service history confirming diligent adherence to maintenance schedules. Instances of neglected maintenance or extended periods of inactivity can lead to costly repairs, particularly concerning fuel system integrity and cooling components. However, with proper care, the C90 620 offers excellent long-term performance and a strong return on investment for discerning marine enthusiasts and commercial operators alike.
