Overview & Design Features

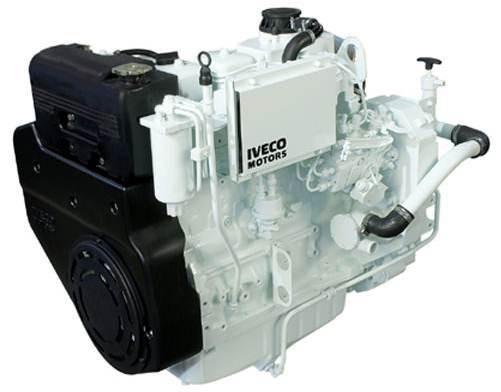

The IVECO FPT NEF N45 100 Diesel Marine engine represents a robust and highly adaptable power solution within the vast portfolio of FPT Industrial, a brand of Iveco Group. Part of the renowned NEF (New Engine Family) series, this particular variant, designated “100”, indicates a nominal power output often referring to 100 kW (approximately 136 horsepower). It is a 4.5-liter, inline four-cylinder, turbocharged diesel engine engineered specifically for various marine applications, ranging from pleasure craft to light commercial vessels. The NEF family has garnered a reputation for its reliability, fuel efficiency, and compact design, making it a popular choice for manufacturers requiring durable and compliant propulsion systems.
At its core, the NEF N45 100 features a heavy-duty cast iron cylinder block and cylinder head, engineered to withstand the demanding conditions of continuous marine operation. Fuel delivery is managed by a sophisticated Common Rail Direct Injection (CRDI) system, which precisely controls fuel atomization and injection timing, optimizing combustion efficiency and reducing emissions. This engine utilizes a two-valve-per-cylinder configuration driven by a Single Overhead Camshaft (SOHC) valvetrain, balancing simplicity with robust performance. Forced induction is provided by a wastegate turbocharger, ensuring responsive power delivery across the engine’s operational range, crucial for marine maneuvers and maintaining speed in varying sea conditions.
The FPT NEF N45 100 Diesel Marine engine is primarily deployed in pleasure boats such as cruisers, cabin boats, and yachts requiring reliable propulsion for displacement or semi-displacement hull forms. It also finds application in light commercial vessels, including fishing boats, small tugs, and passenger ferries, where its durability and relatively low operating costs are advantageous. While specific model year ranges can vary depending on the boat builder, this engine platform has been consistently produced and integrated into various marine platforms from the early 2000s onwards, often updated to meet evolving emissions standards and performance requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement (cc) | 4500 |
| Max Power (hp (kW) @ RPM) | 136 hp (100 kW) @ 2300 – 2500 RPM |
| Max Torque (Nm (kg*m) @ RPM) | 450 – 500 Nm @ 1200 – 1500 RPM |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | Not applicable for marine applications; refer to manufacturer’s consumption curves (l/h) |
| Engine Type | Inline 4-cylinder, Turbocharged Diesel |
| Compression Ratio | Approximately 17.5:1 |
| Cylinder Bore (mm) | 104 |
| Piston Stroke (mm) | 132 |
| Valvetrain | SOHC (Single Overhead Camshaft) |
| Valves per Cylinder | 2 |
| Additional Info | Common Rail Direct Injection (CRDI), Wastegate Turbocharger |
Common Problems & Reliability
The IVECO FPT NEF N45 100 Diesel Marine engine is generally regarded for its robustness, but certain issues can arise over its operational life. One common concern for modern common rail diesel engines is the potential for injector failure or clogging, often exacerbated by inconsistent fuel quality or inadequate fuel filtration. This can lead to rough running, reduced power, increased smoke, and poor fuel economy. Another area susceptible to wear is the turbocharger, particularly its bearings, which can deteriorate due to insufficient oil supply, extended high-load operation, or improper shutdown procedures. Signs of turbocharger wear include excessive oil consumption, blue smoke from the exhaust, and a whining noise.
High-pressure fuel pump (HPFP) issues can also occur, though less frequently, typically due to fuel contamination or component fatigue. Failures of the HPFP can lead to significant engine damage if metal particles contaminate the fuel system. Maintaining strict fuel cleanliness and using appropriate fuel additives are crucial preventative measures. With proper maintenance, including adherence to service schedules and the use of quality parts and fluids, the IVECO FPT NEF N45 100 Diesel Marine engine can achieve an impressive service life of 8,000 to 15,000 operational hours before requiring a major overhaul, demonstrating its inherent durability in marine environments.
Maintenance Tips & Service Schedule
Maintaining the IVECO FPT NEF N45 100 Diesel Marine engine rigorously is paramount for ensuring its longevity and reliable performance. Engine oil and oil filter changes are critical and should be performed every 200-250 operational hours or annually, whichever comes first. The manufacturer typically recommends using a high-quality diesel engine oil, such as a synthetic or semi-synthetic 15W-40 or 10W-30 API CI-4/CJ-4 rated oil, suitable for turbocharged diesel engines. Fuel filters, both primary (racor) and secondary (engine-mounted), should be replaced at similar intervals or more frequently if operating with questionable fuel quality to prevent common rail system issues.
The cooling system requires attention, with coolant flushes and replacements typically recommended every 2 years or 1000 hours, using an appropriate marine-specific long-life coolant. Zinc anodes, vital for preventing galvanic corrosion in marine engines, must be inspected every 100 hours or monthly and replaced as soon as significant degradation is observed. The timing belt (if applicable, though many NEF engines use gears or chains) should be inspected according to manufacturer guidelines and replaced at intervals typically ranging from 1000-2000 hours or 5-7 years. Regular inspection of belts, hoses, and electrical connections also contributes significantly to preventative maintenance.
Conclusion
The IVECO FPT NEF N45 100 Diesel Marine engine stands as a highly dependable and robust power plant for a variety of marine applications. Its proven NEF architecture, combined with modern common rail technology, delivers a good balance of power, efficiency, and reliability. For a used vessel buyer, this engine generally represents a safe and practical choice, provided a comprehensive service history is available and a thorough pre-purchase inspection is conducted by a qualified marine mechanic. While vigilance regarding fuel quality and adherence to strict maintenance schedules are essential, the N45 100’s inherent durability makes it a solid investment for long-term marine propulsion.
