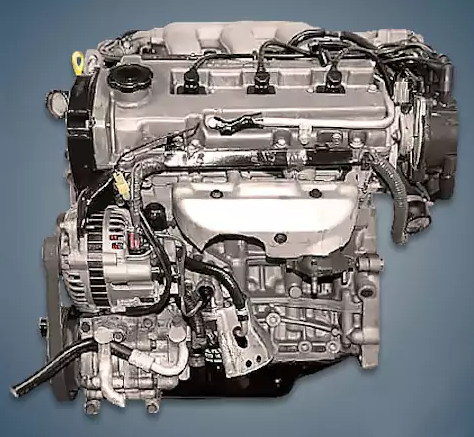

From 1992 to 2002, the company’s factories produced the 2.0-liter V6 Mazda KF-DE engine, which was installed on European versions of well-known models like the 323, Xedos 6, and Xedos 9. For the Japanese market, cars with index KF-ZE were modified to produce 160–170 horsepower.
K8-DE, K8-ZE, KF-ZE, KJ-ZEM, KL-DE, KL-G4, and KL-ZE are all members of the K-engine family.
The engine was mounted on:
- Mazda 323 BA in 1994 – 1998;
- Mazda Xedos 6 CA in 1992 – 1999;
- Mazda Xedos 9 TA in 1992 – 2002.
Specifications
| Production years | 1992-2002 |
| Displacement, cc | 1995 |
| Fuel system | distributed injection |
| Power output, hp | 140 – 145 |
| Torque output, Nm | 180 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 78 |
| Piston stroke, mm | 69.6 |
| Compression ratio | 9.5 |
| Features | DOHC, VRIS |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Mazda Xedos 6 1995) — city — highway — combined |
10.5 7.1 8.8 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 175 (with attachments) |
Disadvantages of the Mazda KF-DE engine
Keep an eye on the cooling system because this aluminum block is terrified of overheating;
These power units frequently start using oil after 100–150 thousand runs;
There are lubricant leaks from beneath the valve covers at roughly the same runs;
The timing belt shifts every 80,000 kilometers, but the valves hardly ever bend when it breaks;
Hydraulic lifters can travel up to 50,000 kilometers using subpar oil.
